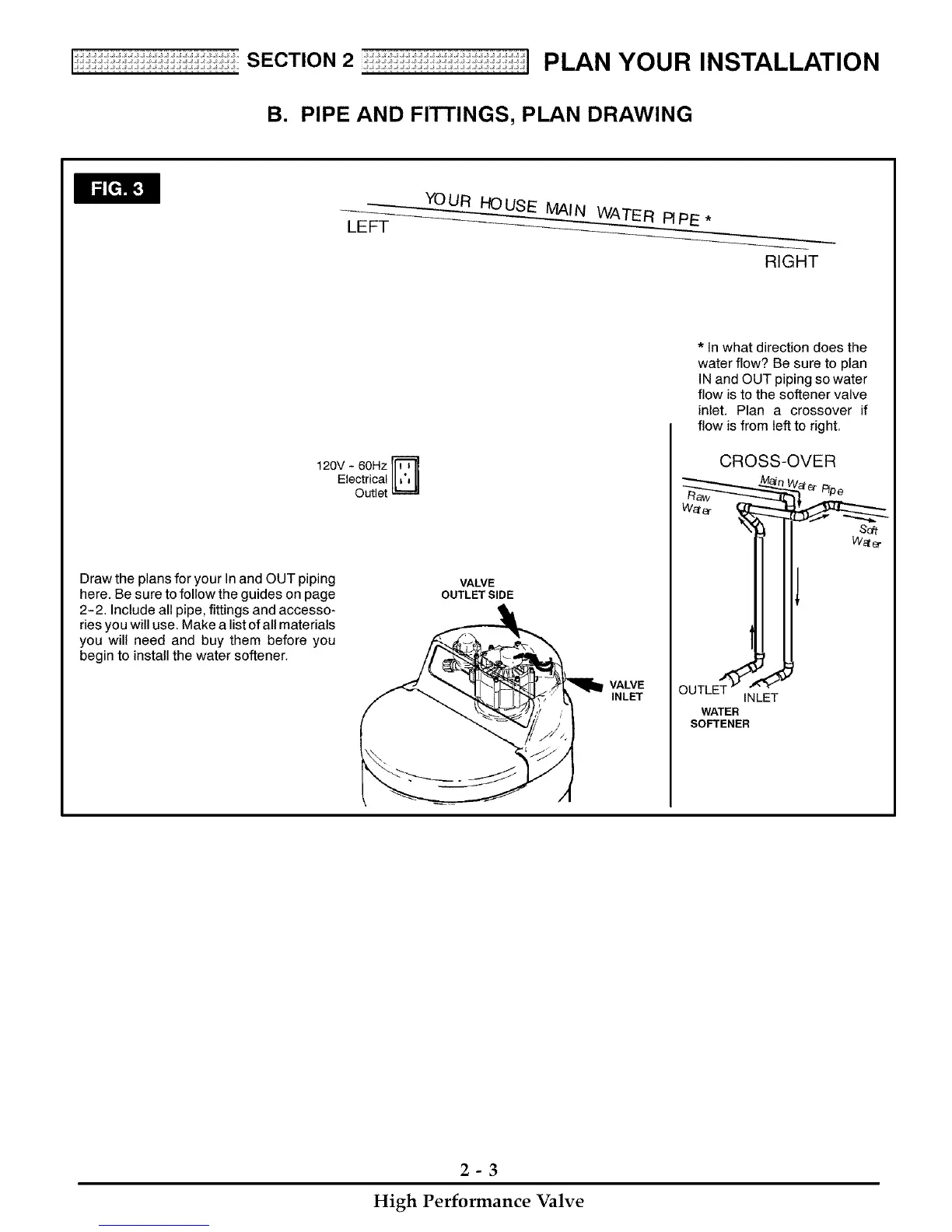

SECTION2 PLAN YOUR INSTALLATION
B. PIPE AND FITTINGS, PLAN DRAWING
YO UR HO USE MAI N WATER R PE *
LEFT
RIGHT
120V - 60HzI1_sII
ElectricalI1'"U
Outlet
Draw the plans for your In and OUT piping
here. Be sure to follow the guides on page
2-2. Include all pipe, fittings and accesso-
ries you will use. Make a list of all materials
you wilt need and buy them before you
begin to install the water softener.
VALVE
OUTLET SIDE
, VALVE
INLET
* In what direction does the
water flow? Be sure to plan
IN and OUT piping so water
flow is to the softener valve
inlet, Plan a crossover if
flow is from left to right.
CROSS-OVER
sift
W_a-
OUTLE_ '_
INLET
WATER
SOFTENER
2-3
High Performance Valve
