SECTION1 BEFORE INSTALLING CHECKS & TESTS
B. UNPACKING THE WATER SOFTENER
Directions for unpacking the softener are on the top
of the shipping carton. This manual, and the own-
er's manual, were on the small parts cardboard
packing piece. You will need the small parts to
install the softener. So you don't lose any parts, keep
them on the cardboard piece until you are ready to
use them. Remove all other cardboard pieces, foam
packings, tapes, etc. from the softener and discard.
Check the softener for shipping damage. If you
find damage, report it to your Sears store.
Use care when handling the softener. DO NOT turn
upside-down. DO NOT drop, or set on sharp objects
that could make a hole in the bottom. The water soft-
ener is heavy and to avoid damage, or personal inju-
ry, do not try to lift it or move more than necessary.
See page 3-4, when you are ready to move it into
installation position.

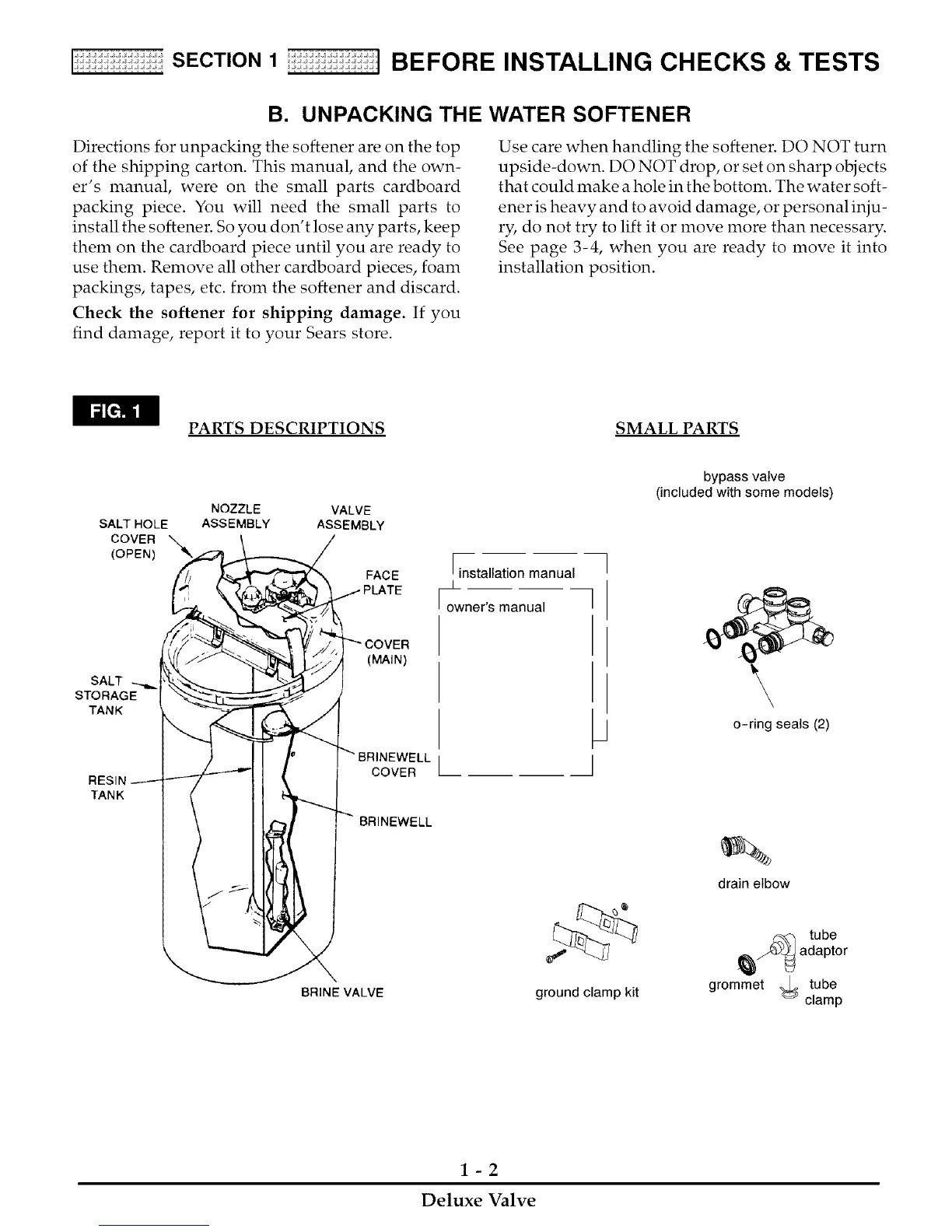

PARTS DESCRIPTIONS SMALL PARTS
SALT HOLE
COVER
(OPEN) N
SALT
STORAGE
TANK
TANK
NOZZLE VALVE
ASSEMBLY ASSEMBLY
FACE
PLATE
(MAIN)
'ELL
COVER
BRINEWELL
BRINE VALVE
I installation manual
1
owner's manual
ground clamp kit
bypass valve
(included with some models)
\
o- ring seals (2)
drain elbow
tube
_/X_._ adaptor
grommet _ tube
clamp
1-2
Deluxe Valve
