5
FORM NO. 71052A
05-7
SelectLine 13, 17, 20, 17HD, 20HD, 20TS
ASSEMBLY PARTS LIST & WIRING DIAGRAM
Ref. # Part No. Description Qty.
1 40760A Cord Power 1
2 11015A Hardware Kit 1
3 56201657 Handle, Rear 1
4 11017A Trigger Kit 1
5 11018A Wheel Kit 2
6 61726A Handle Mount 2
7 11019A Handle Clamp Kit 1
8 56201034 Switch, SPST 1
9 56201656 Handle, Front 1
10 70976A Label, Handle Kent 1
11 61373A Handle Tube 1
12 40774A Cord, Interconnect 1
13 61741A Link Arm, Right 1
14 71170A Label, SelectLine 13 1
70984A Label, SelectLine 17 1
70985A Label, SelectLine 17HD 1
70986A Label, SelectLine 20 1
70987A Label, SelectLine 20HD 1
70988A Label, SelectLine 20TS 1
15A 61844A Housing (13) 1
50972A Bumper (13) 1
15B 11006A Housing Assembly (17) 1
61715A Housing (17) 1
30381A Bumper (17) 1
15C 11007A Housing Assembly (20) 1
61714A Housing (20) 1
50784A Bumper (20) 1
Ref. # Part No. Description Qty.
16 61716A Cover, Drip (13, 17, 20, 17HD, 20HD) 1
61717A Cover, Drip (20TS) 1
17A 40761A Motor, (13, 17, 20) 1
40694A Start Capacitor (supplied with motor) 1
40695A Run Capacitor (supplied with motor) 1
53190A Start Switch (supplied with motor) 1
53645A Gearbox, (13, 17, 20) 1
69195A Coupling (supplied with gearbox) 1
17B 40763A Motor, (17HD, 20HD) 1
40694A Start Capacitor (supplied with motor) 1
53191A Run Capacitor (supplied with motor) 1
53190A Start Switch (supplied with motor) 1
53646A Gearbox, (17HD, 20HD) 1
69195A Coupling (supplied with gearbox) 1
17C 40764A Motor, (20TS) 1
51405A Brush (supplied with motor) 4
912287 Rectifier (supplied with motor) 1
46735A Speed Control (supplied with motor) 1
40851A Toggle Switch (supplied with motor) 1
53647A Gearbox, (20TS) 1
69195A Coupling (supplied with gearbox) 1
18 21088A Mainframe 1
19 61740A Link Arm, Left 1
NI 30758A Pad Driver (13) 1
NI 30638A Pad Driver (17) 1
NI 30639A Pad Driver (20) 1
06-8
COMMON
NORM
OPEN

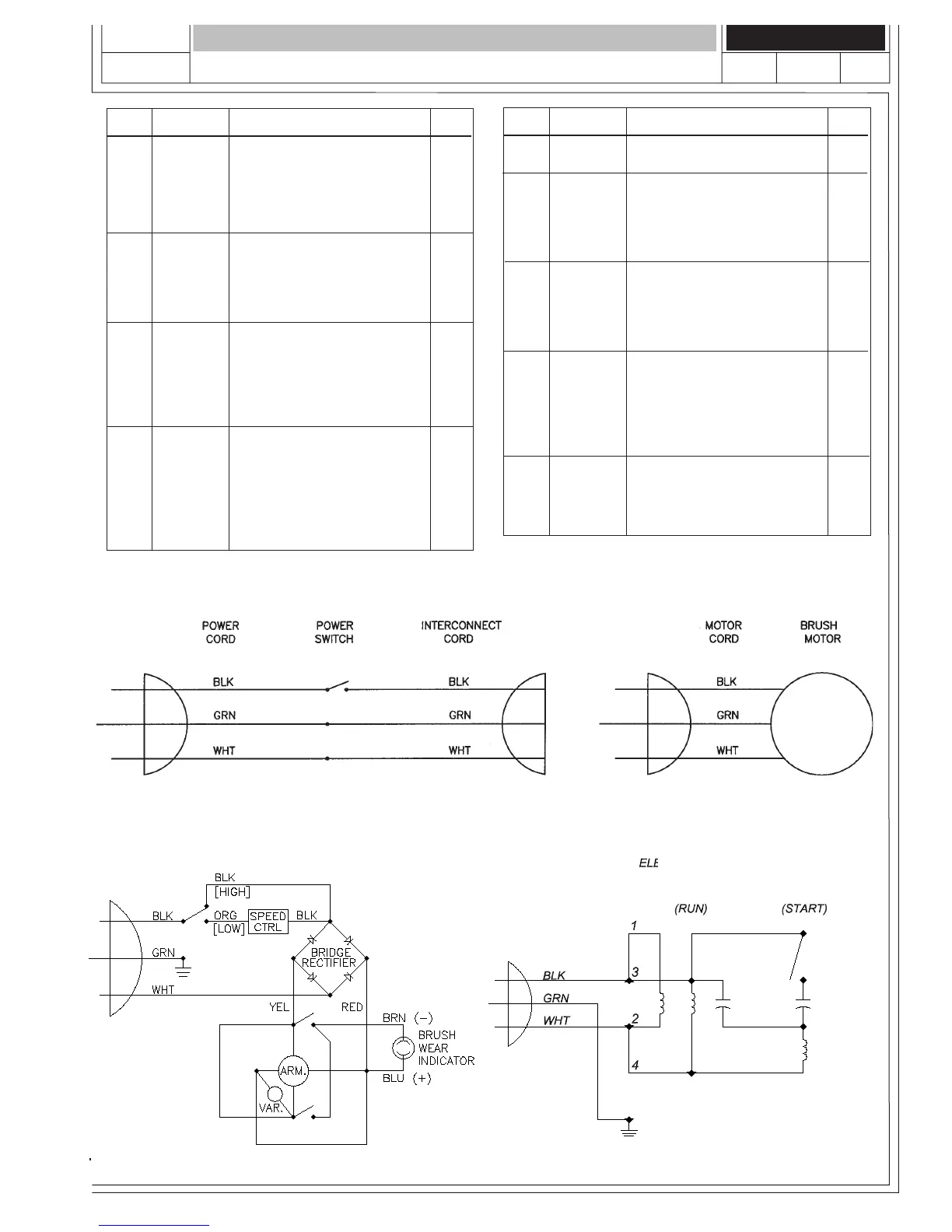

Floor Machine Schematic
TS Motor Schematic
All Models (except TS) Motor Schematic
