Basic Operations
9English
3
Operation keys
• [1] : Displays the Service List screen.
• [E] [F] : Tunes in a ensemble, service, and
component. The seek mode switching can be
changed. (see
2
Seek mode).
4
Preset list
• Touching [
]/[ ] allows you to change the
display size.
• Recalls the memorized service.
• When touched for 2 seconds, stores the
currently being received service in the
memory.
5
Function panel
Touch the left side of the screen to display the
function panel. Touch again to close the panel.
• [TI]: Selects the traffic information mode.
• [SETUP]: Displays the Digital Radio SETUP
screen.
• [PTY]: Searches for a program by program type.
• [DLS]: Display the Dynamic Label Segment
screen.
USB/iPod/iPhone
Ñ Connecting a USB device/iPod/
iPhone
1
Connect the USB device with the USB
cable. (P.18)
Connect the iPod/iPhone using the KCA-
iP103. (P.18)
2
Press the [HOME] button.
3
Touch [ ].
4
Touch [USB] or [iPod]. (P.7)
Ñ Disconnect the USB device/iPod/
iPhone
1
Press the [HOME] button.
2
Touch a source other than [USB].
3
Detach the USB device/iPod/iPhone.

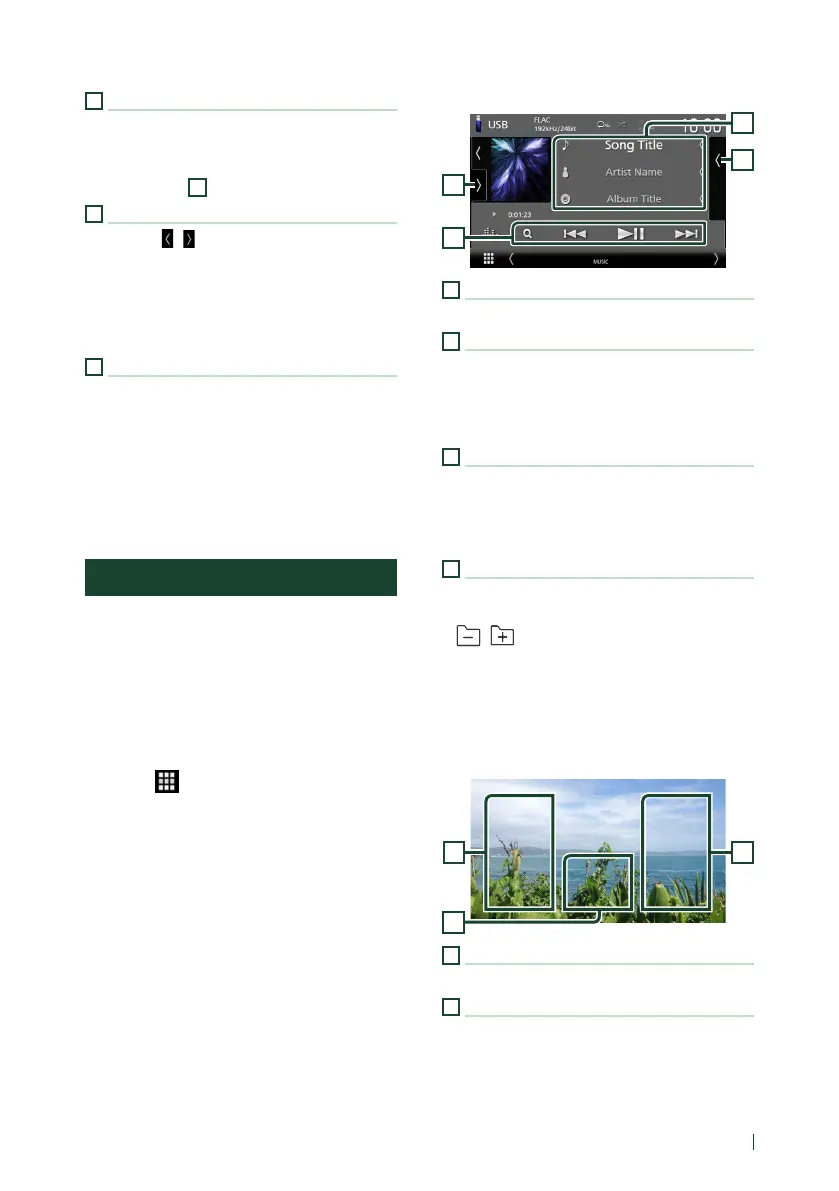

Ñ Basic Operation
4
2
3
1
1
Track information
• Displays the information on the current file.
2
Operation keys
• 1] : Searches track/file.
• E] [F] : Searches the previous/next track/
file.
• [DH] : Plays or pauses.
3
Content list
• Touch the right side of the screen to display
the Content list. Touch again to close the list.
• Displays the playing list. When you touch a
track/file name on the list, playback will start.
4
Function panel (USB only)
Touch the left side of the screen to display the
function panel. Touch again to close the panel.
• [
] [ ] : Searches for the previous/next
folder.
• [USB DEVICE CHANGE]:
Switches to another USB device when two USB
devices are connected.
(DMX8020DABS only)
Video screen (USB only)
6
55
5
File search area (Video file only)
Touch to search for the next/previous file.
6
Key display area (Video file only)
Touch to display the control screen.
