Connection/Installation
90

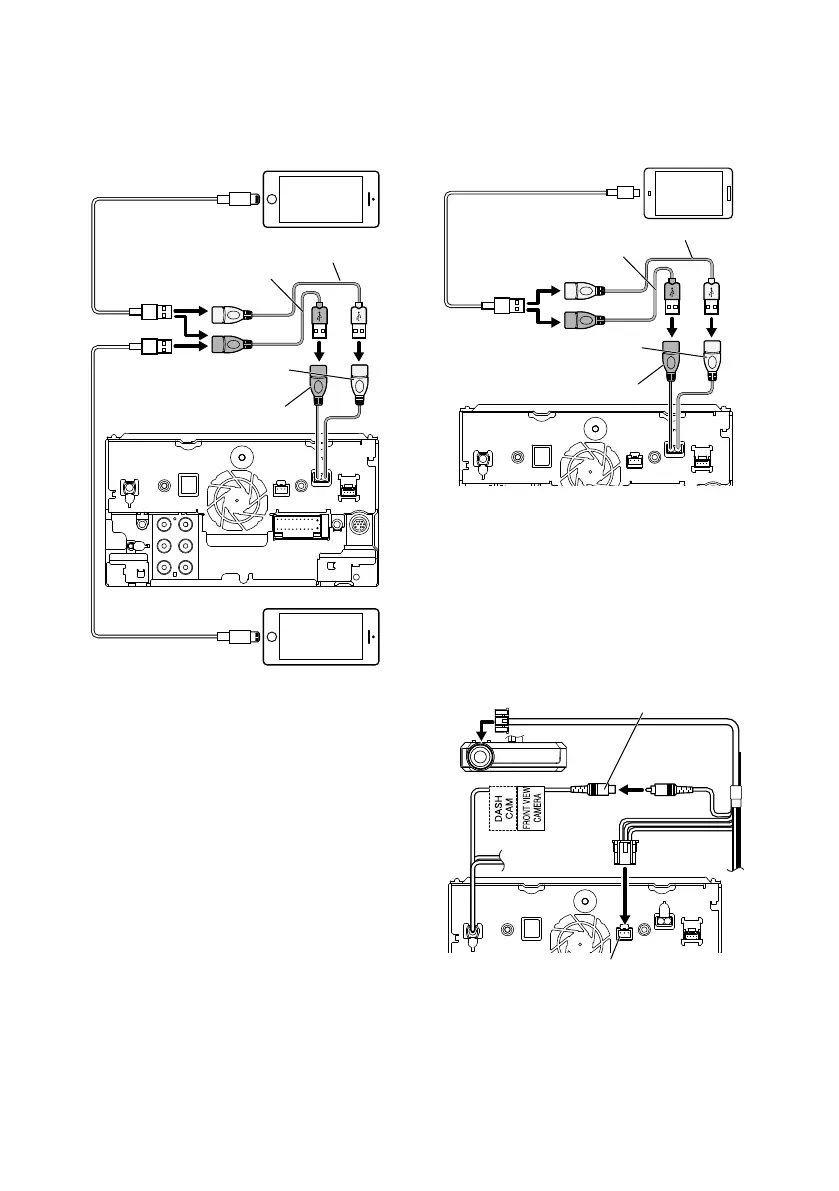

Ñ Connecting an iPod/iPhone
● Lightning connector
KCA-iP103 (0.8m)
[3]
KCA-iP103 (0.8m)
[3]
iPod/iPhone
[2]
iPhone (with CarPlay)
[2]
USB (Gray) terminal
[1]
USB (Black) terminal
[1]
Accessory 2 (Black) (1 m)
[4]
Accessory 3 (Gray) (1 m)
[4]
[1]
USB maximum power supply current :
DC 5 V = 1.5 A
[2]
Sold separately
[3]
Optional accessory
[4]
See Securing the USB extension cable
(P.89).
Ñ Connecting an Android
smartphone
Micro USB to USB cable
[2]
Android smartphone
[2]
USB (Gray) terminal
[1]
USB (Black) terminal
[1]
Accessory 2 (Black) (1 m)
[3]
Accessory 3 (Gray) (1 m)
[3]
[1]
USB maximum power supply current :
DC 5 V = 1.5 A
[2]
Sold separately
[3]
See Securing the USB extension cable
(P.89).
Ñ Connecting a Dashboard
camera
DRV-N520
[1]
Front view camera/
Dashboard camera input
(Yellow)
Dashboard camera interface
[1]
Optional accessory
!B5A-1730-00b_17DDX_K_En.indb 90 2017/02/01 11:53
