Connection/Installation
25English
• Reception may drop if there are metal objects
near the Bluetooth antenna.
Bluetooth antenna unit

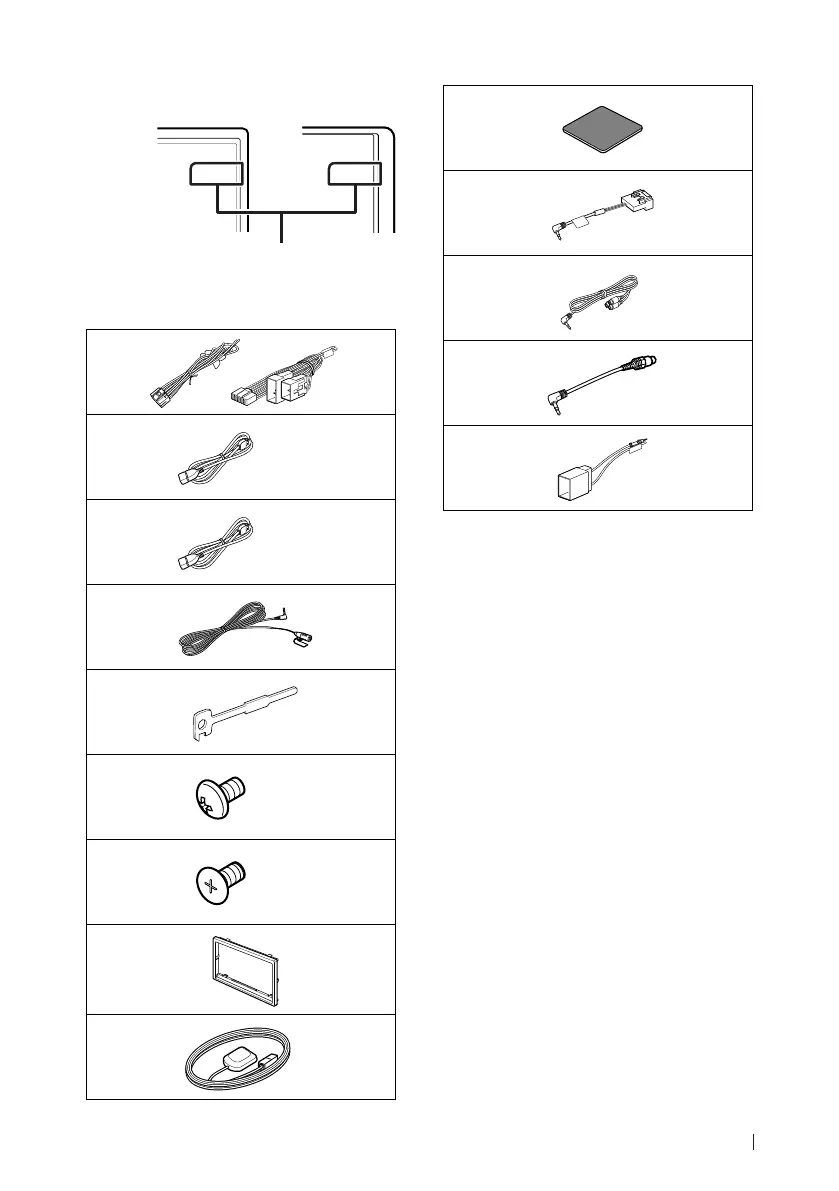

Ñ Supplied accessories for
installation
1
[1] [2]
x1
2
[1]
(Black 1 m)
x1
3
[1]
(Gray 1 m)
x1
4
(3 m)
x1
5
[1]
x2
6
(M5 x 8 mm)
x6
7
(M5 x 8 mm)
x6
8
[1]
x1
9
[1]
(3.5 m)
x1
0
[1]
x1
-
[2]
x1
=
[2]
x1
~
[3]
x1
!
[2]
x1
[1]
Except DDX819WBTL
[2]
DDX819WBTL only
[3]
DDX9906XR / DDX8906S / DMX906S only
Ñ Installation procedure
1) To prevent a short circuit, remove the key
from the ignition and disconnect the ¤
terminal of the battery.
2) Make the proper input and output wire
connections for each unit.
3) Connect the speaker wires of the wiring
harness.
4) Connect the wiring harness wires in the
following order; ground, battery, ignition.
5) Connect the wiring harness connector to the
unit.
6) Install the unit in your car.
7) Reconnect the ¤ terminal of the battery.
8) Perform the Initial Setup.
See Initial setup (P.6).
