Kenwood KDC-205CR User Manual

28
KDC-205/CR, 226
KDC-2026, 3026/R

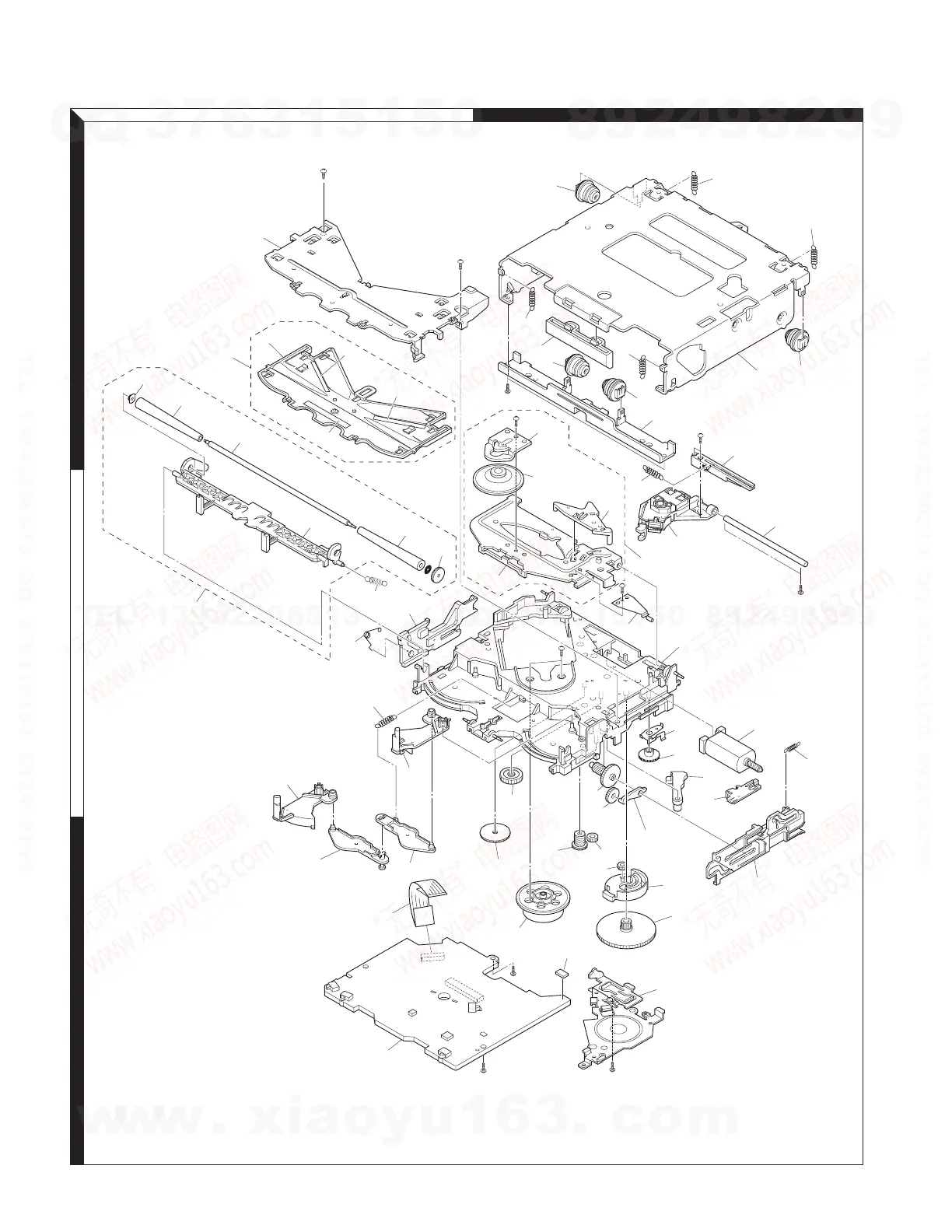

EXPLODED VIEW (CD MECHANISM)
3
2
1
BA
A
B
C
E
F
G
H
J
: N09-4460-05
: N09-4472-05
: N09-6004-05
: N09-6007-05
: N09-6051-05
: N19-2163-04
: N39-2020-46
: N09-6108-05
φ2x8
M1.7x8.5
M1.7x2.5
M2x2
φ2x6(BLK)
1.6 WASHER
M2x2
φ2x3.5
858
842
F
F
52
F
(X32)
DM1
14
24
DFPC1
28
25
16
29
19
31
26
13
12
10
30
27
42
11
17
18
23
45
38
DM2
801
850
849
806
843
855
843
843
807
44
39
40
15
22
G
834
55
51
8
33
809
36
33
J x2
H
41
5
DPU1
35
A x2
37
53
32
2
37
B x2
43
4356
37
F
F
37
43
43
E
C
x2
CD MECHANISM OPERATION DESCRIPTION is not in this sevice manual. Please refer to service manual for X92-4450-0x (B51-7889-00).
Parts with the exploded numbers larger than 700 are not supplied.
