ENGLISH
17
Data Size: B6L (182 mm x 128 mm)
Book Size: B6L (182 mm x 128 mm)
REMOTE CONT
STEERING WHEEL
REMOTE INPUT
P. CONT
ANT CONT
MUTE
Part list for
installation

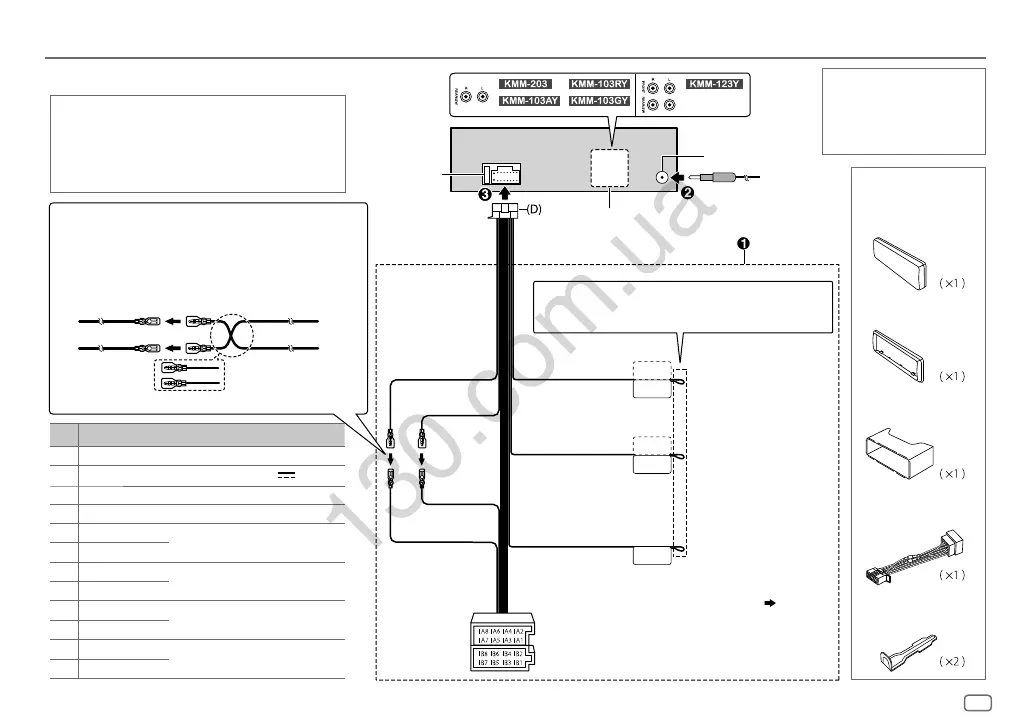

Wiring connection
When connecting to an
external amplifier, connect its
ground wire to the car’s chassis
to avoid damaging the unit.
If your car does not have an ISO terminal:
We recommend installing the unit with a commercially
available custom wiring harness specific for your car and
leave this job to professionals for your safety. Consult your
car audio dealer.
Pin
Color and function
A4 Yellow : Battery
A5 Blue/White
:
Power control (12 V 350 mA)
A7 Red : Ignition (ACC)
A8 Black : Earth (ground) connection
B1
Purple
]
: Rear speaker (right)
B2
Purple/black
[
B3
Gray
]
: Front speaker (right)
B4
Gray/black
[
B5
White
]
: Front speaker (left)
B6
White/black
[
B7
Green
]
: Rear speaker (left)
B8
Green/black
[
Connecting the ISO connectors on some VW/Audi or
Opel (Vauxhall) automobiles
You may need to modify the wiring of the supplied wiring
harness as illustrated below.
Unit
Vehicle
A7 (Red) Ignition wire (Red)
A4 (Yellow)
Default wiring
Battery wire (Yellow)
Light blue/yellow
(Steering remote
control wire)
To the steering wheel
remote control adapter
Blue/White
(Power control wire/
Antenna control wire)
Brown
(Mute control wire)
To the power control
terminal when using the
optional power amplifier
or to the antenna control
terminal in the vehicle
To the terminal that
is grounded when the
telephone rings or during
conversation (
13
)
(To connect the Kenwood
navigation system, refer
your navigations manual.)
Yellow (A4)
Red (Ignition wire)
Red (A7)
Yellow (Battery wire)
ISO
connectors
Fuse (10A)
Antenna terminal
Output
terminals
INSTALLATION/CONNECTION
If no connections are made, do not let the wire come
out from the tab.
(A)
Faceplate
(C)
Mounting sleeve
(B)
Trim plate
(D)
Wiring harness
(E)
Extraction key
JS_KWD_KMM_203_ENE2N_EN_5.indd 17JS_KWD_KMM_203_ENE2N_EN_5.indd 17 26-Aug-16 3:50:13 PM26-Aug-16 3:50:13 PM
