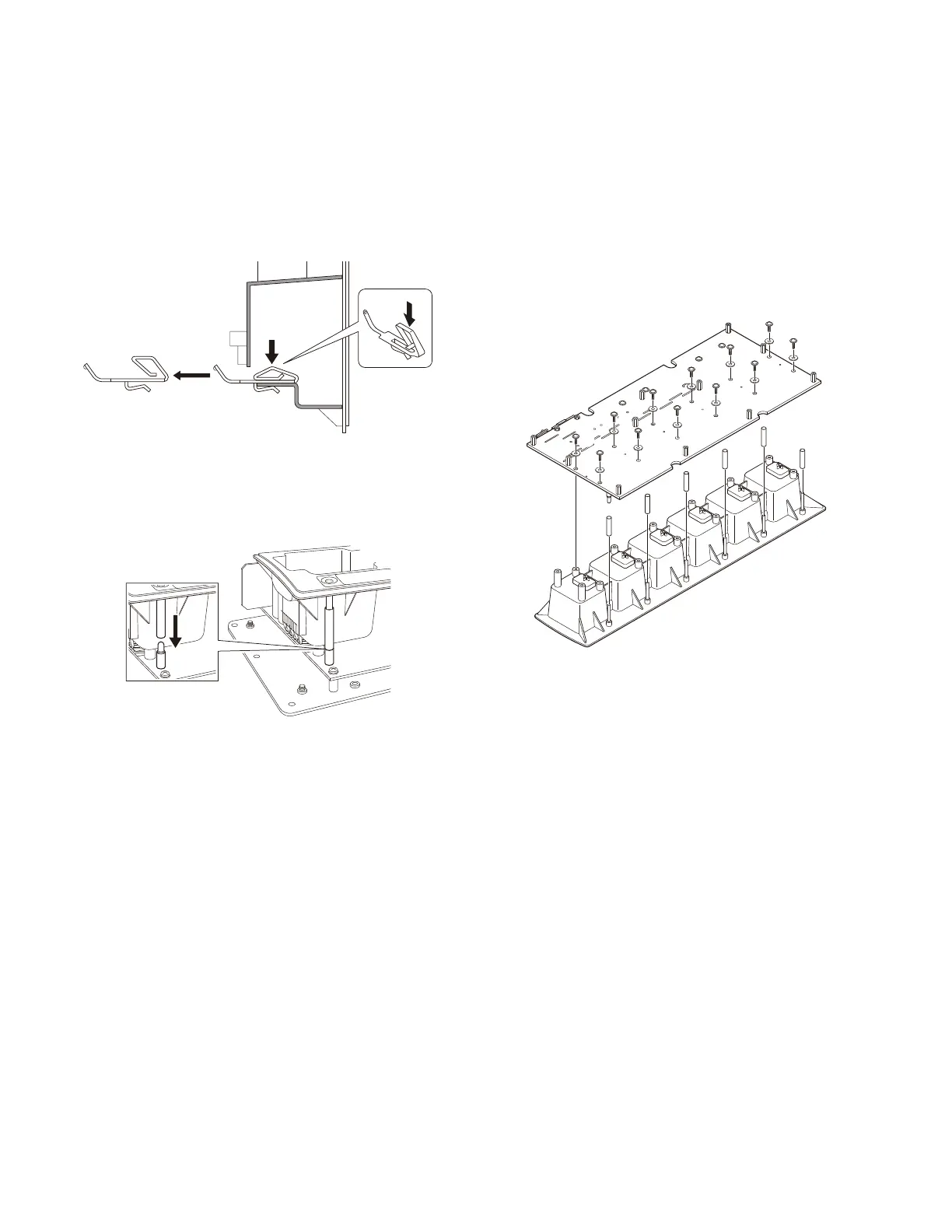

Removing the Charging Terminal
1. While pushing down on the protruding charger terminal,
slide the terminal out.
Note: Clean the charger terminal landing by wiping it
with an alcohol dampened cloth.
Installing the Shading Tube
1. After installing the charging slots onto the printed circuit
board, verify that the shading tubes cover the heads of
the LEDs.
Installing the LEDs
1. Install the LEDs onto the printed circuit board in the man-
ner shown in Exploded view.
Installing the Charging Slot
1. When installing the charging slot to the PCB, tighten the
screw in the direction indicated (right edge).
:
:
@
@
.
.
;
=
