Kenwood MX270 - Page 5

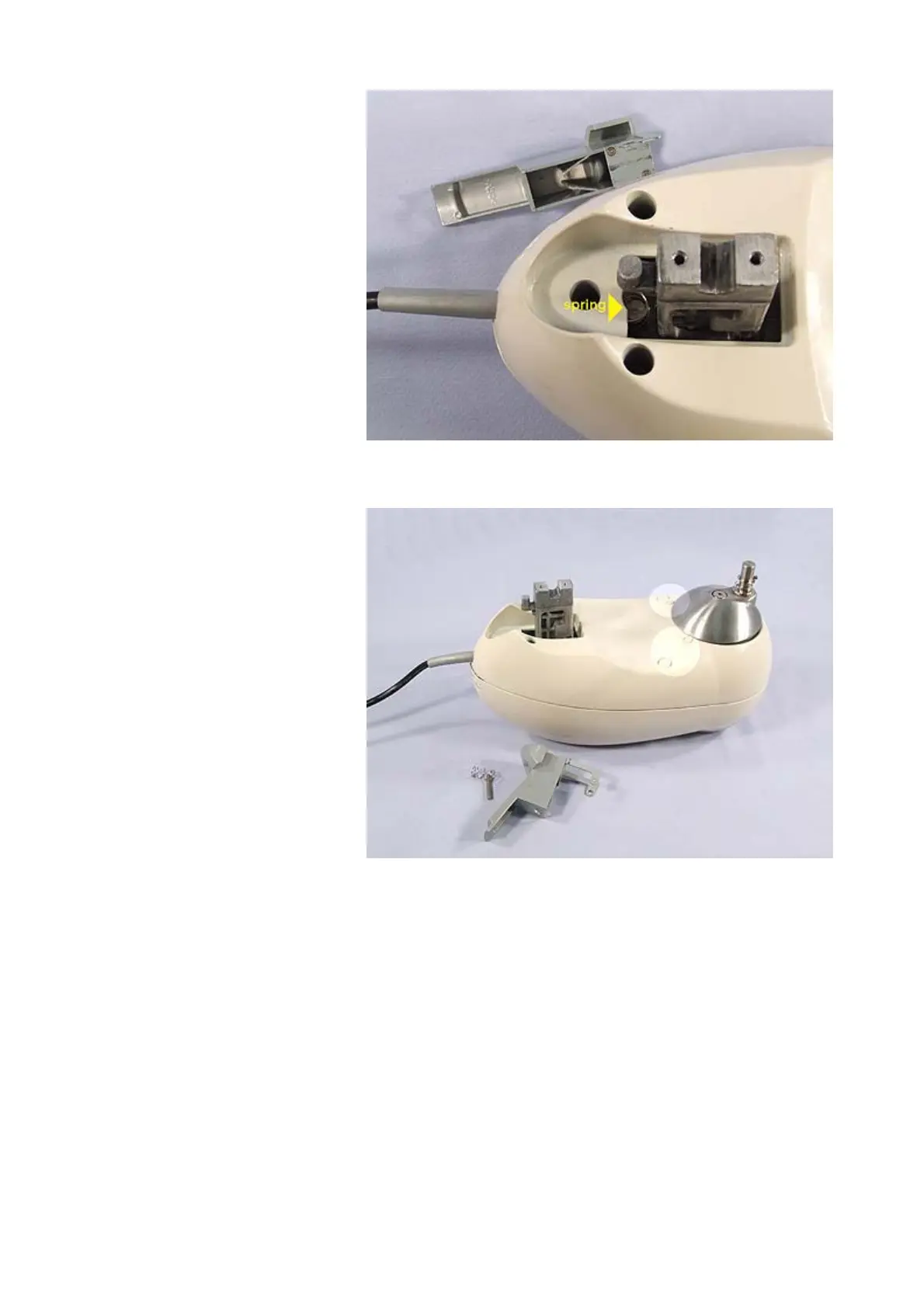

Remove the four screw caps and
screws beneath.
*it is not necessary to remove the hub
at this stage
Turn the power unit upright and lift off
the top cover.
