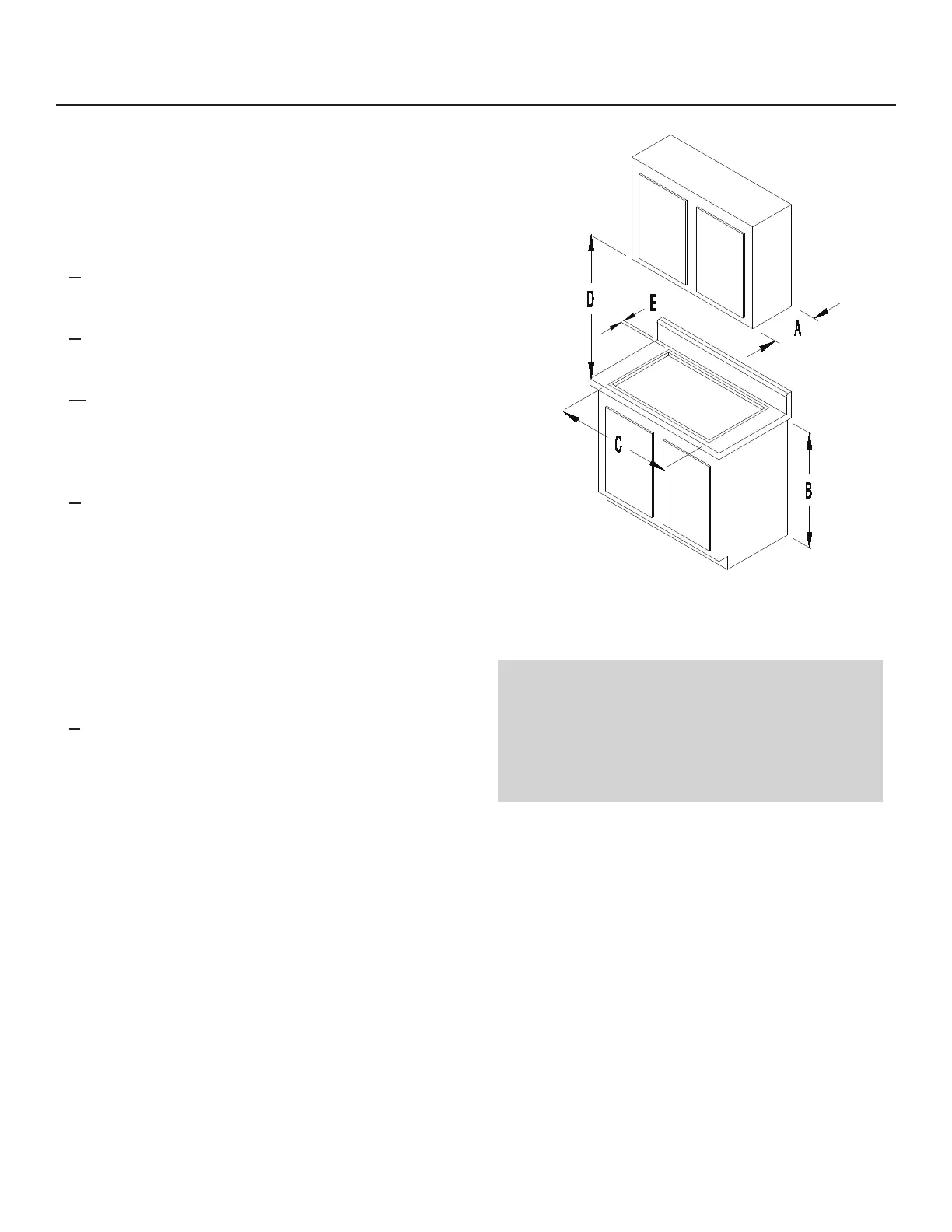

It is important to plan ahead for installation of
the unit, keeping the following dimensions in
mind.
A - 13 inches maximum depth of overhead
cabinets
B - 36 inches is minimum height of
countertop above oor
C - The minimum at countertop surface that the
unit will rest upon must be equal to or greater
than the overall grill dimensions (refer to page 6
for overall unit dimensions).
D - 30 inches minimum clearance between the
top of the cooking surface and the bottom of an
unprotected wood or metal cabinet or 24 inch
minimum clearance when the bottom of the
wood or metal cabinet is protected by not less
than 1/4-inch-thick ame retardant mill board
covered with not less than No. 28 MSG
sheet steel, 0.015-inch-think stainless steel,
0.024-inch-thick aluminum or 0.020-inch-thick-
copper.
E - 6-inch minimum from backsplash of
countertop to edge of unit (refer to page 6 for
overall unit dimensions). 1-1/2 inches minimum
from front of counter to the unit.
FOR INSTALLATIONS IN CANADA:
“Do Not Install Closer Than 1/2 Inch (12mm)
From Any Adjacent Surface”, and NE PAS
INSTALLER A’MDINS DE 12MM DETOUTE
SURFACE ADJACENTE.
PLEASE READ THIS SECTION PRIOR TO
MAKING CUTOUT FOR THE UNIT.
Installation
23
