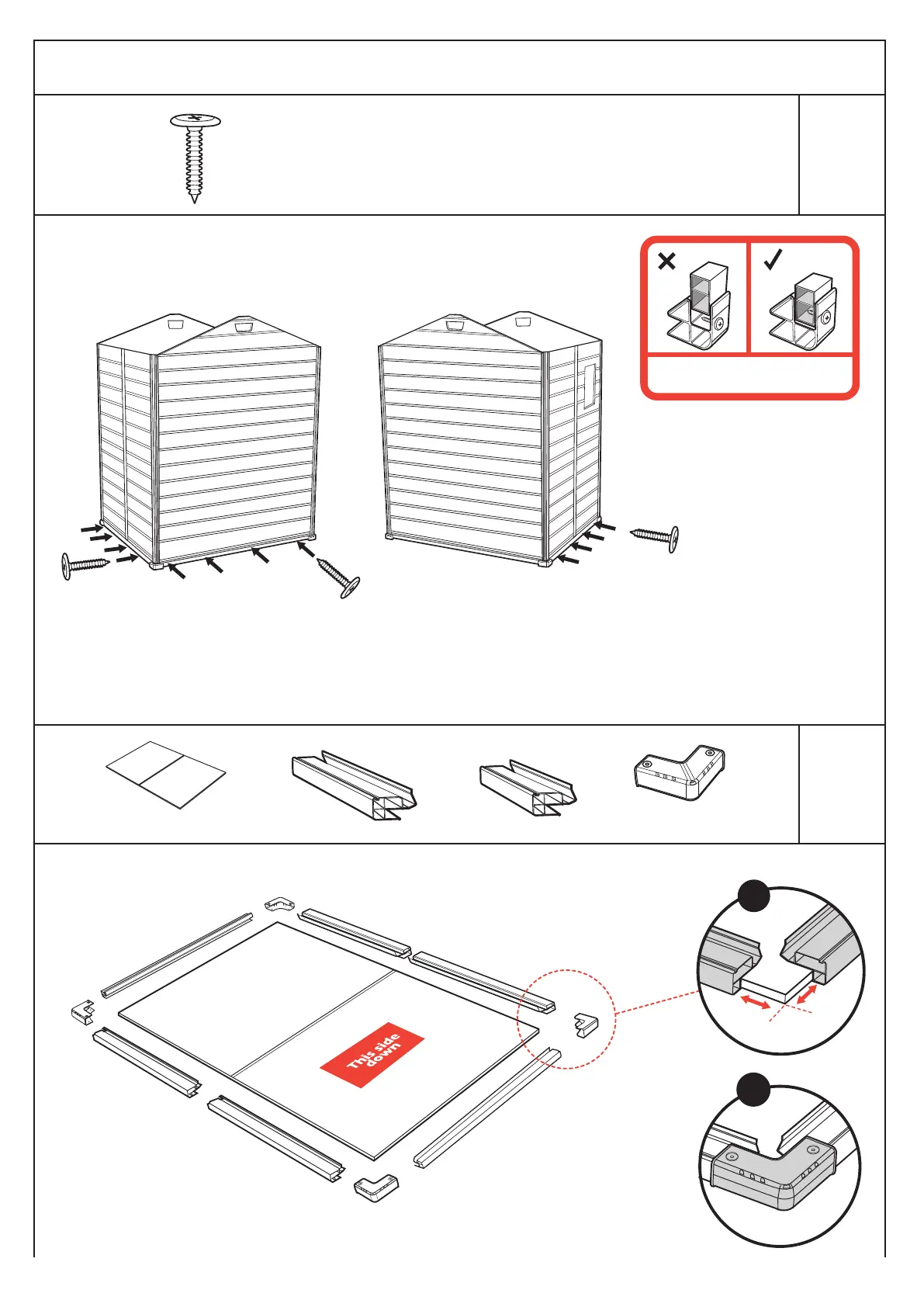

ROOF ASSEMBLY
e1b (x2) 133mm e1a (x4) 87mm rc (x4)r1d (x1) folded
rc
Note:
The roof folding line,
and the “This side Down”
label, must be seen at this
stage.
1
rc
rc
e1b
e1a
rc
2
e1a
e1a
e1a
e1b
7.5 cm
7.5 cm
1
s26b (x12)
26mm
Fully fit the panel
inside the porfile
s26b
s26b
s26b
26
25
