21
EN
UP
PP
DOWN
MENU
SELF-LEARNING OF THE TRAVEL AND MAIN PARAMETERS
1. Unlock the gate, door or barrier, bring it to a central position and lock it again
2. Press buttons + and MENU SIMULTANEOUSLY for more than 5 seconds and get ready to press (if
necessary) the DOWN button (see gure)
3. If the rst maneuver is NOT an opening, press DOWN to stop the self-learning.
Then press PP in order to restart the acquisition: the gate starts to move towards the correct direction
4. Wait until two complete maneuvers are carried out (2 openings and 2 closings) and the gate ends
the travel in the closed position
5. Perform a few opening, closing and sudden stop operations, verifying that the installation is solid
and there are no installation defects.
All the main parameters are initially set up by the control unit. To customize the installation proceed with the next paragraph.
UP
UP
UP
UP
UP
UP
UP
DOWN
DOWN
DOWN
DOWN
DOWN
DOWN
DOWN
MENU
MENU
MENU
MENU
MENU
MENU
MENU

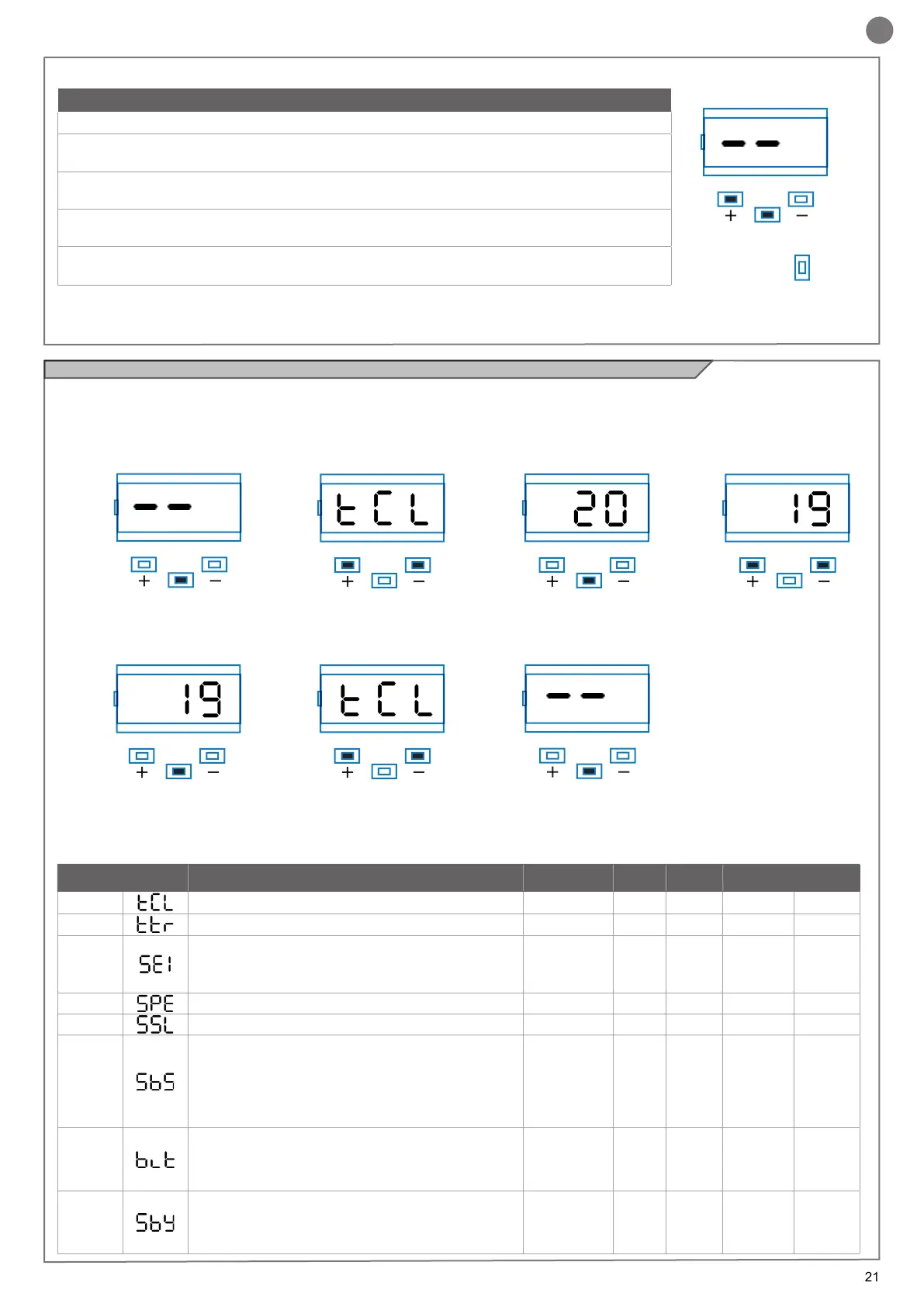

4.4 - Customizing the installation - BASIC MENU
If necessary, you can select a BASIC MENU that allows you to
change the basic parameters of the unit. To select the BASIC MENU
follow the steps below.
Once in the BASIC MENU,
press + and - buttons to scroll
through the functions
Press the MENU button quickly
to exit the menu
Hold down the MENU button
for 1 second to enter the ba-
sic menu
Once in the BASIC MENU,
press + and - buttons to
scroll through the functions
and modify other parameters.
Press the + and - buttons to
modify the value which is ash-
ing
Hold down the MENU button
for 1 second until it stops ash-
ing to save the changed value
or press MENU quickly to exit
without saving
To change a value, hold down
the MENU button for 1 second
until the value stops ashing
CAUTION: To view the status dened as "NORMAL OPERATION",
which is the starting point for accessing the BASIC MENU, press
"MENU" two times
Example of changing a BASIC MENU parameter
PARAMETERS DESCRIPTION DEFAULT MIN MAX UNIT
1
Automatic reclosing time (0 = disabled) 20 0 900 s
2
Reclosing time after transit (0 = disabled) 0 0 30 s
3
Motor sensitivity, sensitivity to obstacles.
( 1 = lowest sensitivity, maximum force on the obstacle
10 = maximum sensitivity, minimum force on the
obstacle)
3 1 10
4
Nominal motor speed 4 (6*) 1 10
5
Decelerating motor speed 3 (2*) 1 8 (3*)
6
PP Conguration
0. Normal (OP-ST-CL-ST OP-ST-CL-ST …)
1. Alternated STOP (OP-ST-CL OP-ST-CL …)
2. Alternated (OP-CL OP-CL …)
3. Condominium or timer
4. Condominium with immediate reclosing
0 0 4
7
Behavior of the automation after a black out
0. No action, remains as it was
1. Closing
2. Completing the last maneuver
0 0 2
8
Energy savings: enables accessories to turn off with
the gate closed (max consumption 40 mA)
0. Function disabled
1. Function enabled
0 0 1
