7
ENGLISH
+ -

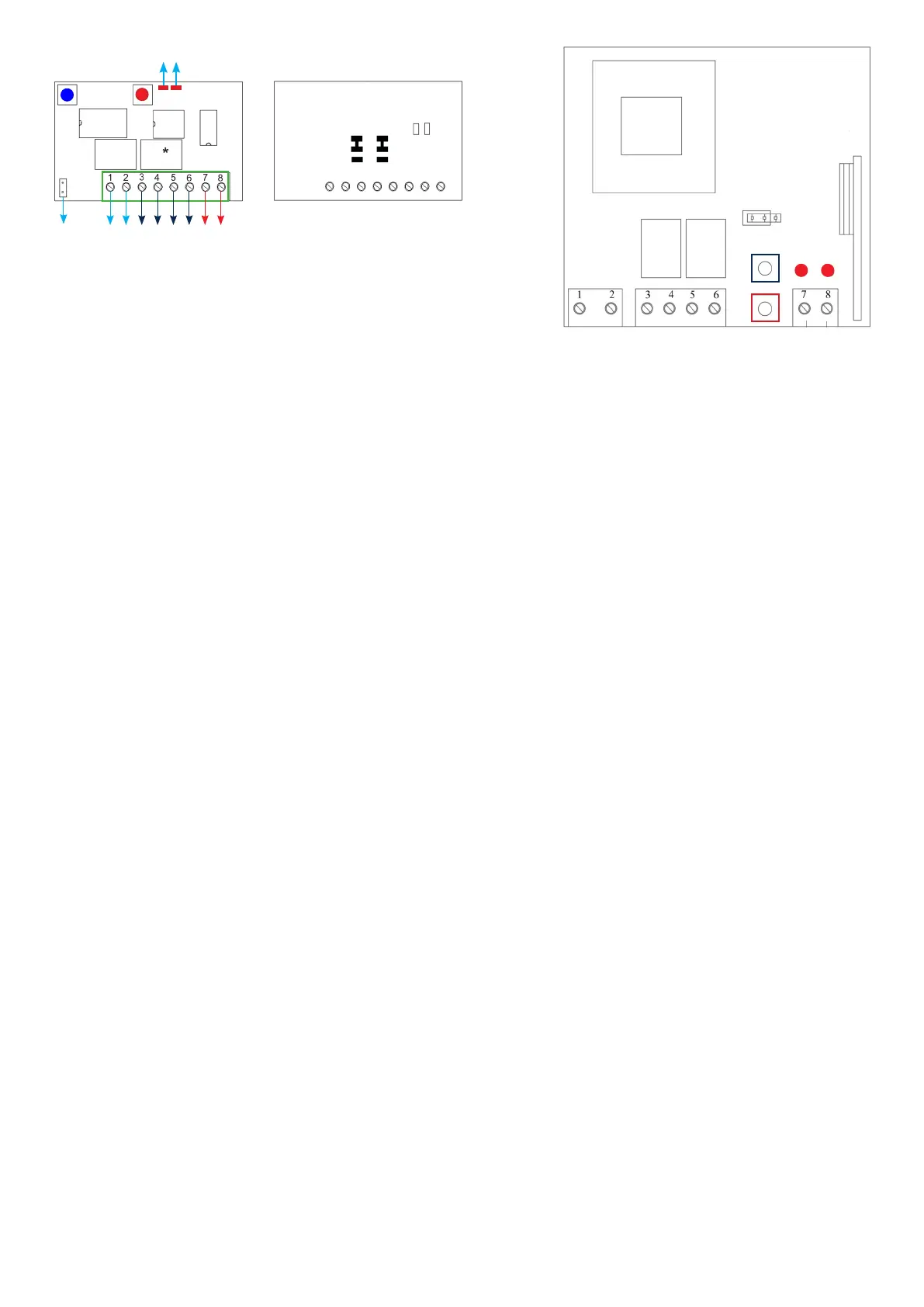

gnd sign
Power supply
Relay 1 output
Relay 2 output (only on RXM-42/42R or RXI-42/42R)
Aerial input
12/24 VAC/VDC
OUT 1
OUT 2
AERIAL
STANDARD OPERATION
When powered up, the receiver performs aninternal test and leds LR1-LR2 emit two slow and two fast
ashes to indicate that it is ready for the next phases.
NA NA
NC NC
A
Prolung. Timer
S P
LR1 LR2
12/24Vac/Vcc
OUT1
OUT2
ANT
Prolung. Timer
900RXM230-42
S
P
LR1 LR2
230Vac
OUT1
OUT2
ANT
OUTPUT PROGRAMMING
The selection push button S enables the user to select the output to be programmed (Out1,Out2), and dis-
plays the latter by means of the indicator leds LR1 and LR2. Each time pushbutton S is pressed, a different
output is selected, changing from LR1 to LR2, in the sequence LR1-LR2-null-LR1-..... After selecting the
output to be programmed, programming pushbutton P enables entry of the output as monostable (1 ash
of led LR), bistable (2 ashes of led LR), timed (3 ashes of led LR) and ON-OFF (4 ashes of led LR).
Pushbutton P varies the number of ashes of an output and thus its programming. Therefore outputs can be
programmed differently from one another. E.g. Out1 set as impulse type, Out2 set as step.
N.B. If no output is selected by means of pushbutton S, pushbutton P automatically programs the rst output
when pressed.
STANDARD CODE SELF-LEARNING
The output to be programmed is selected by means of pushbutton P, or Out1 is entered automatically. At this
point led LR (selected) emits a series of slow ashes for 10 sec. To indicate entry in the self-learning phase.
In this interval, if the radio control is pressed self-learning of thecode is activated with the channel on which
it is transmitted. If the code is memorised correctly, leds LR1, LR2 remain lit for 2 sec. After the rst memo-
risation command, the leds ashfor a further 6 sec. On standby for a new memorisation command;if this is
performed, they continue to ash for 6 sec. Otherwiseit exits the programming phase. If a previously memo-
rised codeis entered during this phase, leds LR1 and LR2 ash quickly to indicate that the code has already
been memorised.During the self-learning phase, each output canmemorise up to approx. 400 codes.E.g. an
initial user can memorise channel 1° of the radio controlin output Out1 of the receiver, and a second user
can memorise channel 2°, 3° or 4° on the radio control in the same output (Out1) of the same receiver.
900RXI/M-41 900RXI/M-41R 900RXI/M-42 900RXI/M-42R
Jumper selection tension
Jumper inserted 12 Vac/Vdc
Jumper disconnected 24 Vac/Vdc
