Connections, LEDs, Buttons, Slide Switches, Rotaries
VIDEO

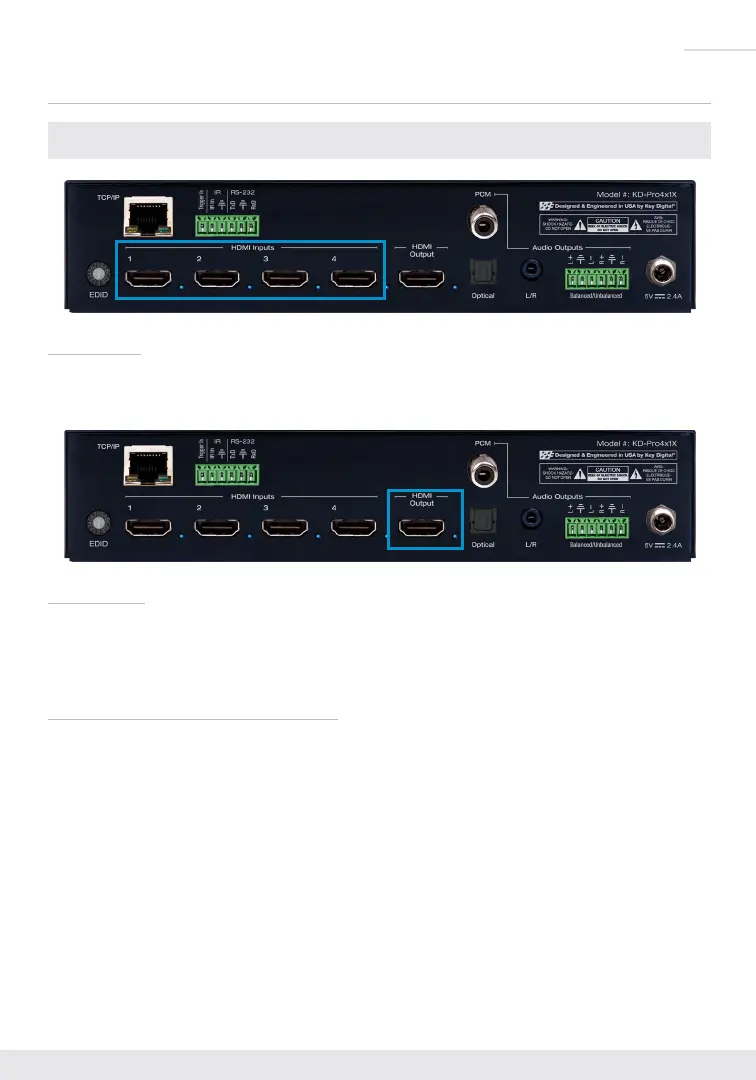

HDMI Inputs
› The 2/4 HDMI inputs are located on the left side of the back panel.
› Blue LED illuminates solid to indicate an active HDMI signal is incoming.
HDMI Output
› 1 HDMI located on the center to right side of the back panel.
› Blue LED illuminates solid when Hot Plug Detection (HPD) is received from the connected display/
output device
HDMI Input/Output Port Specifications
› Supports up to UHD/4K @ 50/60 fps [4:4:4], 18Gbps signals
» See Supported standard 4K Video Formats table
› Supports HDR10
› Compliant with HDCP 2.2 and previous
› Supports lossless compressed audio formats including Dolby
®
TrueHD, Dolby
®
Digital Plus, Dolby
Atmos
®
, and DTS-HD Master Audio
™
› CEC pass-through from display to selected HDMI source
› For Display Port sources/monitors, use active converters
