Keyence IG Series User Manual

 rubeam Digital Laser Sensor
with the Highest Level of Stability
REPEATABILITY OF 5 μm
LINEARITY OF ± 0.1%
(IG-028)
The sensor provides a high level of stability with its multi-wavelength
laser and parallel computing chip.
WIDE VARIETY OF APPLICATION MODES
• Edge control mode
• Outer diameter measurement mode
• Inner diameter/Gap measurement mode
• Edge detection of transparent targets

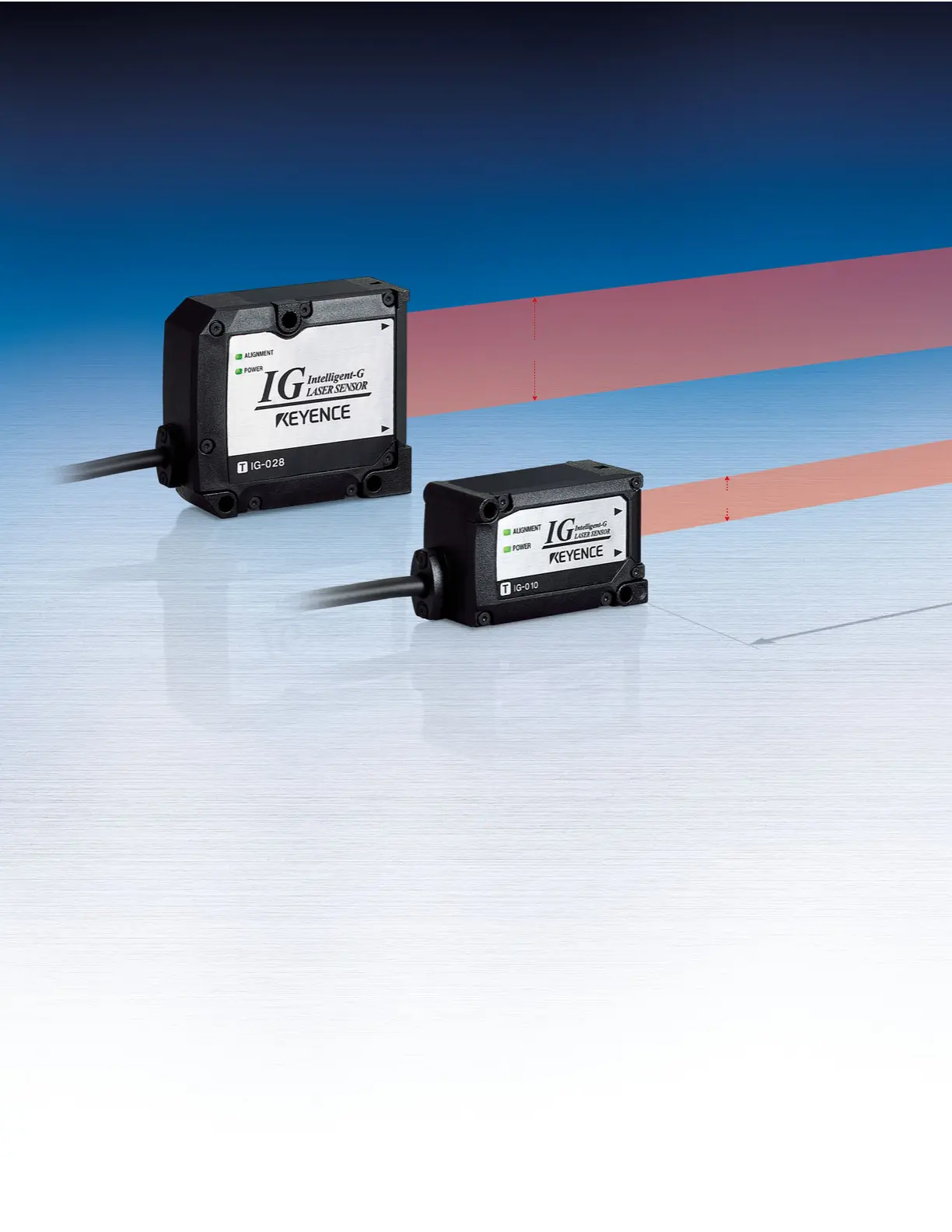

28mm 1.10" type
IG-028
10mm
0.39" type
IG-010
28 mm 1.10"
10 mm 0.39"
2

Keyence IG Series Specifications

General

Protection Rating	IP67
Type	Laser Displacement Sensor
Light Source	Semiconductor laser
Output	Analog voltage output, Analog current output
Measurement Principle	Triangulation
Laser Type	Class 2 (IEC/EN 60825-1)
Power Supply	12 to 24 VDC
Operating Temperature	0°C to 50°C
