Keyence IG Series User Manual

Large Distance between the Transmitter and Receiver
IG-028: Max. 1500 mm 59.06" IG-010: Max. 1000 mm 39.37"
Measurements are performed
with up to 28,000 optical axes
(IG-028), each of which monitors
the amount of light received.
POSITION MONITOR
IP67 Protection
The enclosure is resistant to harsh
environments and offers long-term
durability.
Display Unit Options
There are two types of display units: panel
mount and DIN-rail mount. When a display
unit is connected to a communication unit,
measurement data can be sent to external
devices such as a PLC.

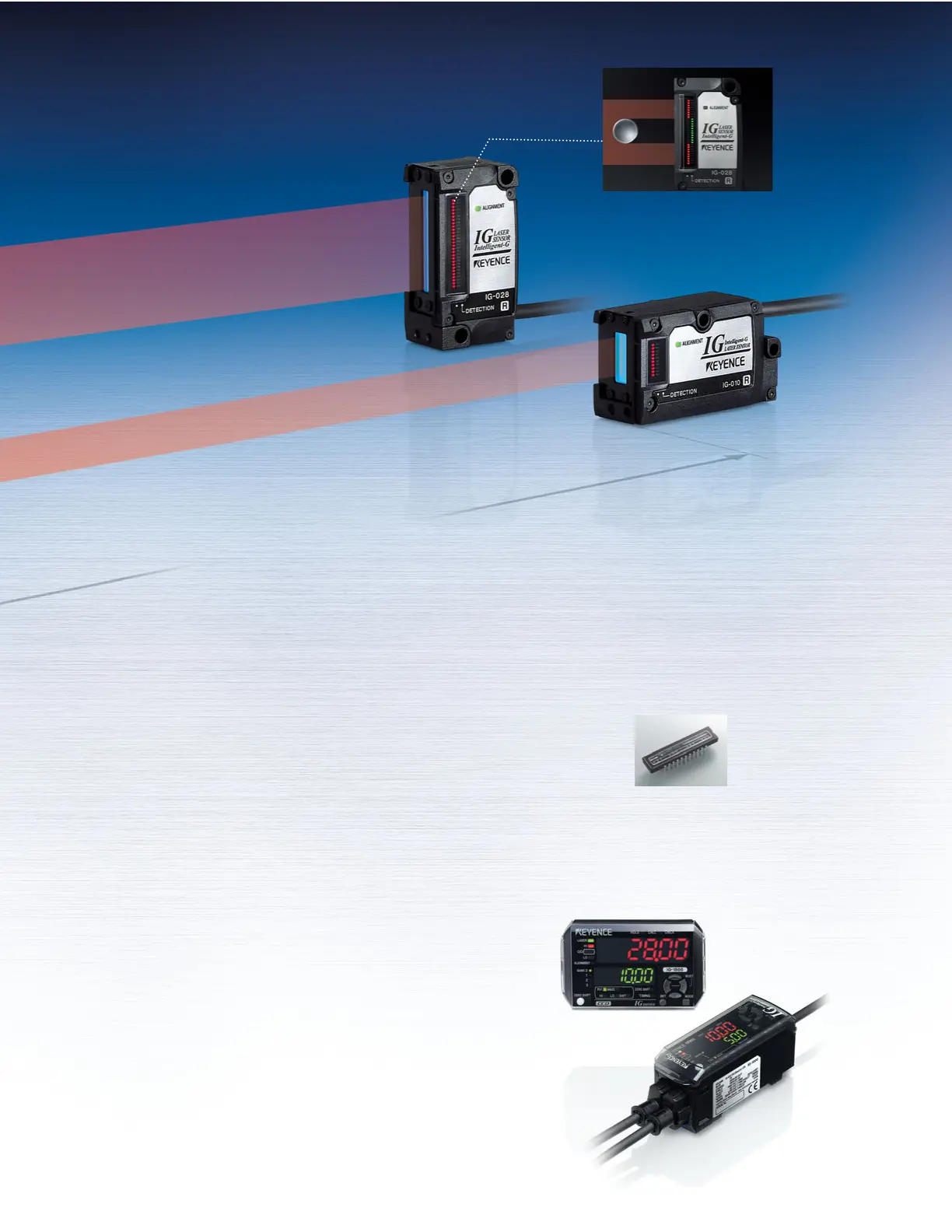

The sensor recognizes the position of a target
and is less sensitive to its environment, making it
possible to achieve stable target measurement.
L-CCD
*
Light-Receiving Element
* L-CCD : Linearized-Charge Coupled Device
Panel mount type
IG-150 0/1550
DIN-rail mount type
IG-1000/1050
3

Keyence IG Series Specifications

General

Protection Rating	IP67
Type	Laser Displacement Sensor
Light Source	Semiconductor laser
Output	Analog voltage output, Analog current output
Measurement Principle	Triangulation
Laser Type	Class 2 (IEC/EN 60825-1)
Power Supply	12 to 24 VDC
Operating Temperature	0°C to 50°C
