Keyence IG Series User Manual

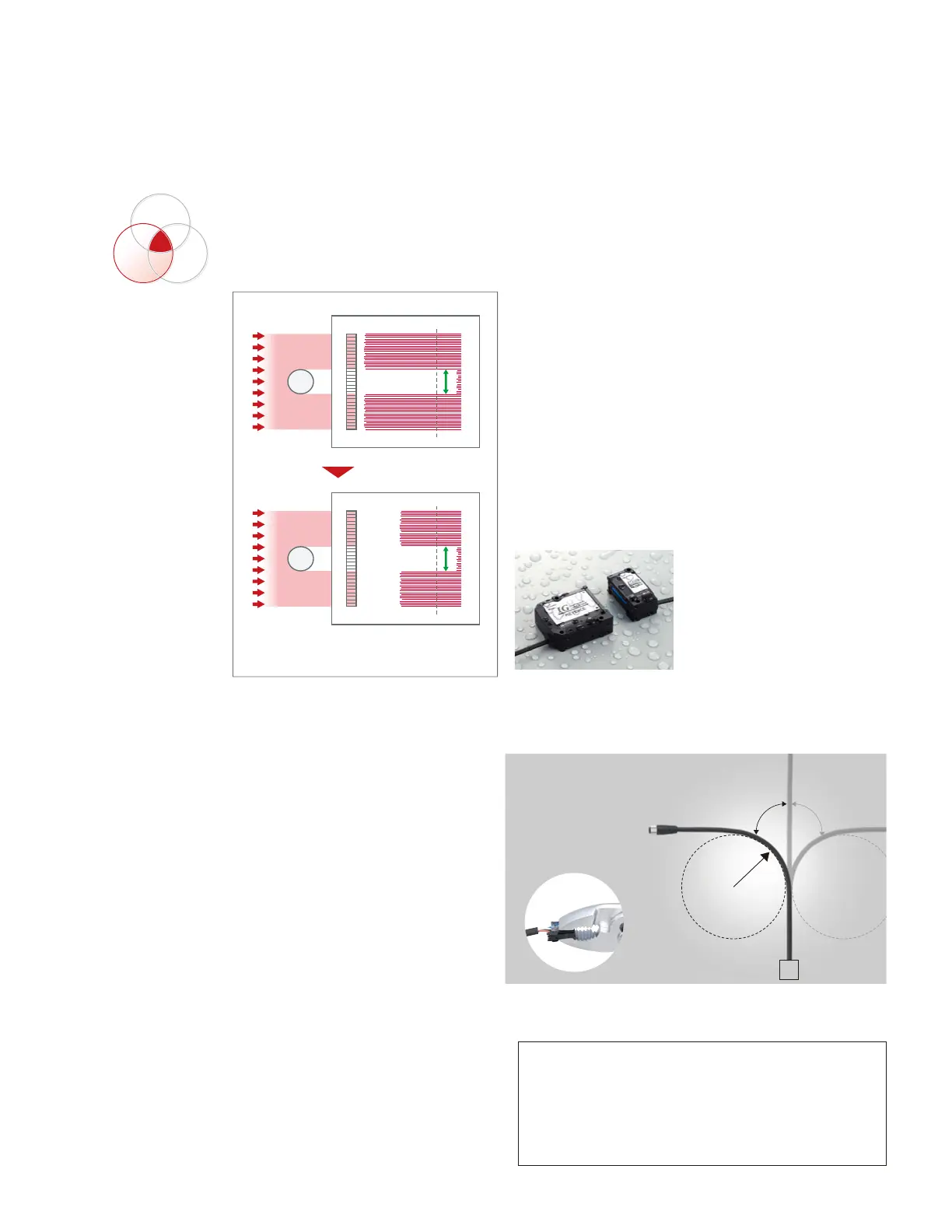

Although dirt reduces the total amount of light
received, the measurement position is the same.
The shadow of a target is shown.
Easy to maintain thanks to excellent environment resistance
Key Point: Less Sensitive to Dirt
Because it uses an L-CCD, the IG Series is less sensitive
to materials such as dirt than a sensor that uses a
photodiode (PD) as the light-receiving element.
IP67 Protection
The enclosure satisfies the IP67 rating based on the IEC
standards and remains watertight even after being held
at a depth of one meter for 30 minutes. The enclosure is
resistant to adverse environments and offers long-term
durability.
L-CCD
Received light level
Received light level
Binarization level
28
0
L-CCD
28
0
If the sensor gets dirty...
Flexible Free-Cut Cable
The sensor head cable is a robot cable
that withstands repeated bending. The
cable can be used safely in a position
requiring repeated motion.
Edge Check Function
The user can check whether a measurement
is performed correctly by verifying the
number of edges in the field of view.
Example
- Prevent dust or oil from adhering to the measurement unit,
which can cause an abnormal measurement value.
- Detect the intrusion of a different type of target.
- Check that a measurement target falls within the measurement range.
90°
L
R
No break in the cable after 20 million bends (typical)
Load (W): 250 g
Bending radius: R50 mm
1.97"
Rate: 30 bends/minute
(One bend is a cycle whereby the cable
is bent from left to right and then from right
to left.)
Free Cut!
FUNCTION AND STRUCTURE THAT MATCHES
THE ON-SITE ENVIRONMENT
6
SERIES
Intelligent
Rugged
Easy
I

Keyence IG Series Specifications

General

Protection Rating	IP67
Type	Laser Displacement Sensor
Light Source	Semiconductor laser
Output	Analog voltage output, Analog current output
Measurement Principle	Triangulation
Laser Type	Class 2 (IEC/EN 60825-1)
Power Supply	12 to 24 VDC
Operating Temperature	0°C to 50°C
