KL/RX2
Master Control Panel
It is recommended that mains voltage to
the transformer is fed through a switched
fused spur with a 3 amp fuse
KL/RX2-2012G
THE INSTALLATION OF THIS SYSTEM MUST BE CARRIED OUT BY A QUALIFIED ELECTRICIAN
THE GUARANTEE WILL BE VOIDED IF THIS IS NOT FOLLOWED

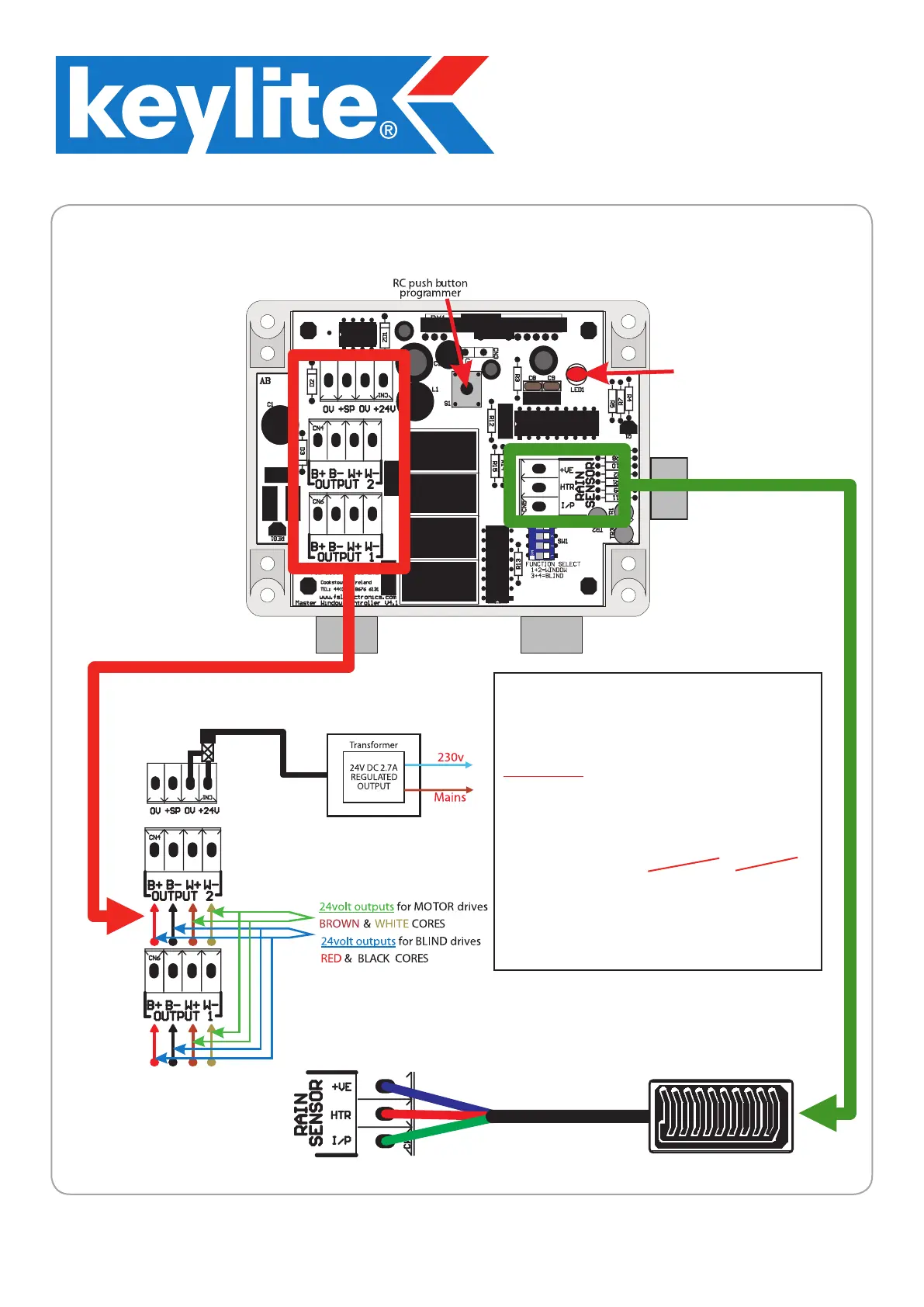

WIRING OF THE MASTER CONTROL
WINDOWS & BLIND CONNECTIONS
RAIN SENSOR
WARNING!
ONLY TO BE CONNECTED BY
A QUALIFIED ELECTRICIAN
4 core cable from motor:
BROWN | WHITE | YELLOW | GREEN
Discard YELLOW & GREEN cores
All cables are to be a minimum of 0.75mm
cable
RAIN SENSOR FACTORY FITTED TO WINDOW
Fig. A
Fig. B
