2 Verification and Adjustments
64 Keysight E36200 Series Service Guide
Output noise verification
Periodic and random output deviations superimpose a residual AC voltage on the
DC output. This residual voltage is specified as the rms or peak-to-peak noise in
and is specified in the product data sheet.
1 Turn off the power supply using the AC line switch.

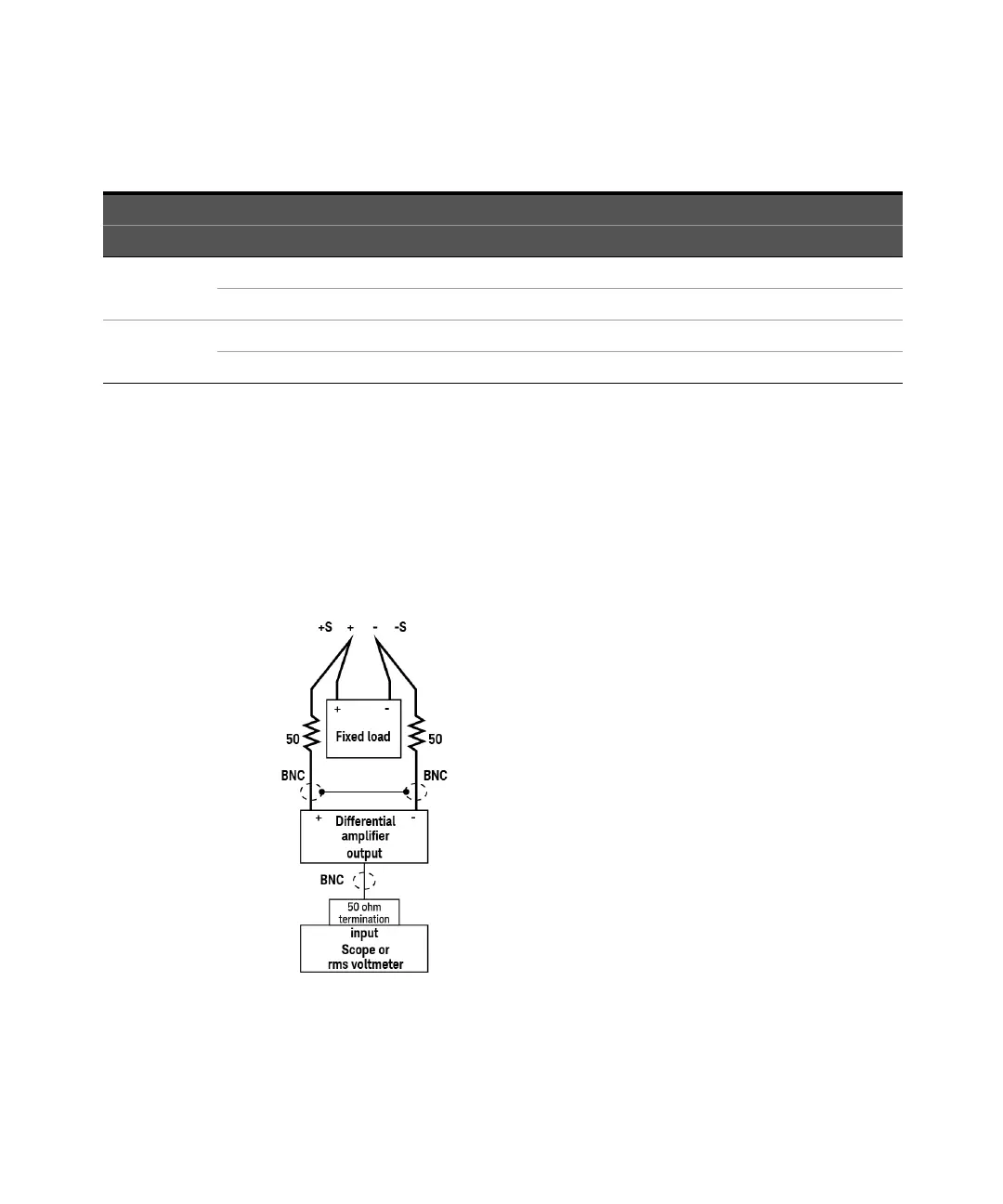

2 Connect a fixed load, differential amplifier, and an oscilloscope (AC coupled) to
the output as shown below.
3 Turn on the power supply using the AC line switch.
Table 2-4 Transient response verification instrument setting
DUT Setting E-Load Transient Response
Model Voltage (V) Current (A) Current (A) T-Level Lower limit Upper limit
E36231A /
E36233A
30 MAX 6.667 3.333 - 50 μs
10 MAX 20 10 - 50 μs
E36232A /
E36234A
60 MAX 3.333 1.67 - 50 μs
20 MAX 10 5 - 50 μs
