Keysight N9927-90001 User’s Guide 219
SA (Spectrum Analyzer) Mode
Spectrum Emission Mask (SEM) — (SA Mode Only)
— Spectrum Emission Mask Pass/Fail – A PASS indicates the displayed SEM
is within the current boundaries specified. A FAIL indicates the current
signal fails with the specified parameters.

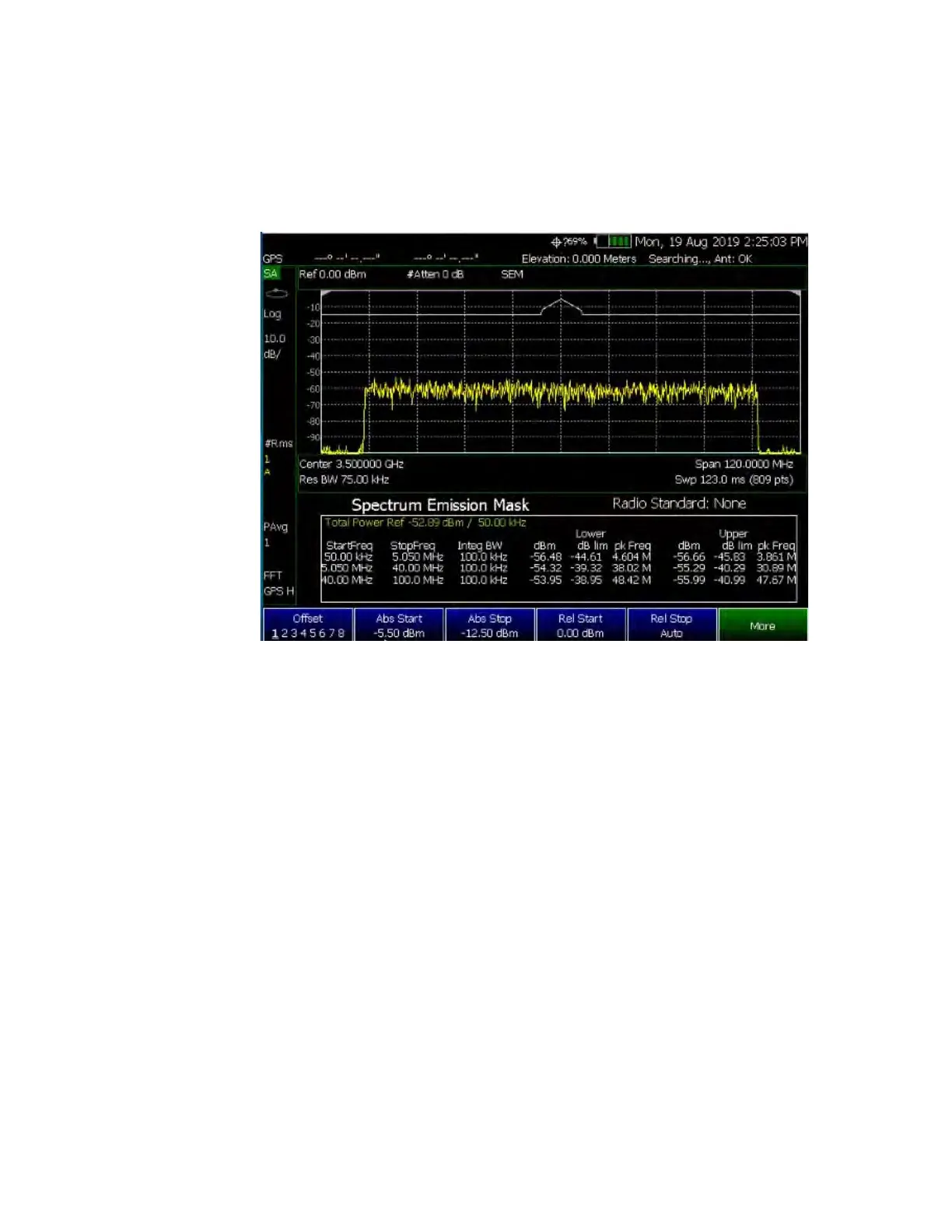

Figure 9-17 SEM Example
