Keysight Technologies J-BERT M8020A Configuration Guide

Available Configurations (continued)
The J-BERT M8020A high-performance BERT is scalable containing:
– BERT modules M8041A, M8051A and M8062A
– Software
– Infrastructure such as chassis and embedded controller
– Accessories
– And services.
The following steps will guide your through configuring a turnkey J-BERT M8020A high-performance BERT.
Step 1 Choose the 1st BERT module – basic selection

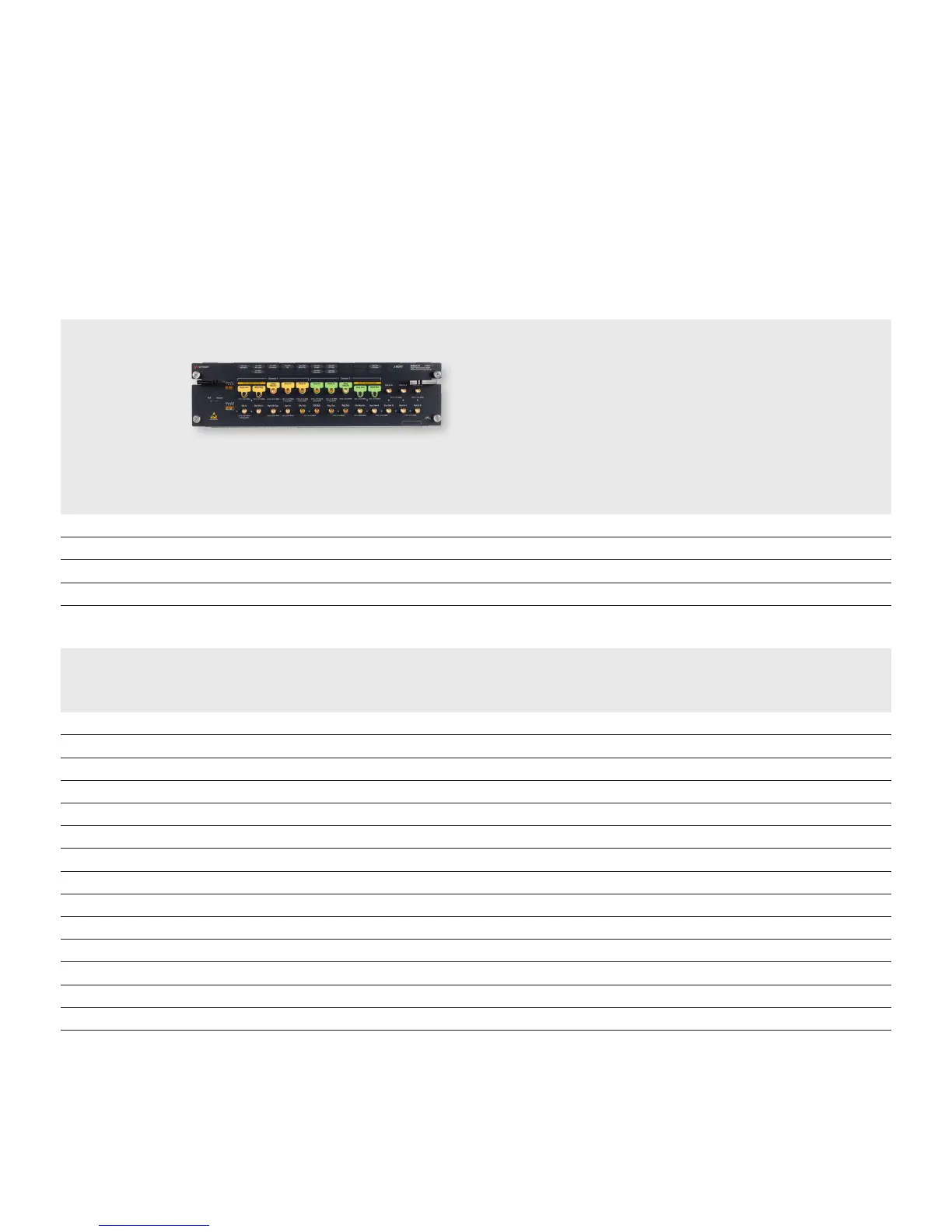

M8041A 8.5/16 Gb/s Generator Analyzer Clock, 3-slot AXIe module
1 selection out of the following 4 options is required
Option Description
M8041A-C08 BERT one channel, data rate up to 8.5 Gb/s
M8041A-C16 BERT one channel, data rate up to 16 Gb/s
M8041A-G08 Pattern generator one channel, data rate up to 8.5 Gb/s
M8041A-G16 Pattern generator one channel, data rate up to 16 Gb/s
Step 2 Choose the 1st BERT module – optional selections
M8041A 8.5/16 Gb/s Generator Analyzer Clock, 3-slot AXIe module
Option Description
M8041A-0A2 Second channel for analyzer, license, only valid if option M8041A-C08 or M8041A-C16 are ordered
M8041A-0A3 Analyzer equalization, module-wide license, only valid if option M8041A-C08 or M8041A-C16 are ordered
M8041A-0G2 Second channel for pattern generator, license
M8041A-0G3 Advanced jitter sources for receiver characterization, module wide license
M8041A-0G4 8-tap de-emphasis, module-wide license
M8041A-0G5 Adjustable Intersymbol Interference (ISI), module wide license
M8041A-0G6 Reference clock input with multiplying PLL, clock group wide license
M8041A-0G7 Level interference sources for receiver characterization, module wide license
M8041A-0S1 Interactive link training for PCI Express 8 GT/s, clock group wide license
1
. Only valid if option C08 or C16 are ordered
M8041A-0S2 SER/FER Analysis for coded and retimed loopback, clock group wide license. Only valid if option C08 or C16 are ordered
M8041A-0S3 Interactive link training for USB 3.0 and USB 3.1, clockgroup-wide license
M8041A-0S4 Interactive link training for PCI Express 8 GT/s and 16 GT/s, clockgroup-wide license
1
M8041A-0S6 SAS-3 transmitter equalization training, module-wide license
1
M8041A-0SX 10GBASE-KR transmitter equalization training, module wide license
1
1. Requires option M8041A-0G4 to allow de-emphasis negotiation.
