Keysight Technologies M9370A Startup Guide

18
Getting Started
STEP 4. Install the Network Analyzer Modules

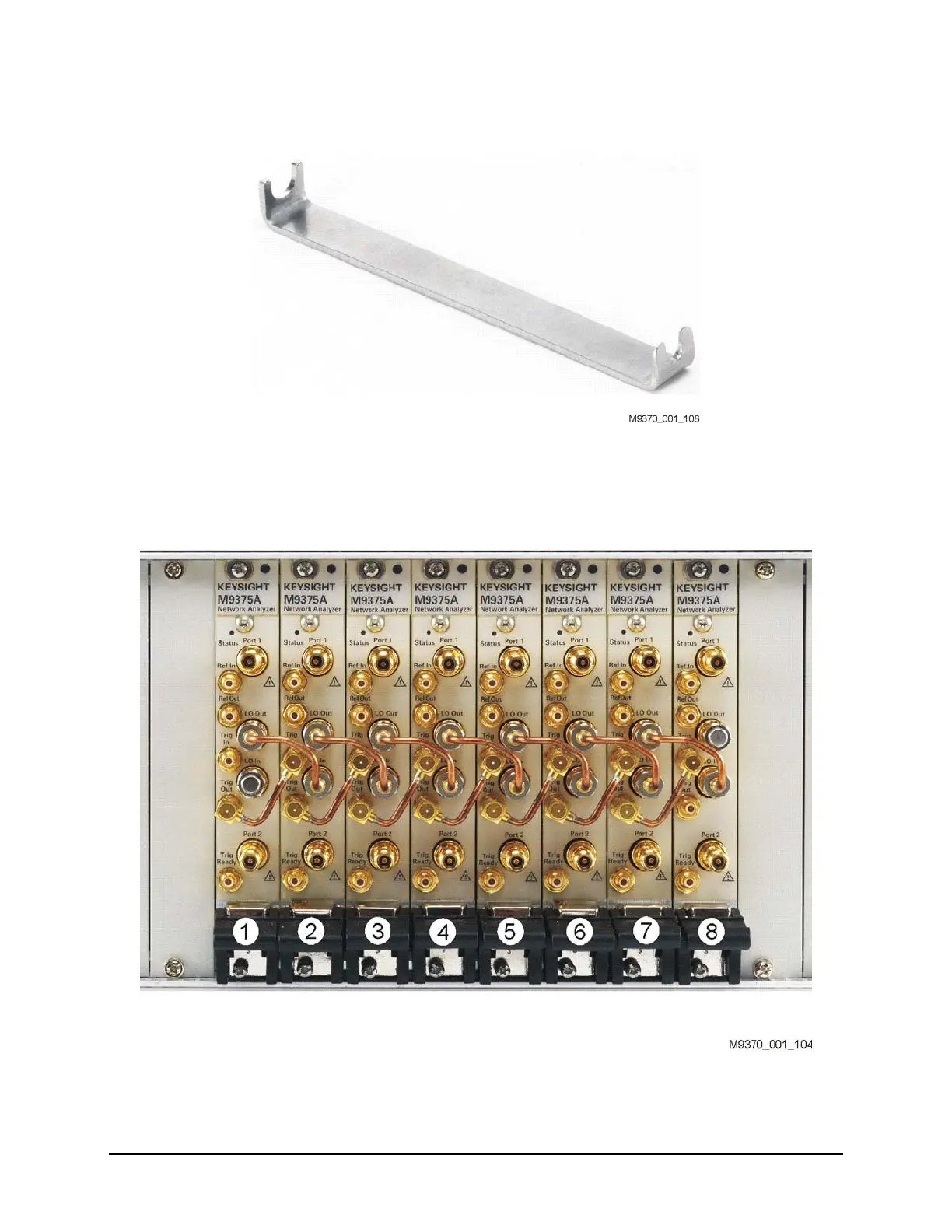

Figure 1-8 Cable Removal Tool (part number 5002-3361)
13.Install a semi-rigid cable (M9370-20006), seen in Figure 1-9, between the
LO Out port and the LO In port on each of the module pairs (1 & 2, 2 & 3, 3
& 4, 4 & 5, 5 & 6, 6 & 7, and 7 & 8), hand tightening the connectors.
Figure 1-9 Installing Semi-Rigid Cable M9370-20006
14.Tighten the semi-rigid cable using the socket adapter, seen in Figure 1-6
on page 16, attached to an 8 in-lb (0.91 N.m) torque driver.
