Microwave PNA Network Analyzer
Simplified test set block diagrams – continued

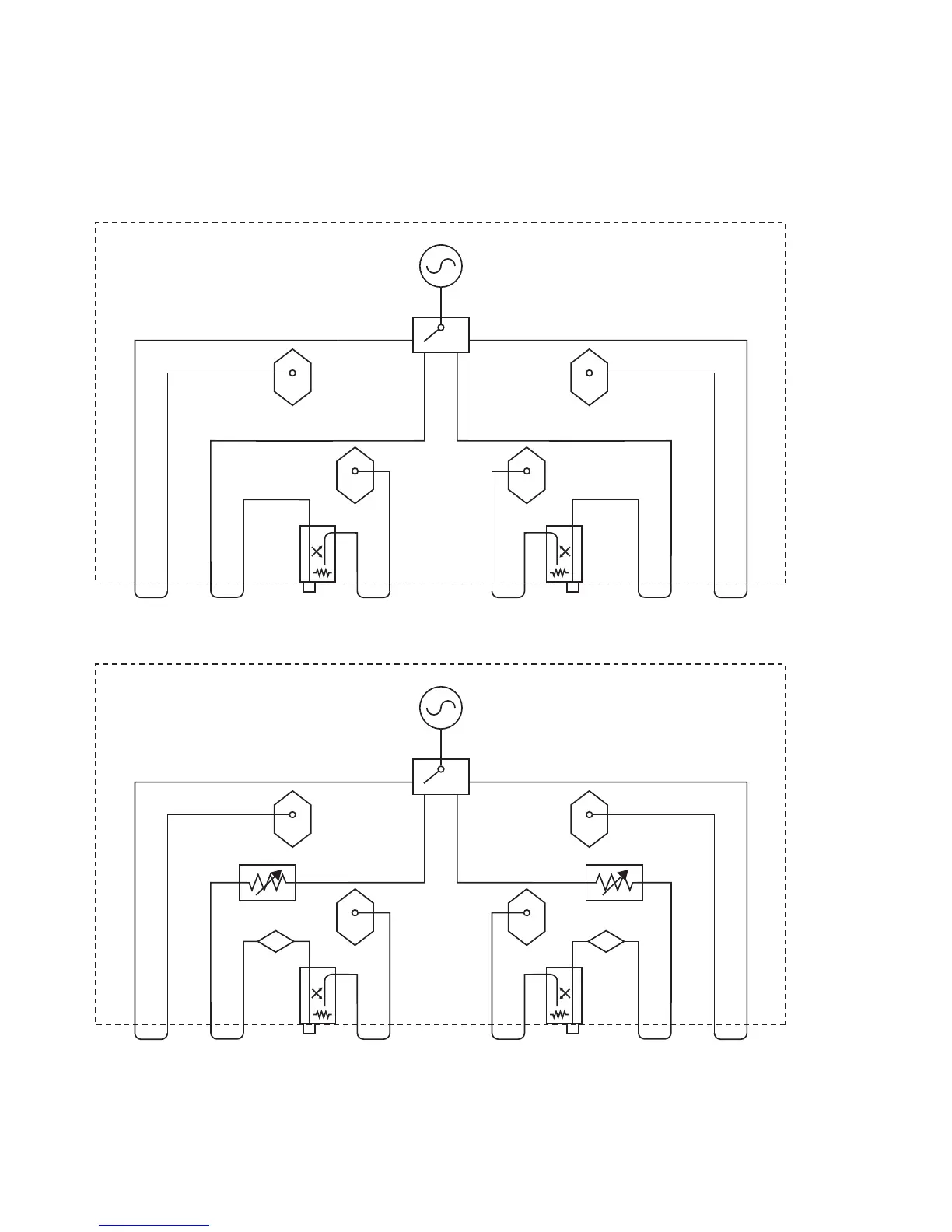

Configurable test set (Option 014)
Source
Switch
Reference
receiver
Reference
receiver
Measurement
receivers
Port 1 Port 2
A
B
R1 R2
Source
Switch
Reference
receiver
Reference
receiver
Measurement
receivers
Port 1 Port 2
Bias-tee
Source attenuator
1
A
Bias-tee
Source attenuator
1
B
R1 R2
1. Source attenuator for E8362/3 /4B is 60 dB in 10 dB steps.
Source attenuator for E8361A is 50 dB in 10 dB steps.
Configurable test set with extended power range and bias-tees (Option UNL and 014)
