26
Network analyzer
test set
Network analyzer
test set
Test port
adapter
Device
under
test
Single cable
Device
under
test
Cable set
Measurement Accessories
A complete list of RF and microwave test accessories
is available on our Web site:
www.keysight.com/find/accessories
Accessories are available in these connector types:
50 ohm Type-N, 3.5 mm, 7 mm, 2.4 mm, 2.92 mm, 1.85
mm, 1.0 mm,
and waveguide. Test port cables and a calibration kit
should be added for a complete measurement system.
A verification kit is used to verify corrected system
performance.
Cables and adapter sets
Keysight offers cables in the following types:
– Single cables in semi-rigid and flexible
– Cable sets in semi-rigid and flexible
There are also adapter sets available that protect the
test port and convert the port to the desired connector
interface. These kits contain:
– One male adapter
– One female adapter

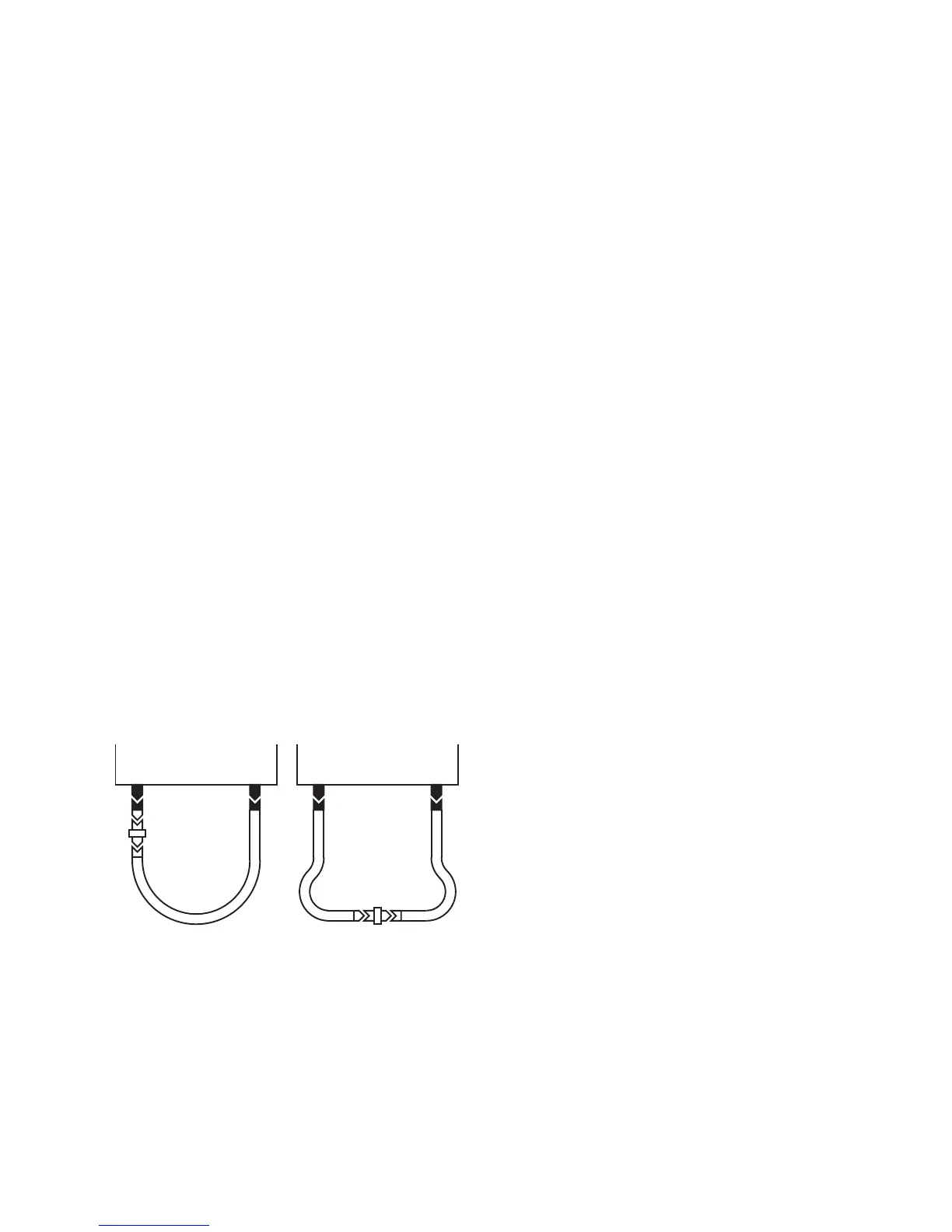

To attain the best mechanical rigidity for device connec-
tion, use a single cable and the appropriate special adapter
set. To attain the greatest flexibility for device connection,
use a cable set.
Calibration kits
Coaxial measurements
Mechanical calibration kits include standards, such as
opens, shorts and loads, which are measured by the
network analyzer for increased measurement accuracy.
Electronic calibration (ECal) kits replace mechanical
calibration standards with one solid-state calibration
module that is controlled by the network analyzer via USB,
to present many different impedances to the test ports. A
full two-port calibration can be performed quickly with a
single connection. This technique reduces operator errors
and connector wear and abrasion.
Choose a calibration kit for each connector type to be
used.
Economy, includes:
– Open standards (male and female)
– Short standards (male and female)
– Fxed-termination standards (male and female)
Standard, includes the devices in the economy kit and adds:
– Sliding load standards (male and female) or a series of offset shorts
Precision, includes the devices in the economy kit and adds:
– 50 ohm airline(s) for TRL calibration
– TRL adapters
Waveguide measurements
For waveguide measurements, Keysight offers mechanical
calibration kits that include:
– Waveguide-to-coax adapters (X, P, K, R, Q, U, V)
– Precision waveguide section
– Flush short circuit
– Fixed terminations
– Straight section
