6 Installation Note N9020-90181
Option LNP or Option MPB Installation Kit

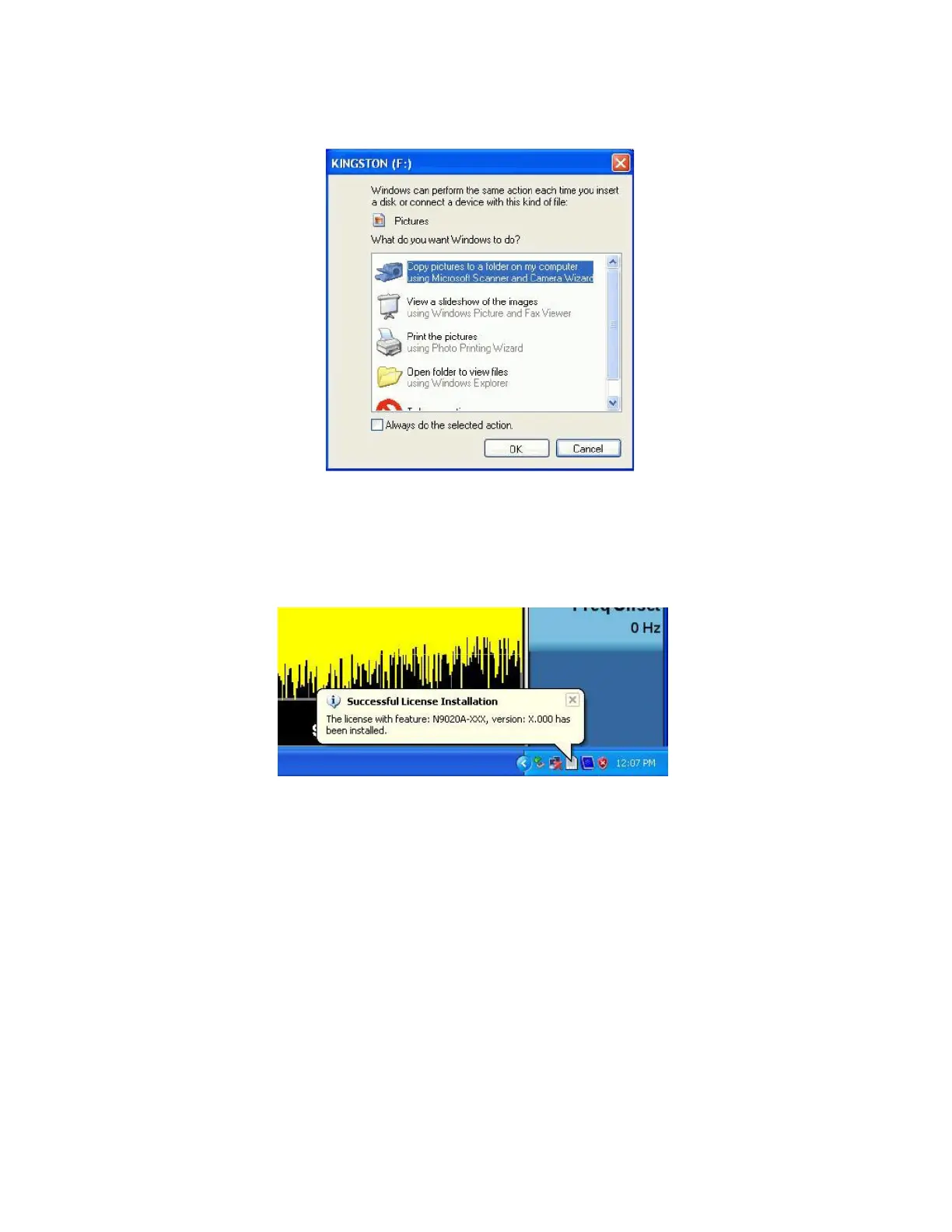

Figure 1 USB Storage Device Configuration Menu
7. The signal analyzer will automatically consume the License File. (This may take a few minutes)
When the License File is consumed the Keysight License Manager will display a “Successful
License Installation” message as shown in Figure 2.
Figure 2 Successful License Installation
Alternate Installation Procedure
The License File can be manually installed over USB or LAN by placing the license file in the
following folder on the signal analyzer
C:\Program Files\Agilent\licensing
Verify the Installation
1. Cycle the instrument power and allow the instrument to boot to the measurement screen.
2. Press System, Show, System to display a list of installed options.
3. Verify that Options LNP and MPB appear on the list.
