Keysight Technologies
N5262BWxx/BTxx/BRxx/DRxx
Mini VNAX Frequency Extension Modules
The Keysight N5262BWxx Transceiver Modules (Tx/Rx), N5262BRxx Receiver Modules (Rx), N5262BTxx
Transmitter (TxRef) Modules, and N5262DRxx Dual Receiver Modules (RX) are manufactured by Virginia
Diodes, Inc. (VDI). These modules may be used with the Keysight N5222/24/25/27A/B PNA or
N5242/44/45/47A/B PNA-X, or the Keysight N5261/62A or N5292A Controller to configure a banded
millimeter-wave network analyzer system.
Specifications for the VNAX products can be found in the VDI User's Guide (VDI-707.1), or on the VDI
web page.
Refer to the VDI User’s Guide (VDI-707.1) included on the USB drive or the VDI web site: https://
www.vadiodes.com/images/Products/VNA/Product_Manual/VDI-707.1-VNAx-Product-Manual.pdf.
N5262BWxx transceiver modules have both a source and measurement receiver and can be used with
the network analyzer to make S-parameter reflection measurements. Another transceiver or receiver
module is required to make transmission measurements. Transceiver modules are also known as
transmission/reflection modules.
N5262BTxx transmitter modules have only a source and a reference receiver. They can be used with
the network analyzer to make S-parameter transmission measurements only and require a receiver
module or a transceiver module to complete the network analyzer system.
N5262BRxx receiver modules have only a measurement receiver. They can be used with the network
analyzer to make S-parameter transmission measurements only and require a transmitter module or a
transceiver module to complete the network analyzer system.
N5262DRxx dual receiver modules have two input test ports (measured receivers) using only one LO
input. They require two transmitter or transceiver modules to complete a mm-wave network analyzer
system for S-parameter or antenna measurements.

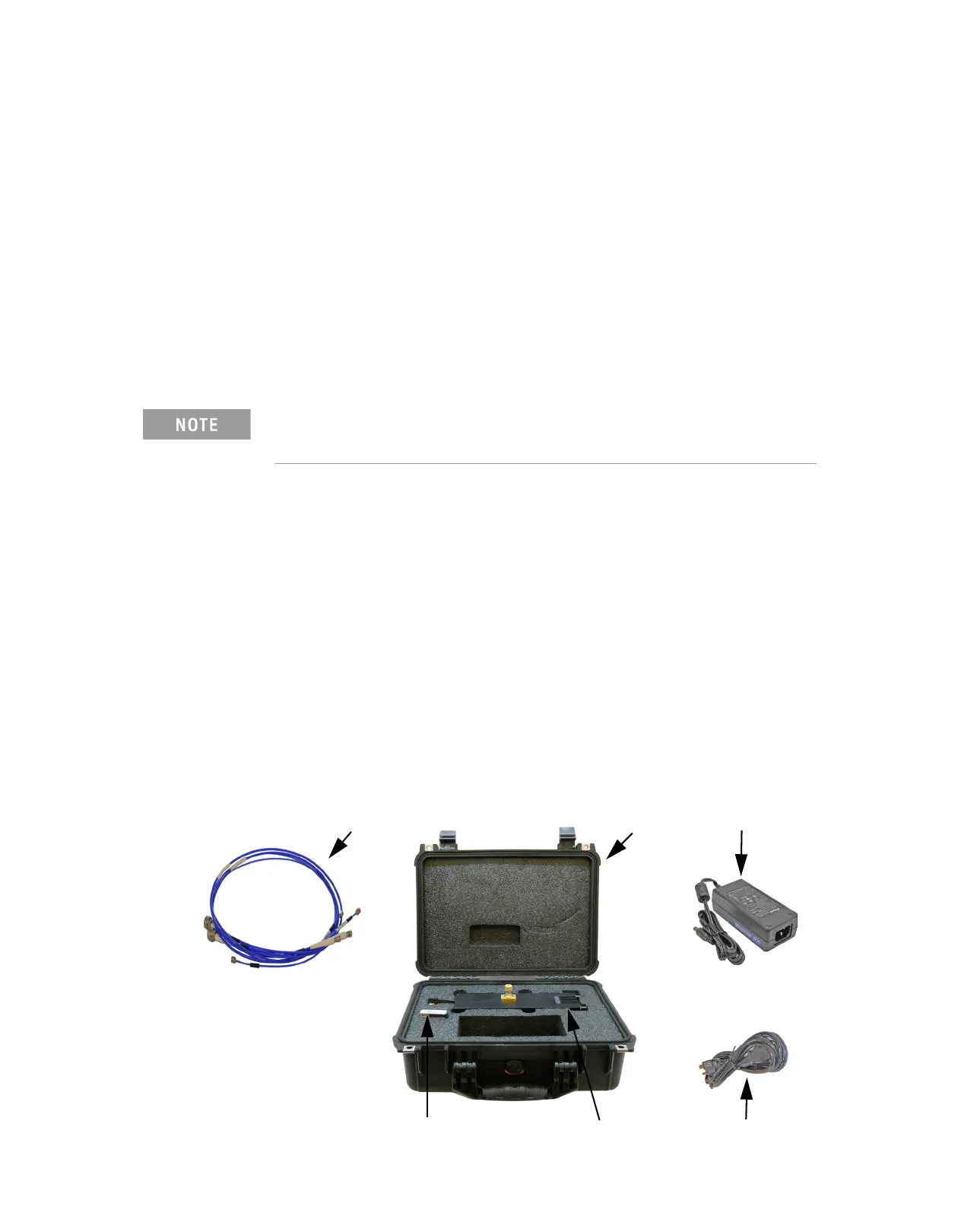

Figure 1
Cable Set
Tran
sport Case
VDI Module
Power Supply
AC Power Cable
USB Drive
Keysight N5262BW/BT/BR/DRxx Product Note
Some modules require IF gain to be set lower than stated in the VDI User's Guide
when using with the N5292A. Set IF gain in the millimeter Module Configuration
when setting up the system to as low as 0 dB to avoid a receiver overload error.
