Kia RIO 2020 User Manual

Maintenance
988
Light bulbs
5. Remove the bulb from the socket
by pressing it in and rotating it
counter-clockwise until the tabs
on the bulb align with the slots in
the socket. Pull the bulb out of
the socket.
6. Insert a new bulb by inserting it
into the socket and rotating it
until it locks into place.
7. Install the socket in the assembly
by aligning the tabs on the socket
with the slots in the assembly.
Push the socket into the assem
-
bly and turn the socket clockwise.
8. Connect the front fog lamp con
-
nector.
9. Install the front bumper side
assembly to the body of the vehi
-
cle.

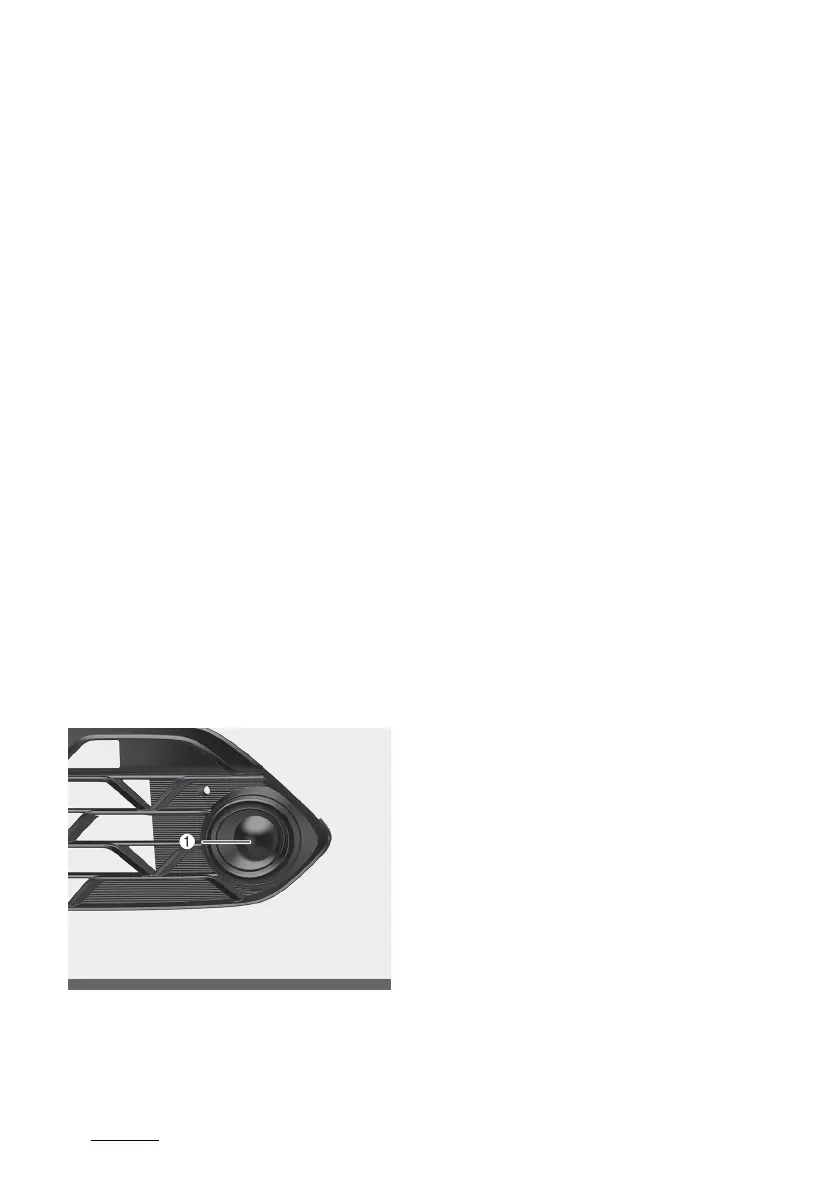

Front fog lamp (Bulb type) bulb
replacement (Type B)
Fog lamp - Type B
1. Disconnect the negative (-) bat
-
tery terminal.
2. Remove the engine under cover.
3. Disconnect the front fog lamp
connector.
4. Remove the socket from the
assembly by turning the socket
counterclockwise until the tabs on
the socket align with the slots on
the assembly.
5. Remove the bulb from the socket
by pressing it in and rotating it
counter-clockwise until the tabs
on the bulb align with the slots in
the socket. Pull the bulb out of
the socket.
6. Insert a new bulb by inserting it
into the socket and rotating it
until it locks into place.
7. Install the socket in the assembly
by aligning the tabs on the socket
with the slots in the assembly.
Push the socket into the assem
-
bly and turn the socket clockwise.
8. Connect the front fog lamp con
-
nector.
9. Install the engine under cover
assembly to the body of the vehi
-
cle.
OYB070153L
