Features of your vehicle
40
4

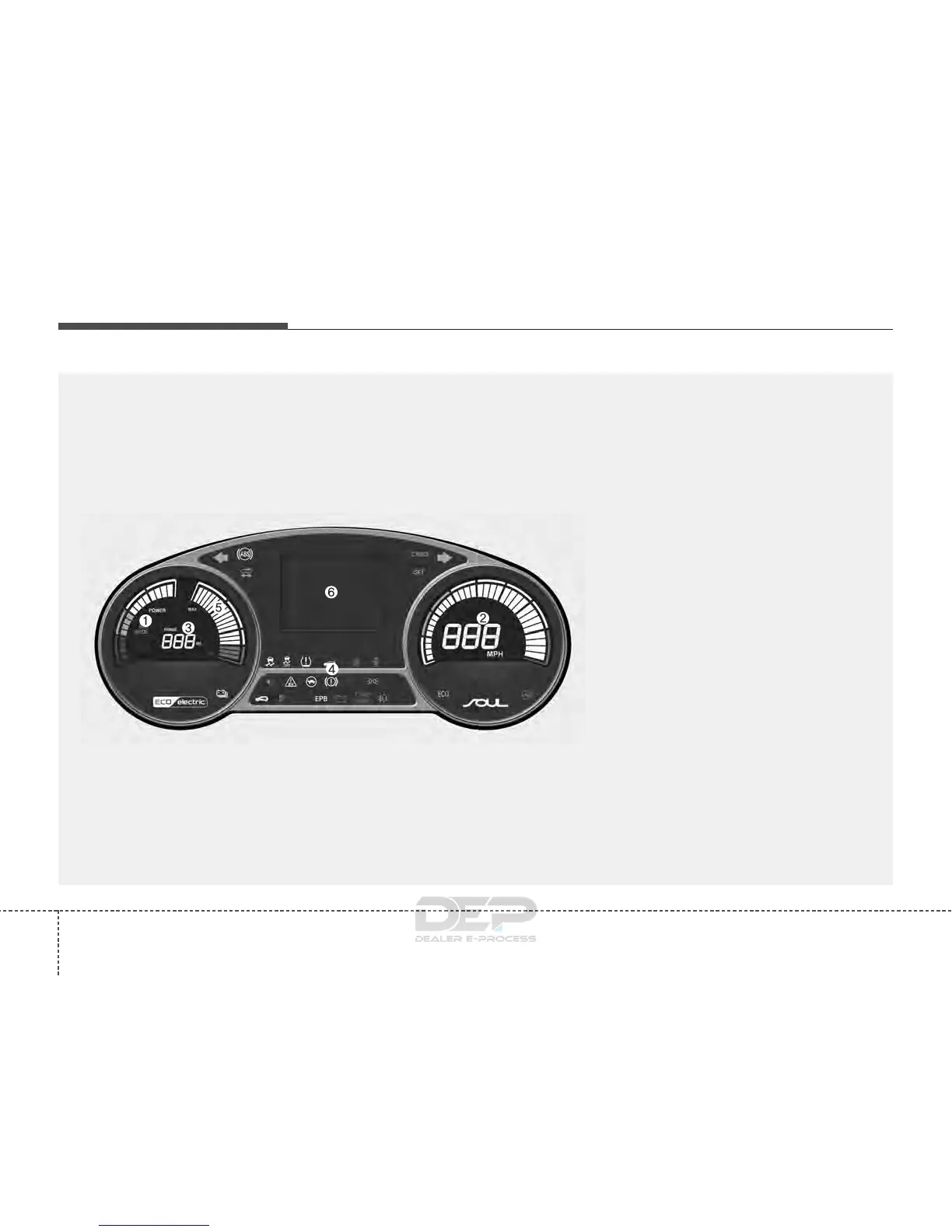

INSTRUMENT CLUSTER
1.
Motor operation gauge
2.
Speedometer
3.
Range meter
4.
Warning and indicator lights
5.
State of charge gauge
6.
LCD display
OPSE044300N
❈
The actual cluster in the vehicle ma
y diff
er
from the illustration.
For more details
, ref
er to the "Gauges" in
this chapter
.
169
171
Table of Contents
