14
When charging the high voltage bat-
tery, the charge level can be checked
from outside the vehicle.
■■
Normal charging and trickle
charging
■■
Quick charge
Charging Status
Information
OPSE0Q4008

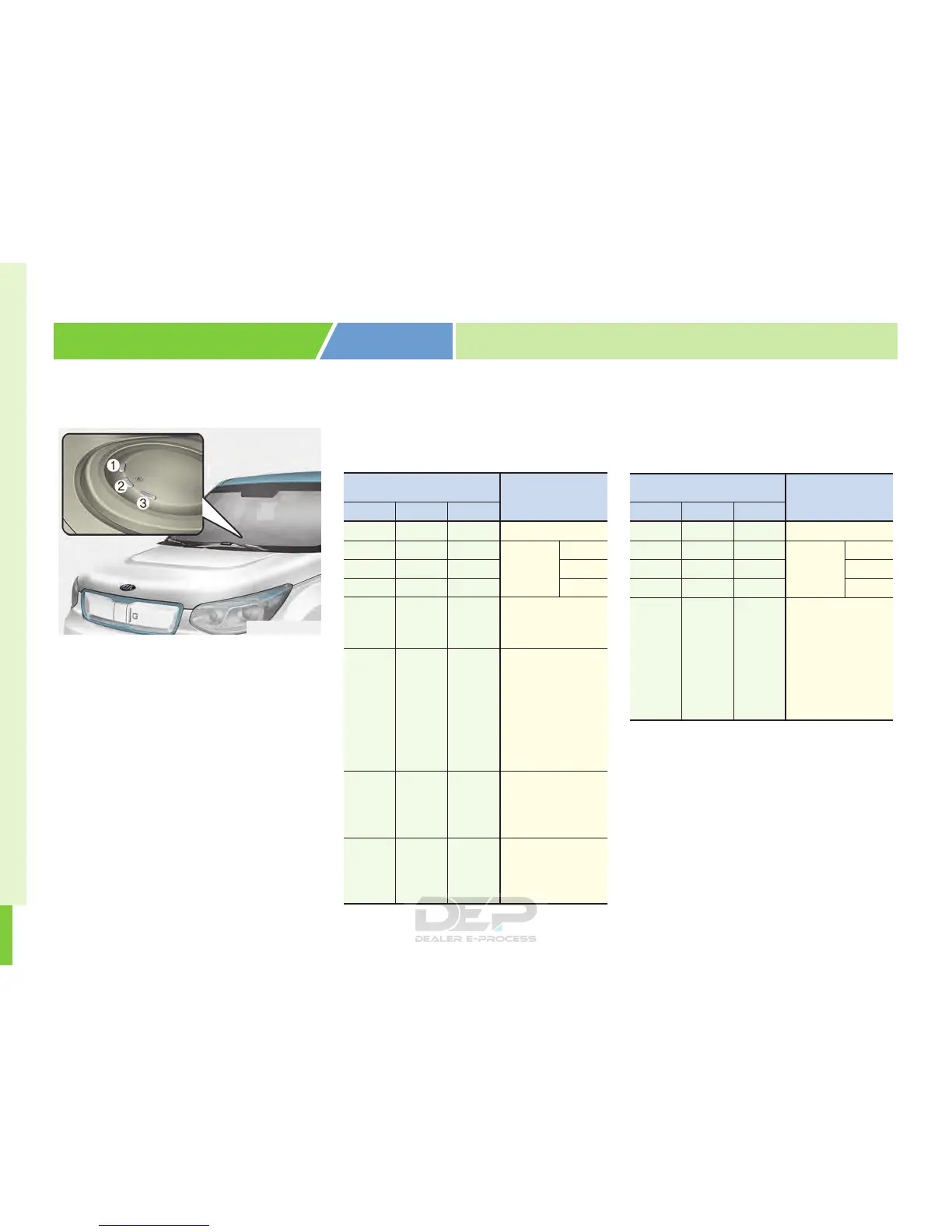

CHARGE INDICATOR LAMP FOR
ELECTRIC VEHICLE
Operation of Charging
Indicator Lamp
Details
(1) (2) (3)
(OFF) (OFF) (OFF)
Not Charged
Blinking
(OFF) (OFF)
Charging
0~33%
(ON)
Blinking
(OFF)
34~66%
(ON) (ON)
Blinking 67~99%
(ON) (ON) (ON)
Charging complete
(100%)(turns OFF
in 3 seconds)
Blinking Blinking Blinking
Error while charg-
ing /If charging
cables are con-
nected when the
vehicle is in the
ready mode or the
POWER button is
in the ON position.
(OFF) (OFF)
Blinking
Charging 12 V aux-
iliary battery or
reserved air condi-
tioner is operating
(OFF)
Blinking
(OFF)
Reserved charging
is operating
(turns OFF after 3
minutes)
Operation of Charging
Indicator Lamp
Details
(1) (2) (3)
(OFF) (OFF) (OFF)
Not Charged
Blinking
(OFF) (OFF)
Charging
0~33%
(ON)
Blinking
(OFF)
34~66%
(ON) (ON)
Blinking 67~94%
Blinking Blinking Blinking
Error while charg-
ing /If charging
cables are con-
nected when the
vehicle is in the
ready mode or the
POWER button is
in the ON position.
