Kia Stonic - Position Lamp; Day Time Running Lamp Bulb Replacement (Headlamp Type A); Headlamp (Low;High Beam) Bulb Replacement (Headlamp Type B)

4. Insert
a new bulb by inserting it in‐
to the bulb-socket and rotating it
until it locks into place.
5. Install the socket in the headlamp
assembly by aligning the tabs on
the bulb-socket with the slots in
the assembly. Push the bulb-sock‐
et into the headlamp assembly and
turn the socket clockwise.
Position lamp / Day time
running lamp bulb r
eplacement
(Headlamp Type A)

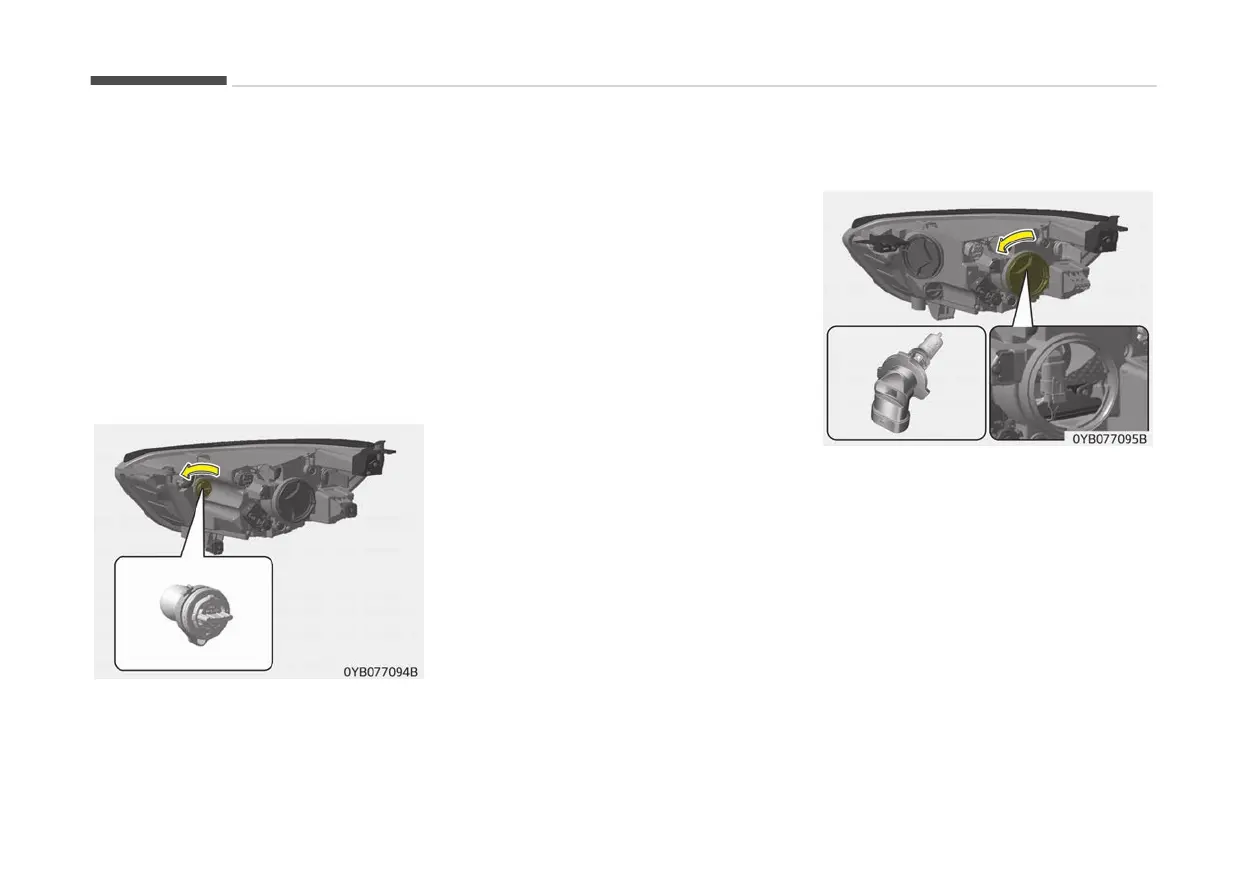

1. Open the hood.
2. Remov
e the bulb-socket from the
headlamp assembly by turning the
bulb-socket counterclockwise until
the tabs on the bulb-socket align
with the slots on the headlamp as‐
sembly.
3. Remove the bulb from the bulb-
socket by pressing it in and rotat‐
ing it counterclockwise until the
tabs on the bulb align with the slots
in the bulb-socket. Pull the bulb out
of the bulb-socket.
4. Insert a new bulb by inserting it in‐
to the bulb-socket and rotating it
until it locks into place.
5. Install the socket in the headlamp
assembly by aligning the tabs on
the bulb-socket with the slots in
the assembly. Push the bulb-sock‐
et into the headlamp assembly and
turn the socket clockwise.
Headlamp (Low/High beam) bulb
replacement (Headlamp Type B)
1. Open the hood.
2. Remov
e the headlamp bulb cover
by turning it counterclockwise.
3. Disconnect the headlamp bulb
socket-connector.
4. Remove the bulb-socket from the
headlamp assembly by turning the
bulb-socket counterclockwise until
the tabs on the bulb-socket align
with the slots on the headlamp as‐
sembly.
