Assembly Instructions

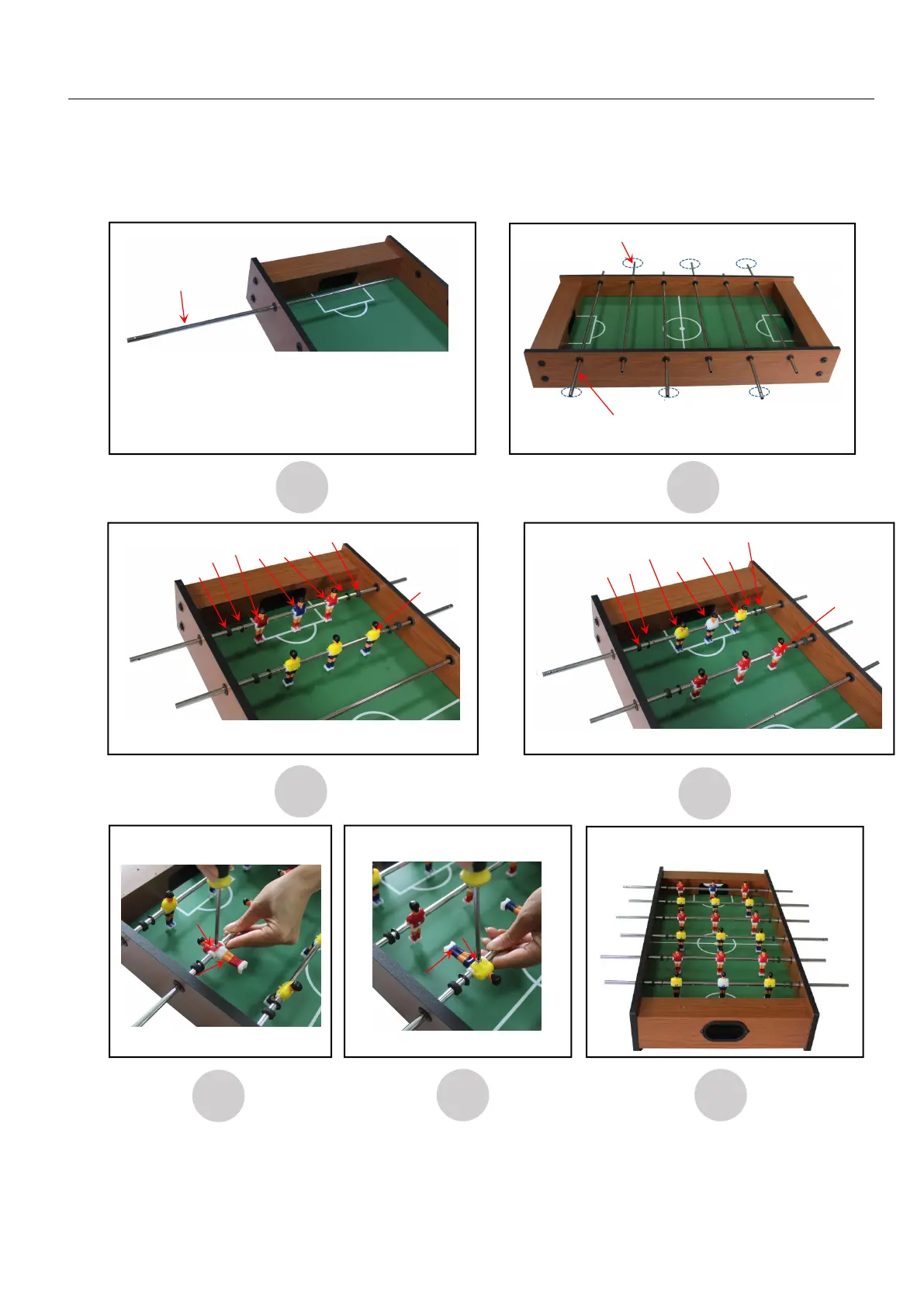

4. INSERT THE PLAYER ROD C1 THROUGH ONE SIDE PANEL,THEN INSERT PLAYERS C5&C6&C7&C8,
EVA BUSHINGS C2 ,PLASTIC WASHERS C3 THROUGH THE ROD,THEN INSERT THE PLAYER ROD THROUGH
THE OTHER SIDE PANEL, ATTACH THE PLAYERS C5&C6&C7&C8 WITH SCREW C4. SEE FIGURE 4-10.
4
5
6
7
C1
hole
C6
C3
C1
C2
C3
C2
C7
C5
C5
C4
C7
C4
C5
8
9
10
C2
C3
C2
C5
C7
C7
C8
C3
