KICK Galaxy - Attaching Legs and Base Structure

KICKFoosballTables.com I (866)-844-KICK (5425) I support@kickfoosballtables.com
8

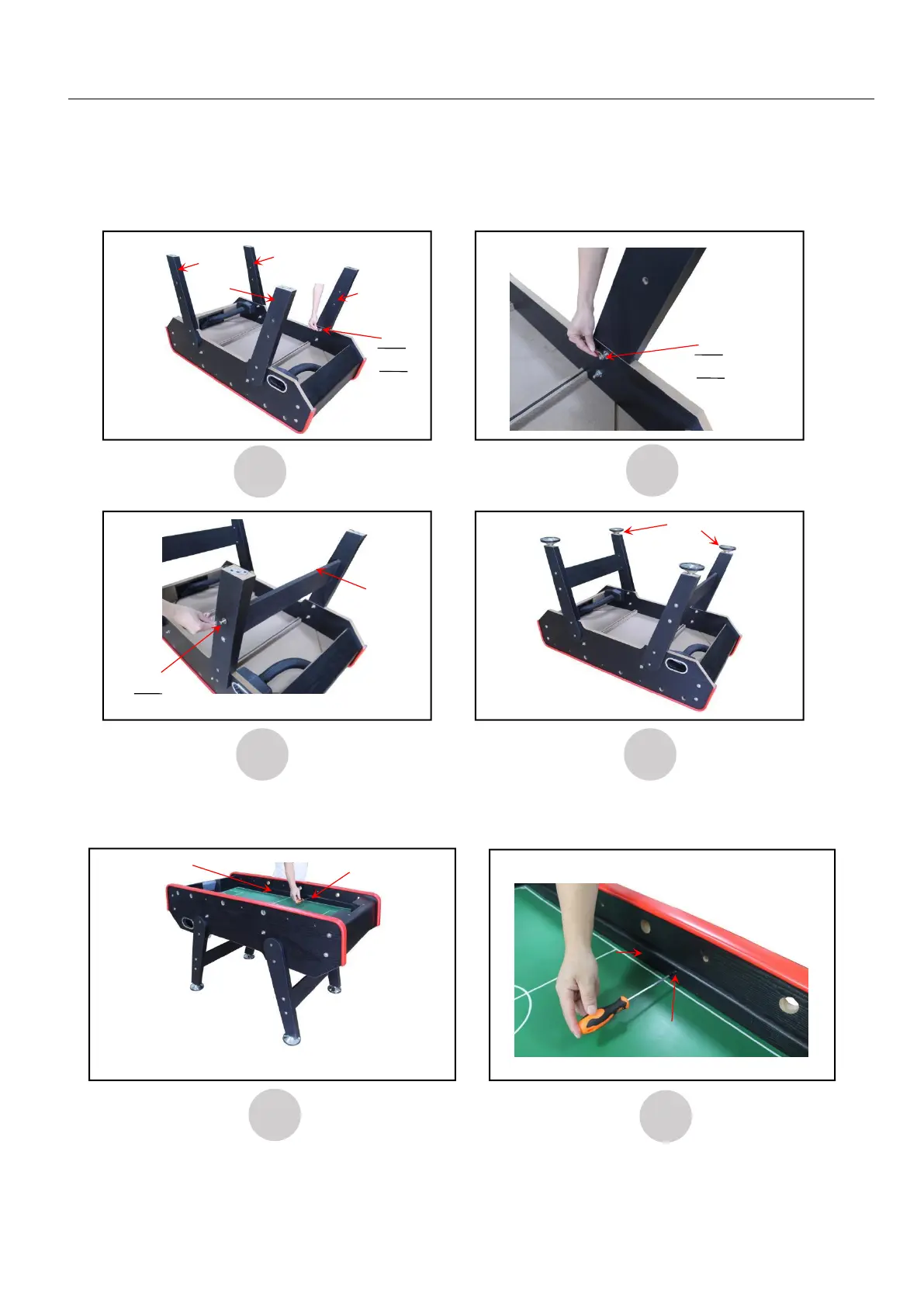

Assembly Instructions
10. ATTACH RIGHT LEG P6A AND LEFT LEG P6B TO SIDE PANEL WITH BOLT H6, WASHER H7 AND NUT
H8.SEE FIGURE 14-15.
11. ATTACH LEG PANEL P7 TO LEG WITH BOLT H9 AND WASHER H10.SEE FIGURE 16.
12. ATTACH LEG LEVELER P12 TO LEG .SEE FIGURE 17.
13. ATTACH DECORATIVE STRIP P8 TO SIDE PANEL WITH SCREW H11.SEE FIGURE 18-19.
18
19
P8
14
16
15
H11
P8
P6A
P6A
P6B
H8
H7
H6
P7
P6B
H10
H9
H8
H7
H6
17
P12
H11
