Assembly Instructions

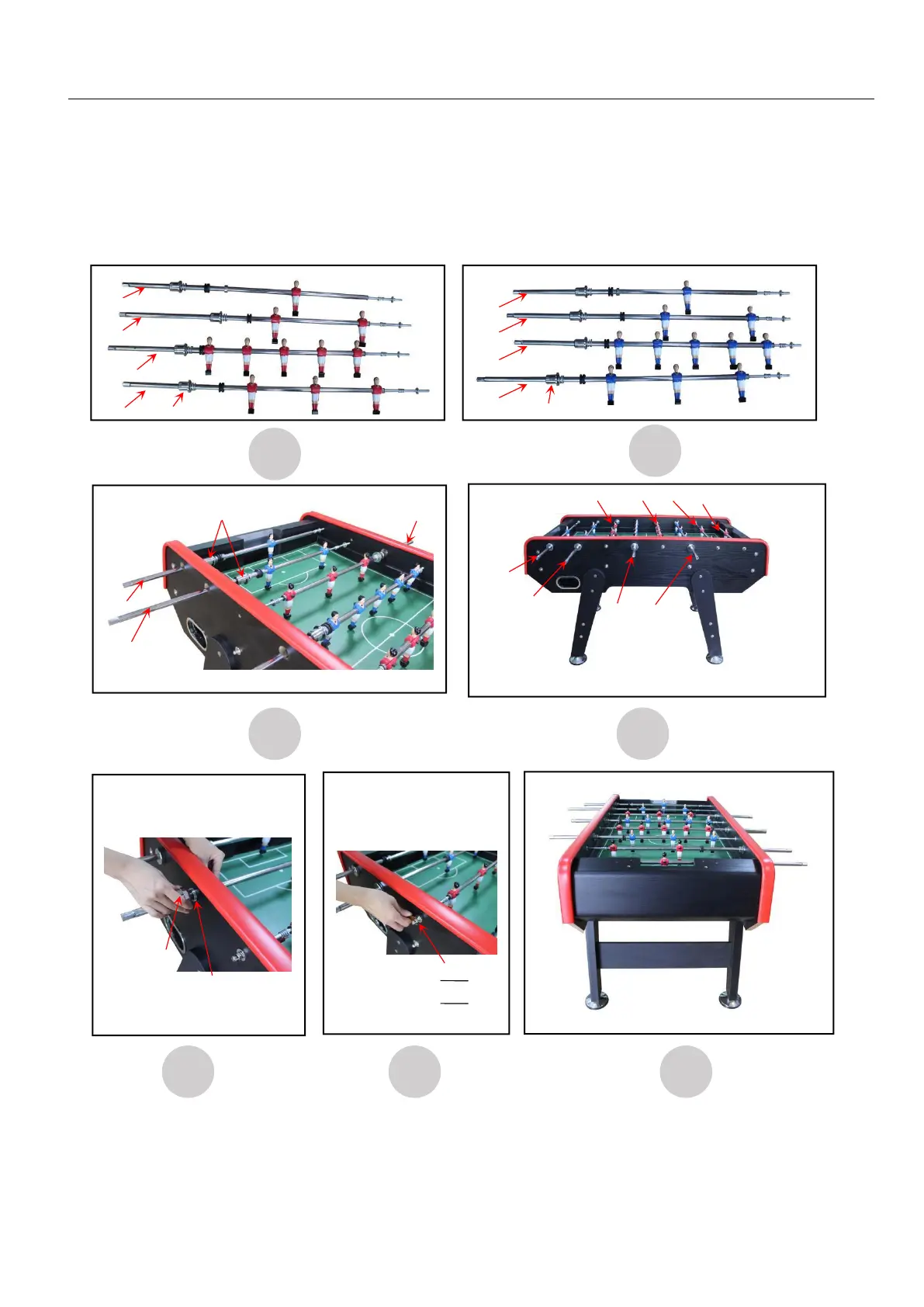

14. INSERT THE PLAYERS ROD C1-C8 THROUGH BEARING A P13.SEE FIGURE 20-21.
15. INSERT THE PLAYERS ROD C1-C8 THROUGH SIDE PANEL .SEE FIGURE 22-23.
16. ATTACH BEARING A P13 AND BEARING B P14 TO SIDE PANEL .SEE FIGURE 24.
17. ATTACH PLAYERS ROD C1-C8 TO SIDE PANEL WITH WASHER H2, ELASTIC WASHER H4 AND NUT H3.
SEE FIGURE 25.
20
24
21
22
23
25
26
C1
C2
P13
C4
C3
P13
C5
C6
C7
C6
C8
C5
C4
P13
C5
C8
C7
C6
C1
C2
C3
C4
H2
H4
H3
P14
P13
