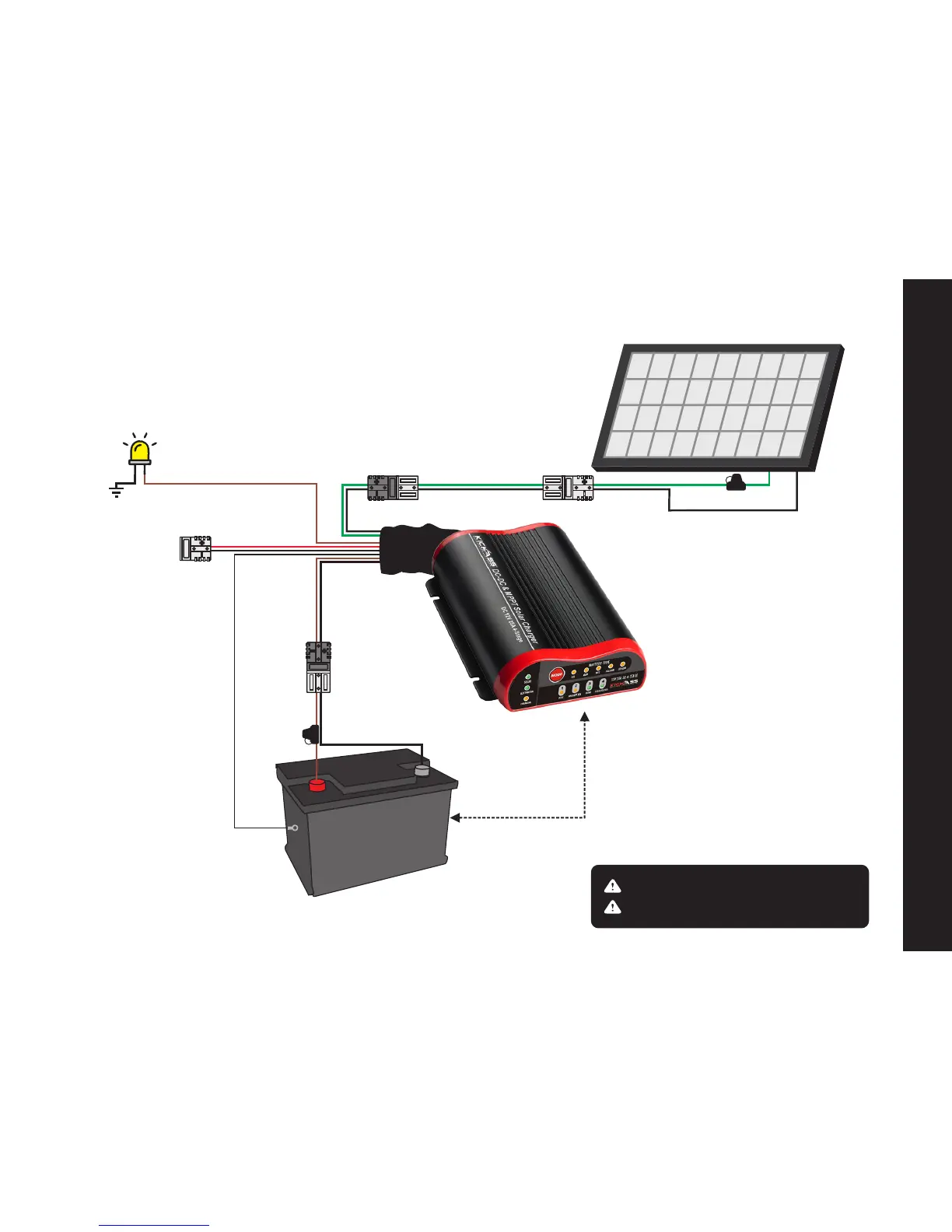

WIRING DIAGRAM - SOLAR PANEL ONLY
CAUTION: Max solar input should be 25 Amp
CAUTION: Always ensure fuses are installed
Recommended products for easy installation
(not included):
KAMAXIFHAND - Kickass Inline Maxi Fuse Holder
with Anderson Style Plug
KA8M5-A2A - KickAss 8B&S 5.5M Anderson Style
Extension Lead
AUXILIAR
Y
BATTERY
25 AMP FUSE
MOUNT DC-DC CHARGER
AS CLOSE AS POSSIBLE
TO THE AUXILIARY BATTERY
KICKASS 5.5M EXTENSION
LEAD - KA8M5-A2A
SOLAR PANEL
2
BROWN - EXTERNAL LED 1.5mm
BLACK - TEMPERATURE SENSOR
KICKASS INLINE
MAXIFUSE
- KAMAXIFHAND
10
OUTPUT
SOLAR
ALT. IN
