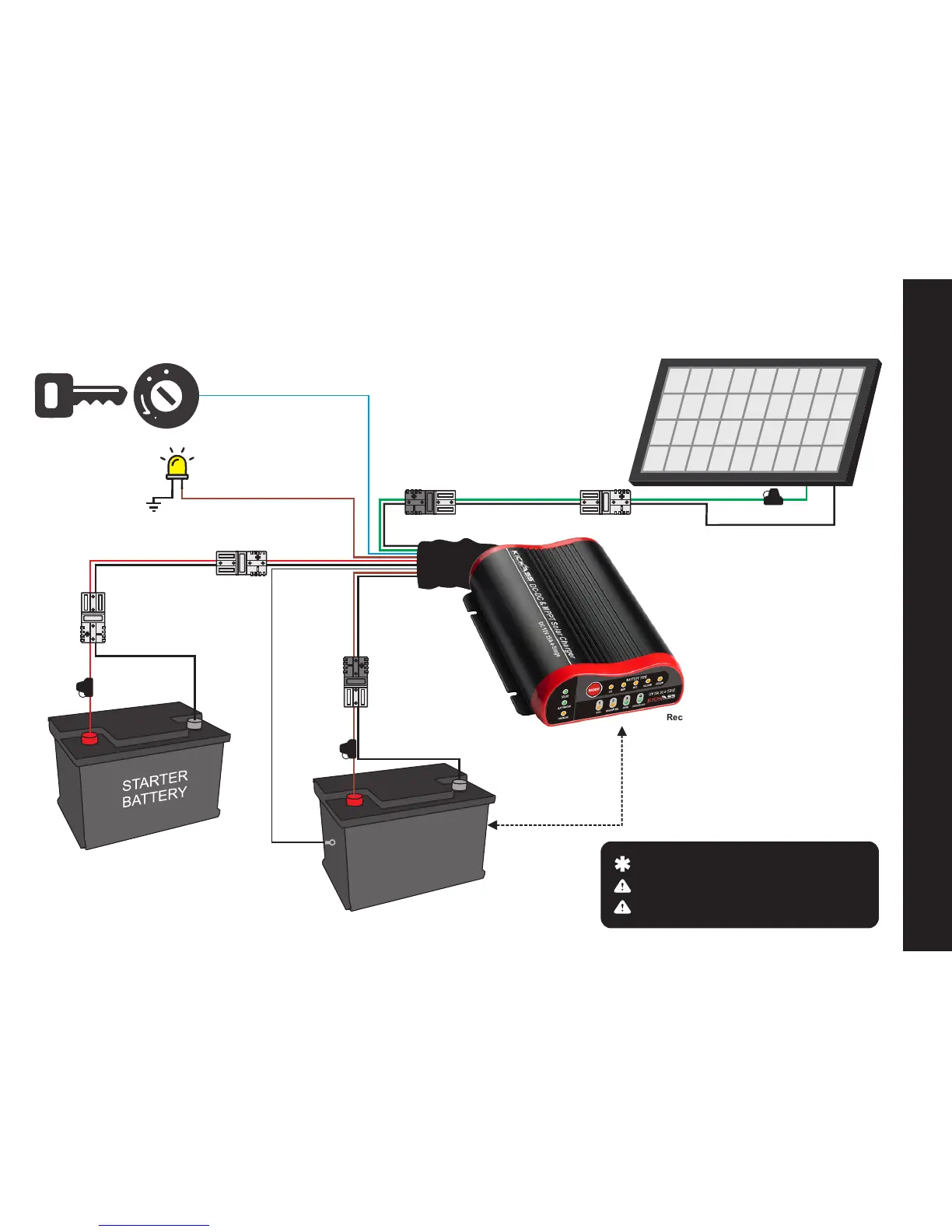

WIRING DIAGRAM - KADCDC25A-AND
NOTE: Ignition override used only if required
CAUTION: Max solar input should be 25 Amp
CAUTION: Always ensure fuses are installed
Recommended products for easy installation
(not included):
KAMAXIFHAND - Kickass Inline Maxi Fuse Holder
with Anderson Style Plug
KADBWK8MMPP - KickAss Plug and Play dual
battery wiring kit
KA8M5-A2A - KickAss 8B&S 5.5M Anderson Style
Extension Lead
AUXILIAR
Y
BA
TTERY
2
BLUE - IGNITION OVERRIDE 1.5mm
2
BROWN - EXTERNAL LED 1.5mm
BLACK - TEMPERATURE SENSOR
KICKASS DUAL BATTERY
WIRING KIT - KADBWK8MMPP
KICKASS 5.5M EXTENSION
LEAD - KA8M5-A2A
KICKASS INLINE
MAXIFUSE
- KAMAXIFHAND
KICKASS INLINE
MAXIFUSE
- KAMAXIFHAND
25 AMP FUSE
MOUNT DC-DC CHARGER
AS CLOSE AS POSSIBLE
TO THE AUXILIARY BATTERY
SOLAR PANEL
9
OUTPUT
SOLAR
ALT. IN
