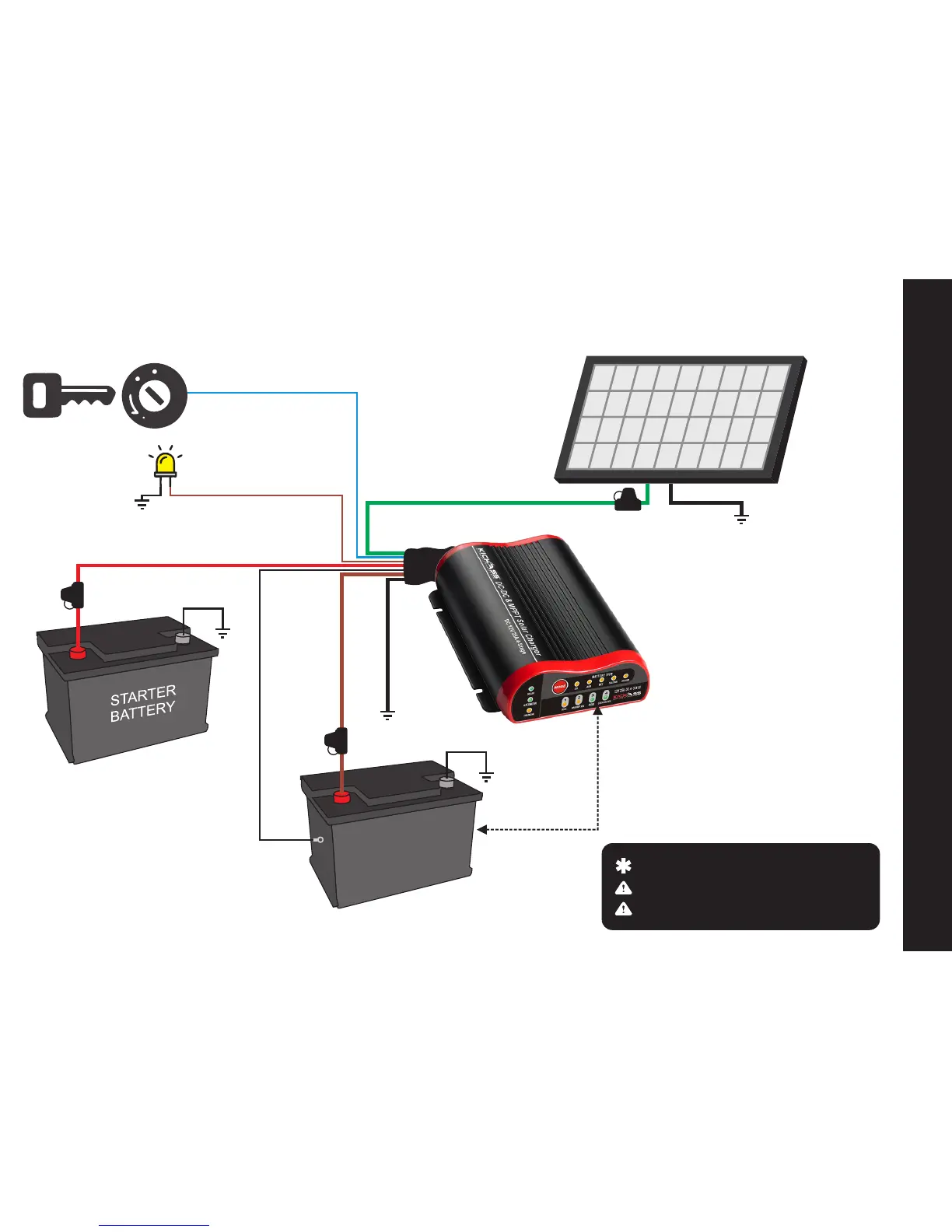

TYPICAL WIRING DIAGRAM
NOTE: Ignition override used only if required
CAUTION: Max solar input should be 25 Amp
CAUTION: Always ensure fuses are installed
Recommended products for easy installation
(not included):
KAFUSE - KickAss 50 Amp Auto Reset Cicuit
Breaker
KACB50P - KickAss 50 Amp Hi Amp Manual
Reset Circuit Breaker
KAMAXIFHAND - Kickass Inline Maxi Fuse Holder
with Anderson Style Plug
KADBWK8MMSC - KickAss Dual Battery Wiring
Kit
KA8M5-A2A - KickAss 8B&S 5.5M Anderson Style
Extension Lead
AUXILIAR
Y
BA
TTERY
2
GREEN - SOLAR 8mm
2
BLUE - IGNITION OVERRIDE 1.5mm
2
BROWN - EXTERNAL LED 1.5mm
5OAMP
FUSE
2
RED - ALTERNATOR/STARTER BATTERY 8mm
BLACK - TEMPERATURE SENSOR
5OAMP
FUSE
BROWN
2
AUXILIARY BATTERY 8mm
GROUND/CHASIS
SOLAR PANEL
GROUND/CHASIS
GROUND/CHASIS
GROUND/CHASIS
25AMP
FUSE
MOUNT DC-DC CHARGER
AS CLOSE AS POSSIBLE
TO THE AUXILIARY BATTERY
8
