8

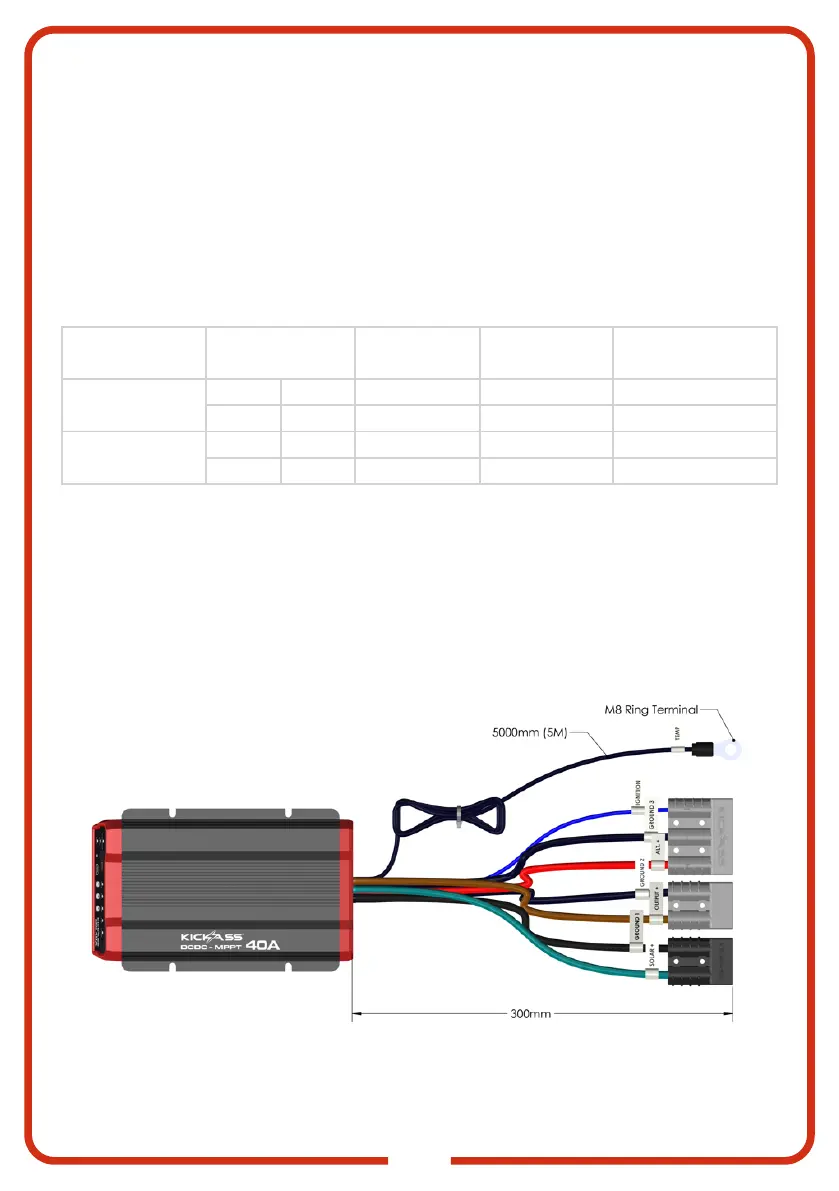

WIRING SIZE
To make sound electrical connections, the battery cable should be the correct size and the correct
terminals should be crimped or soldered.
Note:
• Always use a fuse in-line for all connections to the starter and aux battery!
• The input and output negative cables labeled Ground 3 and Ground 2 should be
connected at the battery negative poles for improved performance.
For more information or assistance, see installation videos at kickassproducts.com.au
CABLE SIZING
The table below outlining the required cable size for a given install length.
Please refer to this table for Vehicle Input, Solar Input, Ground and Battery Output cable thickness
requirements. Always choose a wire cross sectional area equal to or greater than what is specified
below.
Part Number
KADCDC20A-AND
KADCDC40A-AND
Cable Install Length
meter(m) feet(ft)
1 - 6.5
6.5 - 8
3 - 21
12 - 26
1 - 6.5 3 - 21
6.5 - 8 21 - 26
Recommended
Wire Cross
Section (mm²)
Closest
(BAE, B&S, AWG)
7.71
13.56
13.56
13.56
8
6
6
6
Recommend KickAss
Wiring Kit
KAPRDBWK8MMPP
KAHDDBWKPP80
KAHDDBWKPP65
KAHDDBWKPP80
