NOTE: If equipped with the optional carpeted storage tray as pictured in Fig.
17, remove at this time. The storage tray cannot be used in conjunction with
the subwoofer. The subwoofer by design provides an optional storage area
once it is installed.
19. Remove the outer rear seat bolt on the driver’s
side. Fig. 18

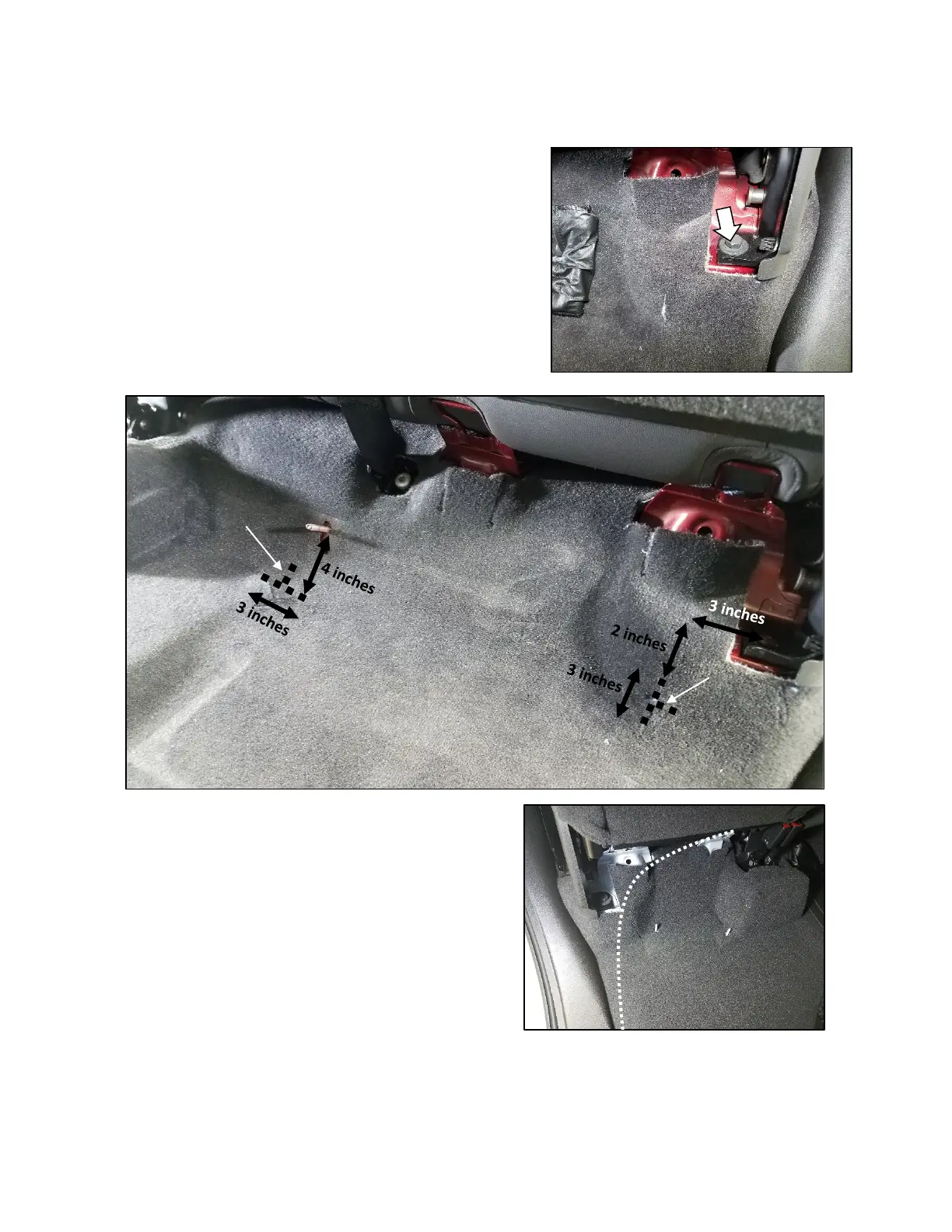

20. Make cuts in the carpet according to the
measurement in Fig. 19. Only make cuts where
dotted lines shown.
21. Remove the rear seatback. See Second Row
Seat Removal Section.
22. Route subwoofer harness and the amplifier
from passenger’s side to driver’s side under
carpet. Subwoofer harness should be routed
behind seat brackets. Routing from one precut
opening to the next will aid in harness routing.
Fig. 20
