Kicker Hideaway HS10 User Manual

4
Hideaway™

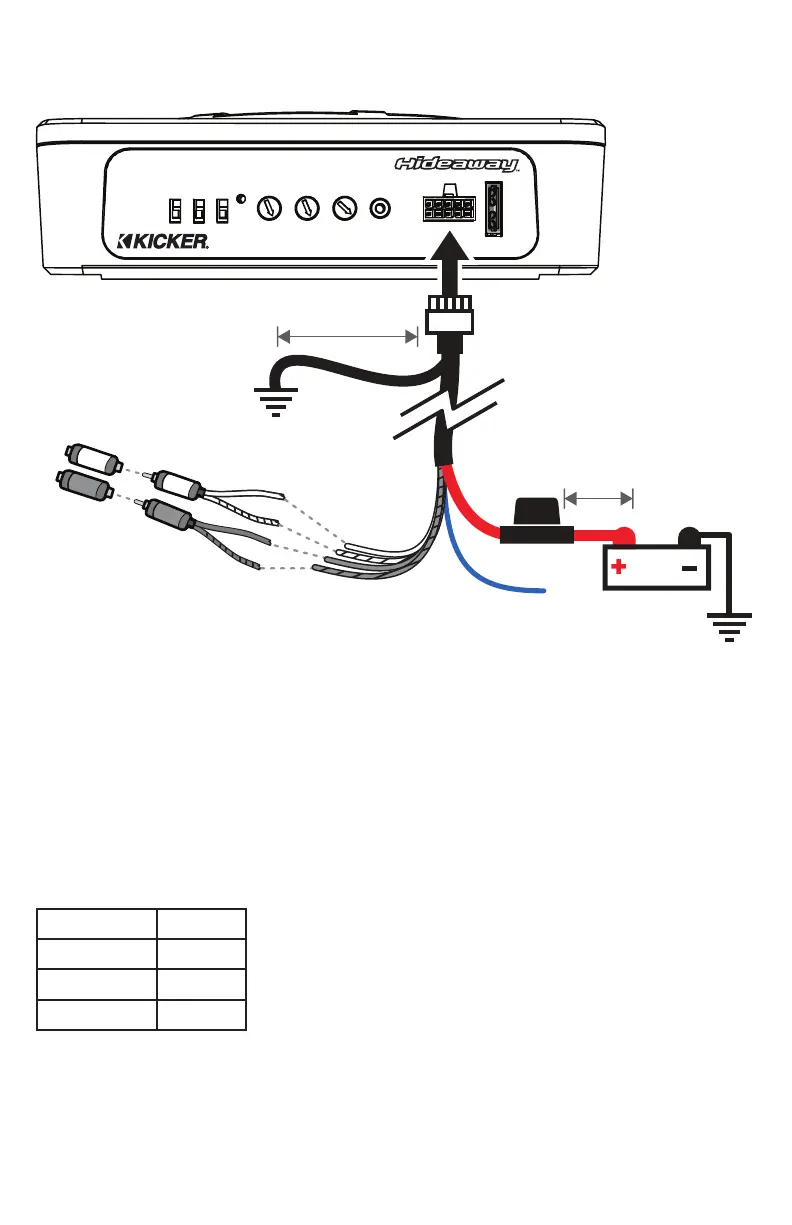

Wiring:
12V
AUTO
TURN
ON
INPUT
LEVEL
PHASE
PWR/
PRT
BASS
BOOST
X-OVER
FREQ GAIN
REMOTE
BASS
0 6 50 120 0 11
+12V
DC
HI
LO
0°
180°
L
+
-
R GND
46HS10 15A
REM +12V
quick-connect wiring
harness audio inputs:
White Left +
White/Black Left –
Grey Right +
Grey/Black Right –
remote turn-on
see next page
battery
bare metal
chassis ground
bare metal
chassis ground
≤ 24” [60cm]
quick-connect
wiring harness
15A fuse
≤18” [45cm] from positive
battery terminal
Observe the polarity of input connections to avoid signal loss.
Use the KICKER KISL for source units with RCA outputs or splice the quick-connect
harness leads directly to your source unit’s speaker-level outputs.
Do not use a Line Output Converter with the HS10.
KICKER KISL
(sold separately)
2019 Hideaway Rev E.indd 42019 Hideaway Rev E.indd 4 5/8/2019 2:26:32 PM5/8/2019 2:26:32 PM
