Kicker Hideaway HS10 - Remote Bass Control Installation

6
Hideaway™
AUTO
TURN
ON
INPUT
LEVEL
PHASE
PWR/
PRT
BASS
BOOST
X-OVER
FREQ GAIN
REMOTE
BASS
0 6 50 120 0 11
+12V
DC
HI
LO
0°
180°
L
+
-
R GND
46HS10 15A
REM +12V
REMOTE BASS CONTROL INSTALLATION

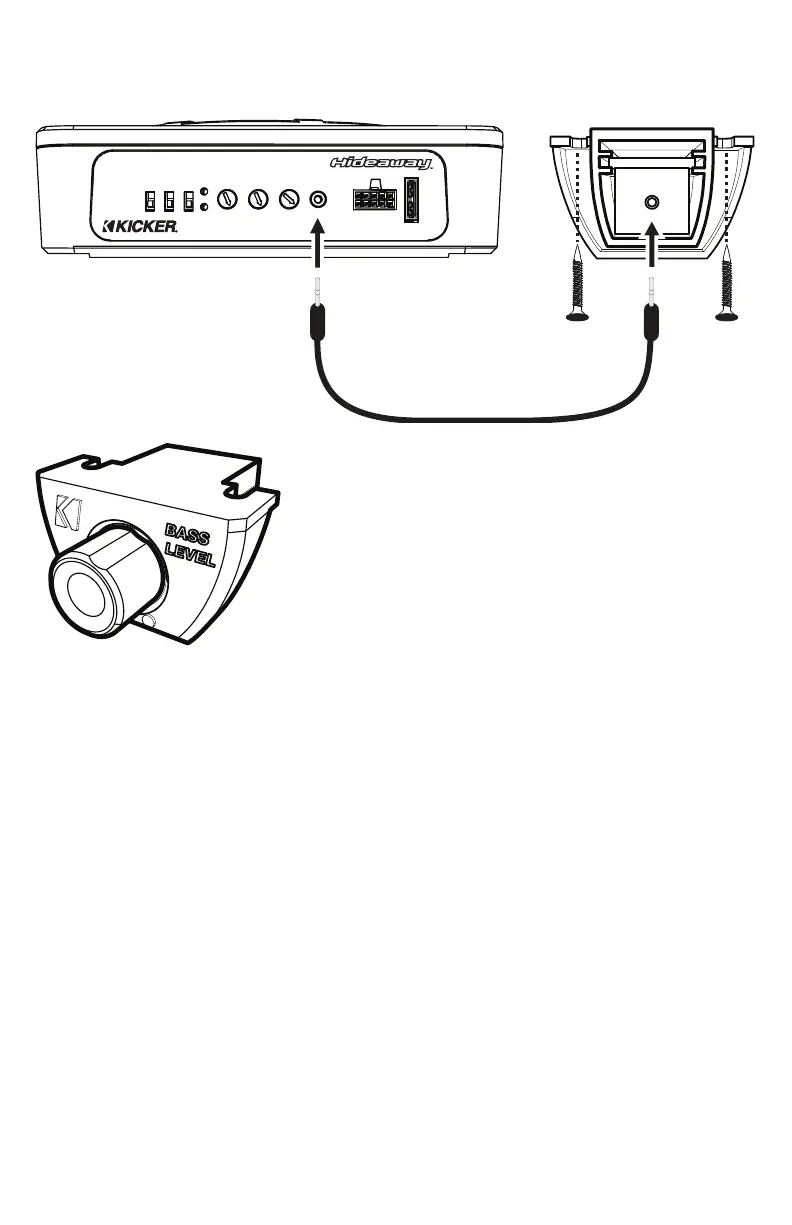

Surface-mount the CXARC remote
using the supplied screws.
back view
Remote cable passes audio; do not run
cable parallel to power wires.
Connect the supplied 1/8th inch
[3.5mm] patch cable to the CXARC
remote and the Remote Bass jack on
the amplifi er.
