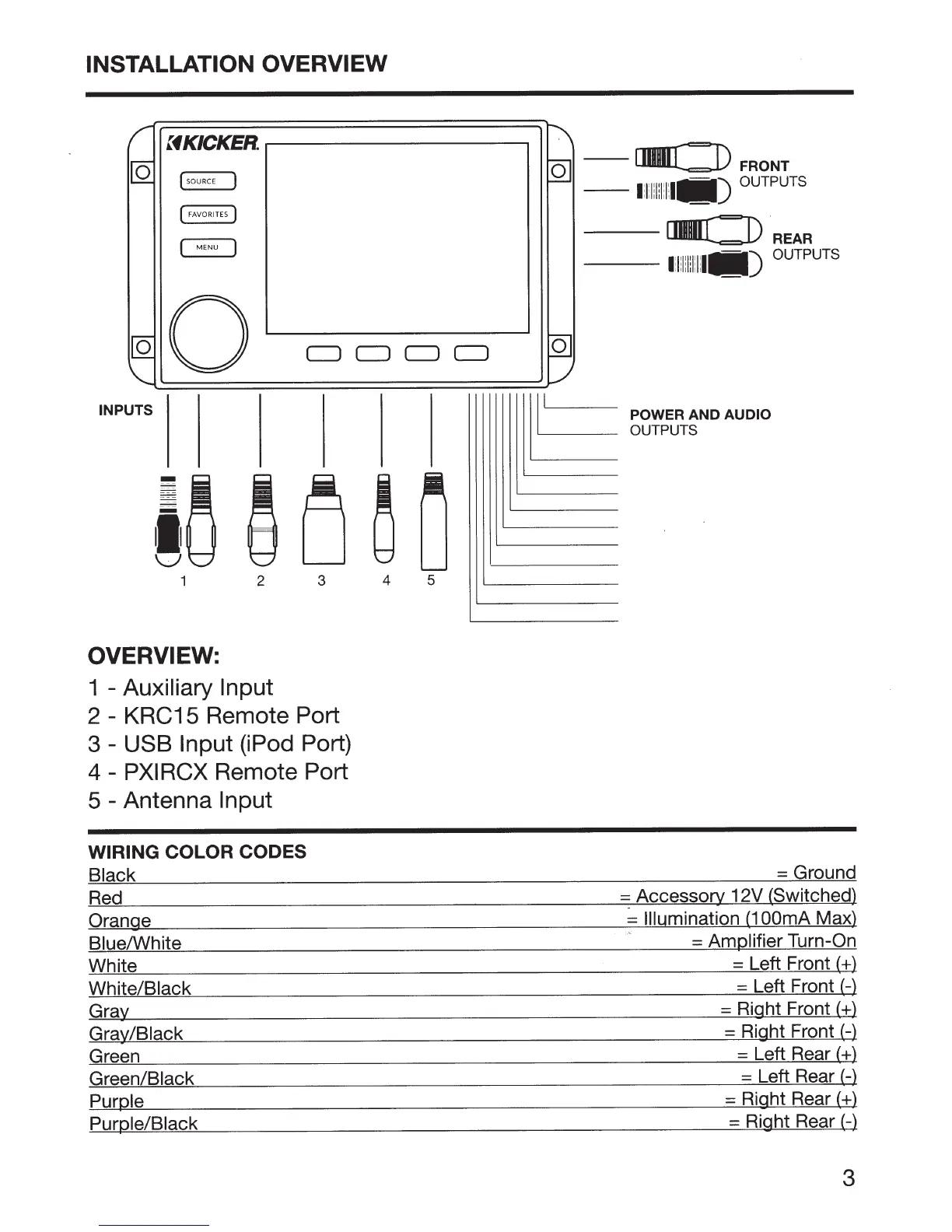

INSTALLATION OVERVIEW
~KICKER.~----------------~
(SOURCE
)
(
FAVORITES
)
( MENU )
CJ CJ
CJ
CJ
INPUTS
2
3
OVERVIEW:
1
-
Auxiliary Input
2 - KRC15 Remote Port
3 -
USB Input
(iPod Port)
4
-
PXI
RCX Remote Port
5-
Antenna
Input
WIRING
COLOR
CODES
Black
Red
Orange
Blue/White
White
White/Black
Gray
Gray/Black
Green
Green/Black
Purple
Purple/Black
4 5
---
nnnrr=D
REAR
---
lili
lilil
ili
l-)
OUTPUTS
II=
POWER
AND
AUDIO
~OUTPUTS
=Ground
=:
Accessory 12V (Switched)
= Illumination
(1
OOmA
Max)
,
=
Amplifier Turn-On
= Left Front
(+)
= Left Front
(-)
= Right Front
(+)
= Right Front
(-)
= Left Rear
(+)
= Left Rear(-)
= Right Rear(+)
= Right Rear
(-)
3
