Kicker KMC5 - KICKER KMC5 Installation Guide; Wiring Connections Diagram

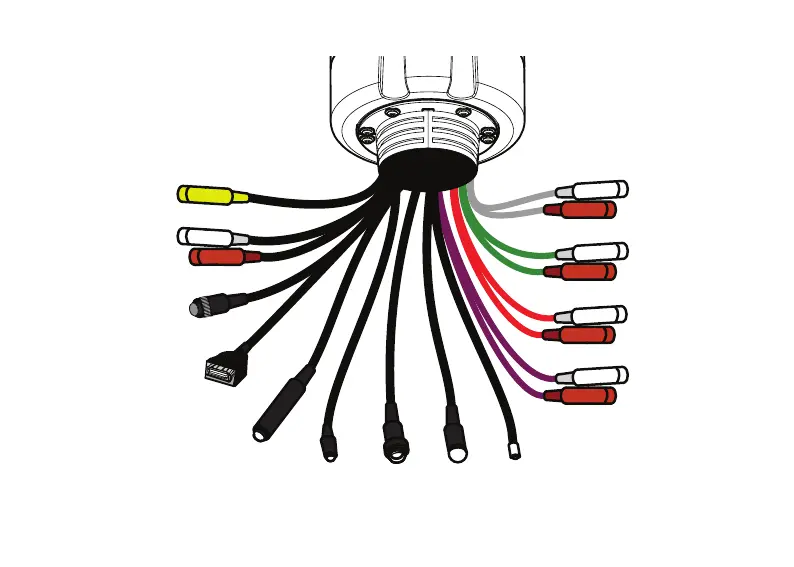

7
USB input
USB charging
front RCA out
(grey)
sub RCA out
(red)
rear RCA out
(green)
zone 2 RCA out
(purple)
AUX input
(black)
reverse camera/
video input
reverse trigger
remote
SiriusXM
®
port
digital
remote
NMEA
port
antenna
INSTALLATION
Remember to cap unused wires
and avoid electrical shorts!
