Kicker KSS269 - Midrange and Tweeter Mounting

11English
Midrange/Tweeter Mounting
The midrange/tweeter is flush-mounted and may
be installed using one of the included adapter
assemblies: Toyota/Subaru, Chrysler/Jeep,
GM/Mopar. Choose a flat location on the panel with
space behind the panel to allow room for the motor
structure, and tweeter. After checking the clearances,
cut a 1-3/4” (44mm) diameter mounting hole in the
panel. If using an adapter, place the adapter flange
against the surface. Feed the wire through the
adapter flange and the hole in the panel. Secure the
driver by screwing the supplied screws through the
adapter retainer, tweeter, and adapter flange.

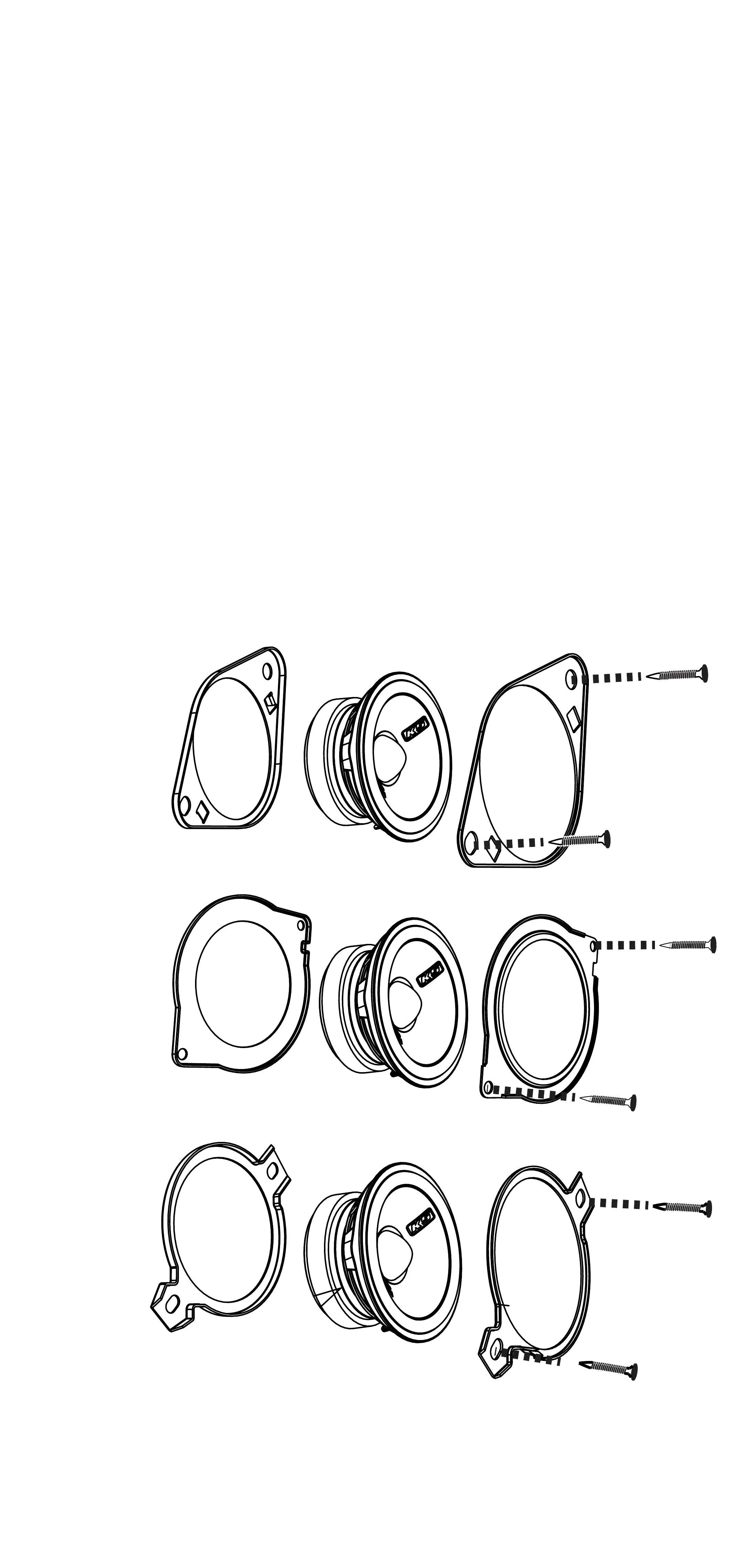

Toyota/Subaru
Chrysler/Jeep
GM/Mopar
flange retainer
