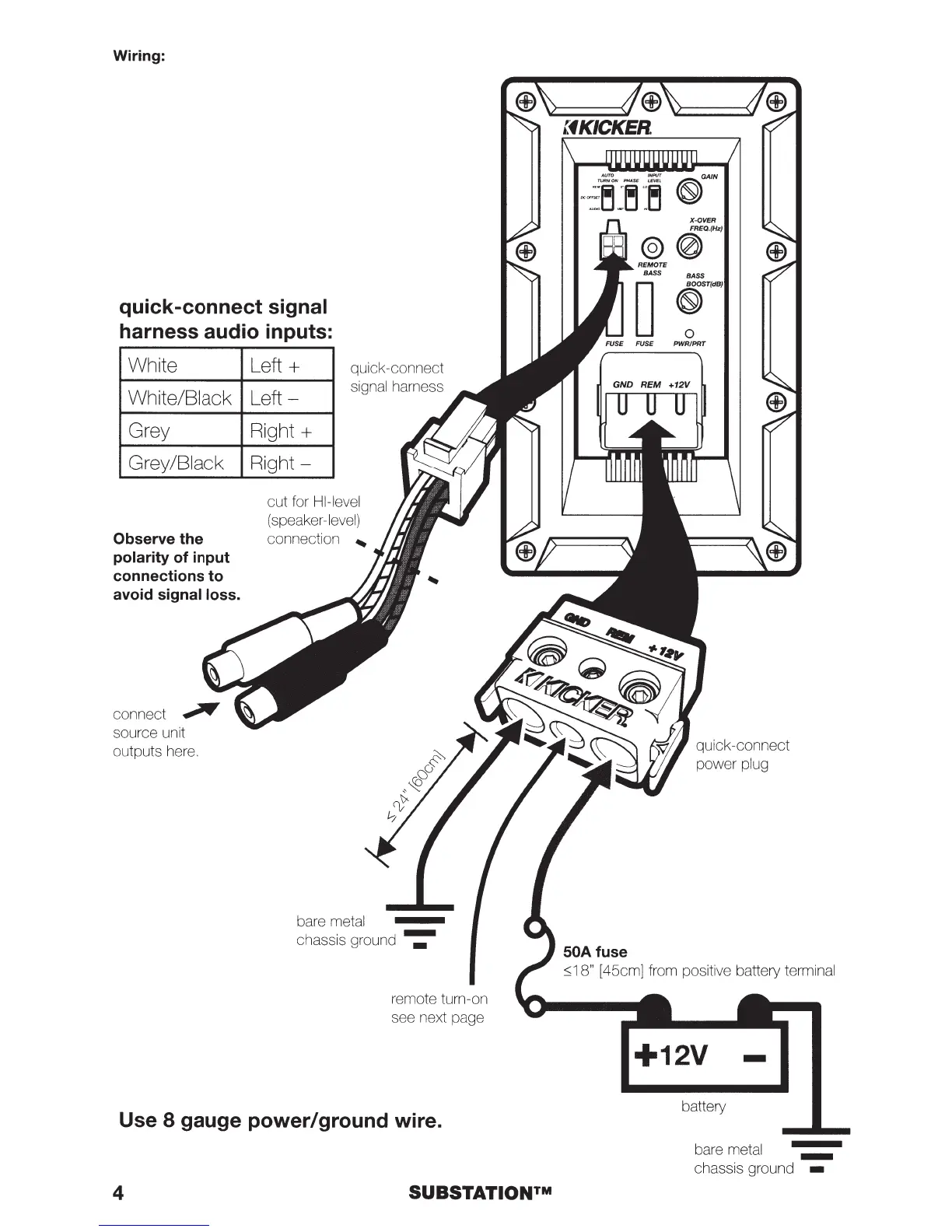

Wiring:
quick-connect signal
harness audio inputs:
White
Left+
White/Black Left -
quick-connect
signal harness
Grey
Grey/Black
Observe the
polarity of input
connections to
avoid signal loss.
source unit
outputs here.
Right+
Right-
cut for HI-level
(speaker-level)
bare metal
chassis ground
-:-
remote turn-on
see next page
Use 8 gauge power/ground wire.
4
SUBSTATION™
BASS
r§-'
0
PWR/PRT
quick-connect
power plug
~18"
[45cm] from positive battery terminal
+12V
-
battery
bare metal
-
chassis ground -
