Kicker SubStation PES10C User Manual

Fuses:
2
x
15 Amperes
AUTO
INPUT
GAIN
TURN
ON PHASE
LEVEL
~
REM~
0
'
~
LO~
DC
OFFSET
AUOIO 180' HI
X-OVER
FREQ.(Hz)
A
IW.I
@0
INPUT
15A
REMOTE
BASS
15A
BASS
®ST(dB)
0
PWRIPRT
GND
REM
+12V

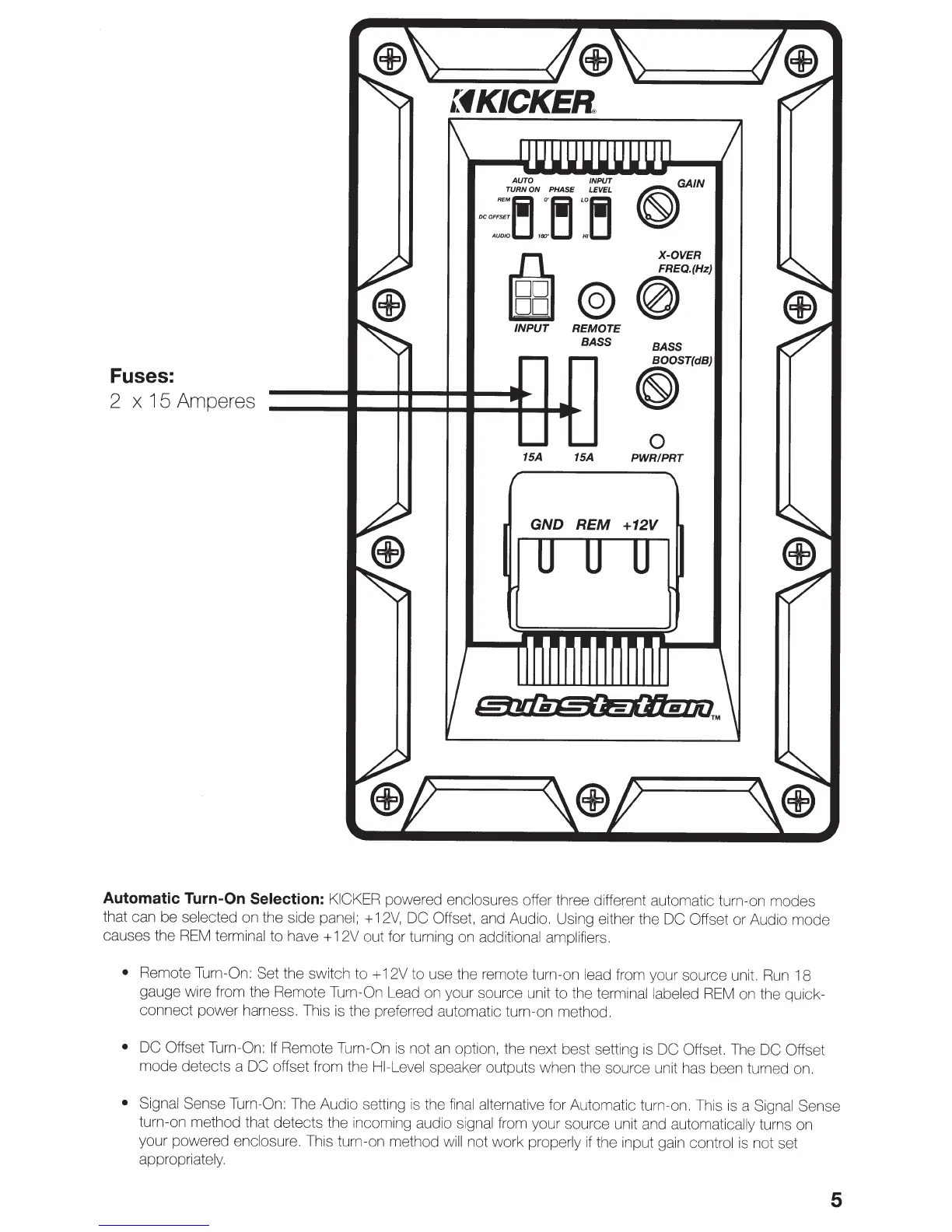

Automatic Turn-On
Selection:
KICKER
powered enclosures offer three different automatic turn-on modes
that can be selected on the side panel;
+
12V,
DC Offset, and Audio. Using either the DC Offset or Audio mode
causes the
REM
terminal to
have+
12V out for turning
on
additional amplifiers.
•
Remote Turn-On:
Set the switch to + 12V to use the remote turn-on lead from your source unit.
Run
18
gauge wire from the Remote Turn-On Lead
on
your source unit to the terminal labeled
REM
on the quick-
connect power harness. This
is
the preferred automatic turn-on method.
•
DC Offset Turn-On:
If
Remote Turn-On
is
not
an
option, the next best setting
is
DC Offset. The DC Offset
mode detects a DC offset from the
HI-Level
speaker outputs when the source unit has been turned on.
• Signal Sense
Turn-On: The Audio setting
is
the
final
alternative for Automatic turn-on. This
is
a
Signal Sense
turn-on method that detects the incoming audio signal from your source unit and automatically turns on
your powered enclosure. This turn-on method
will
not work properly
if
the input gain control
is
not set
appropriately.
5
