Kidde Fire Systems FM-200 ECS Series User Manual

3-9September 2004 90-FM200M-000
FM-200
®
ECS Series Engineered Fire Suppression Systems
3-3.4.3 CABLE OPERATED CONTROL HEAD,
P/N 979469
The Cable Operated Control Head is used for systems de-
signed for manual operation only. It mounts directly on top
of the FM-200 cylinder valve and is operated either remotely
from a cable manual pull station or locally using the manual
lever on the control head (see Figure 3-14).
LOCAL MANUAL RELEASE LEVER
SEAL WIRE
LOCKING PIN
DIRECTION OF
PULL
THREADED NUT -
3/8" NPS FOR PIPE
1/16" CABLE
3/8" PIPE (OR 1/2" EMT
WITH ADAPTER P/N
843837)
SWIVEL
NUT
1.50"
(38mm)
1-1/4"-18 NF-3
FEMALE
CLOSURE
DISC
CABLE CLAMP AND WHEEL ASSEMBLY
4.25"
5.25"
(108mm)
(133mm)

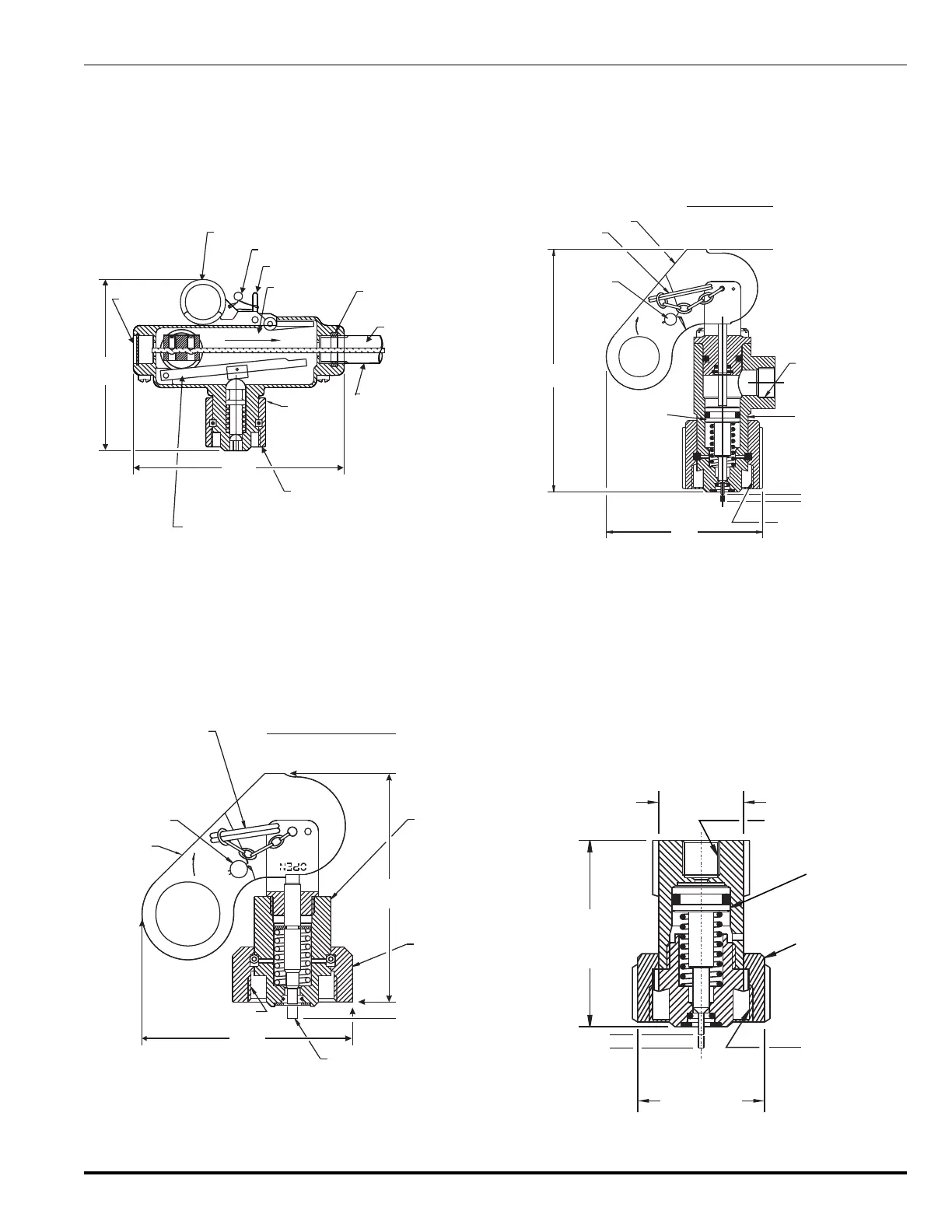

Figure 3-14. Cable Operated Control Head
3-3.4.4 LEVER OPERATED CONTROL HEAD,
P/N 870652
The Lever Operated Control Head is equipped with an op-
erating lever, secured in the closed position by a safety pull
pin. By removing the safety pin, the lever can be manually
rotated to the open position, thereby activating the cylinder
or valve on which it is installed (see Figure 3-15).
CLOSED
OPEN
TO
LOCKING PIN
SEAL WIRE
LEVER
BODY
SWIVEL
NUT
1.50"
(38 mm)
1-1/4"-18 NF-3
FEMALE
3.17"
3.00"
(81 mm)
(76 mm)
ALLOW APPROX. 2" (50 mm)
CLEARANCE FOR
OPERATION OF LEVER
SET
OPERATED
STEM
Figure 3-15. Lever Operated Control Head
3-3.4.5 LEVER/PRESSURE OPERATED CONTROL
HEAD, P/N 878751
The Lever/Pressure Operated Control Head allows manual
or pressure actuation of several system components, in-
cluding FM-200 cylinder valves and nitrogen actuators (see
Figure 3-16).
CLOSED
OPEN
TO OPEN
ALLOW APPROX. 2" (50.8 mm)
CLEARANCE FOR
OPERATION OF LEVER
LEVER
SAFETY PIN
SEAL WIRE
PISTON
BODY
1/8" NPT PRESSURE
INLET
SET
OPERATED
1.250-18 UNEF-3B
4.50"
(114.3 mm)
3.00"
(76.2 mm)
Figure 3-16. Lever/Pressure Operated Control Head
3-3.4.6 PRESSURE OPERATED CONTROL HEAD,
P/N 878737 AND P/N 878750
The Pressure Operated Control Head, P/N 878737, allows
for pressure actuation of FM-200 cylinders and is mounted
directly on top of the FM-200 cylinder valve (see Figure
3-17). The pressure operated control head, P/N 878750,
offers a stackable design and is used where an electric/
mechanical control head actuation is also required on the
same cylinder (see Figure 3-18).
1.250-18
UNEF-3B
SWIVEL NUT
PISTON
1/8"-27 NPT
PRESSURE INLET
SET
OPERATED
2.19"
(55.6 mm)
1.50" HEX
(38 mm)
1.00" HEX
(25.4 mm)
Figure 3-17. Pressure Operated Control Head
