Kidde Fire Systems FM-200 ECS Series User Manual

3-890-FM200M-000 September 2004
FM-200
®
ECS Series Engineered Fire Suppression Systems
The Stackable Control Head (P/N 486500-01) is rated for
use in hazardous (classified) locations Class 1, Div 1,
Groups C, D, and Class II, Div II, Groups E, F and G be-
tween -40°F to 130°F (-40°C to 54°C). Use conduit seal
within 18 in. (450 mm) of this device.
5.28"
2.90”
1.25-18 UNEF-2A
CONNECTION
1/2"-14 NPT
CONDUIT
CONNECTION
(3) 18 AWG-LEADS
18” (457.2 mm) LONG
SWIVEL NUT
1.25-18UNEF-2B
CONNECTION
(76.33 mm)
(134.11 mm)

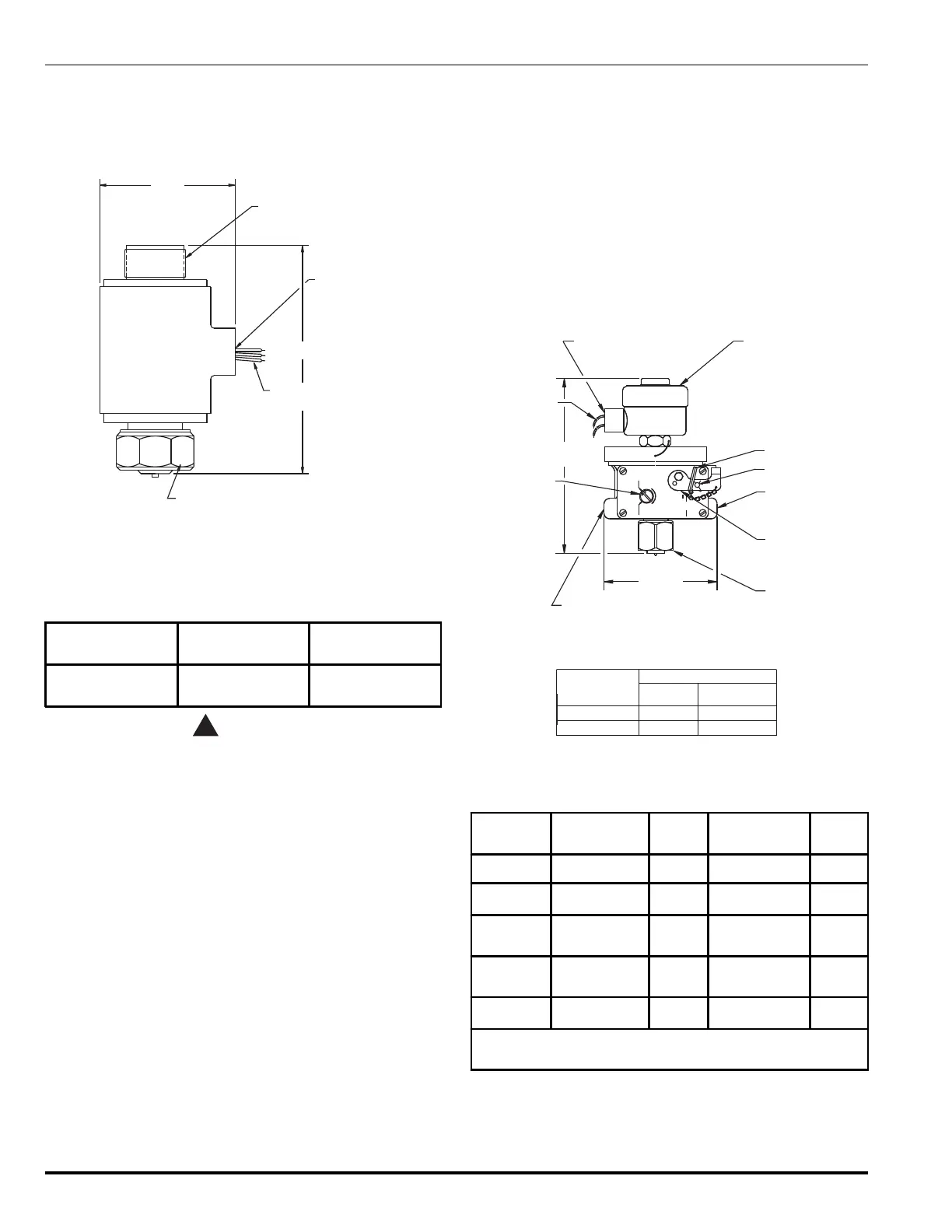

Figure 3-12. Electric Control Head, Stackable
Table 3-10. Electric Control Head, Stackable
(Explosion Proof)
Part Number Voltage Amps
486500-01 24 Vdc 0.2 continuous
CAUTION
!
Electric Control Head, P/N 486500-01, is
designed for installation directly on Kidde
FM-200 ECS cylinder valves only. This control
head must not be installed on any other type
of FM-200 cylinder valve, nitrogen valve or
carbon dioxide cylinder valve. Installation of
this control head on any other device (for
example, a pressure operated control head)
will result in failure of the device when the
control head is actuated.
3-3.4.2 ELECTRIC/CABLE OPERATED
CONTROL HEADS, P/N 895630,
P/N 895627, P/N 897494,
P/N 897560 AND P/N 897628
The electric/cable operated control head mounts directly
on top of the FM-200 cylinder valve and provides for both
electric actuation or remote cable operation. The control
head is operated remotely by an electrical signal from a
detection system or electric manual pull station. The con-
trol head can also be operated mechanically from a re-
mote cable operated manual pull station or locally using
the manual lever on the control head (see Figure 3-13
and Table 3-11).
SET RELEASED
TO RESET
USE SCREWDRIVER
FOR
MAINTENANCE
SEE
INSTRUCTIONS
CABLE
PULL
PU
OPERATING SOLENOID
U.L. LISTED FOR USE IN
THE FOLLOWING HAZARDOUS
LOCATIONS:
CLASS GROUP OP. TEMP.
IC
CONNECTION FOR FLEXIBLE
ELECTRIC CONDUIT 1/2" NPT
FEMALE
CONNECTING WIRES
36" (914 mm) LONG
7.375
INDICATOR AND
RESET STEM
(187 mm)
4.937
(125 mm)
LOCKING PIN
SEAL WIRE
CONNECTION FOR
REMOTE PULL BOX
PIPE OR CONDUIT
3/8" NPS MALE
LOCAL MANUAL
RELEASE LEVER
SWIVEL NUT
1.500 (38 MM) HEX
1.250-18 NF-3 THREAD
CONNECTION FOR CABLE
HOUSING TO SECOND
CONTROL HEAD IF USED
3/8" NPS FEMALE.
USE PNEUMATIC CONTROL
HEAD CABLE HOUSINGS
ELECTRIC
CONTROL
HEAD
PART NO.
MADE IN U.S.A.
KIDDE-FENWAL, INC.
400 MAIN STREET
ASHLAND, MA 01721
VOLTS
HZ AMPS
-13 TO +150F
(-25 TO +65C)
ID
(-40 TO +65C)
-40 TO +150F
II E,F,G
-40 TO +150F
(-40 TO +65C)
PART
NUMBER
CONTROL HEAD
VOLTAGE
POWER
CONSUMPTION
897494 24 Vdc 33 WATTS
897560
120 Vac
15.4
WATTS
Figure 3-13. Electric/Cable Operated Control Head
Table 3-11. Electric/Cable Operated Control Heads
Part
Number
Type Voltage Amps Rating
895630 Standard 24 Vdc 2.0 momentary N/A
895627
(a),(b)
Standard 115 Vac 1.0 momentary N/A
897494 Explosion Proof 24 Vdc 1.65 continuous
33.0
Watts
897560
(a),(b)
Explosion Proof 115 Vac 0.13 continuous
15.4
Watts
895628
(b)
Standard 125 Vdc 0.3 momentary N/A
(a) Not FM Approved for use with FM-200 Systems
(b) Not UL Listed for use with FM-200 Systems
