Kidde Fire Systems FM-200 ECS Series

5-5September 2004 90-FM200M-000
FM-200
®
ECS Series Engineered Fire Suppression Systems
5.0
10.0
15.0
20.0
25.0
30.0
250 300 350 400 450 500 550 600
FM-200 Weight (lb.)
Flexible Tape Reading (inches)
130°F
100°F
70°F
30°F

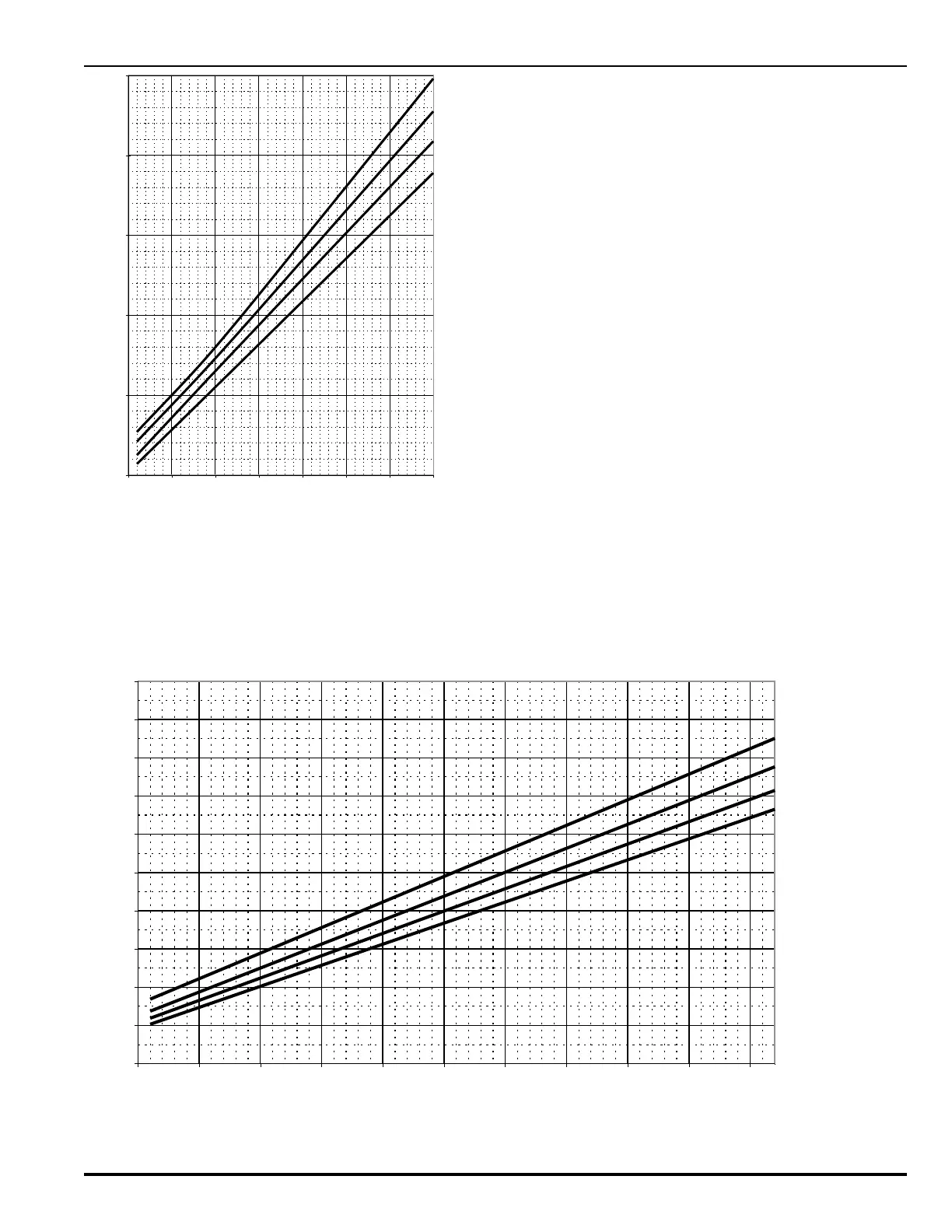

Figure 5-6. Calibration Chart for 600# Cylinder
130°F (54°C)
100°F (38°C)
70°F (21°C)
30°F (-1°C)
0
4
8
12
16
20
24
28
32
36
40
380 430 480 530 580 630 680 730 780 830 880
FM-200 Weight (lb.)
Flexible Tape Reading (inches)
Figure 5-7. Calibration Chart for 900# Cylinder
