MANUAL ACTIVATION SWITCH (421317)
The Manual Activation Switch allows immediate system activation (extinguisher discharge and
engine shutdown) by the vehicle operator at any time. Activation of the switch is accomplished
by twisting and pulling the tamper seal (not shown) to remove, lifting the cover and pressing the
red “FIRE” button for more than half a second. After the Manual Activation Switch has been
activated, the Protection Panel’s FIRE ALARM indicator will blink until power has been cycled to
the system.

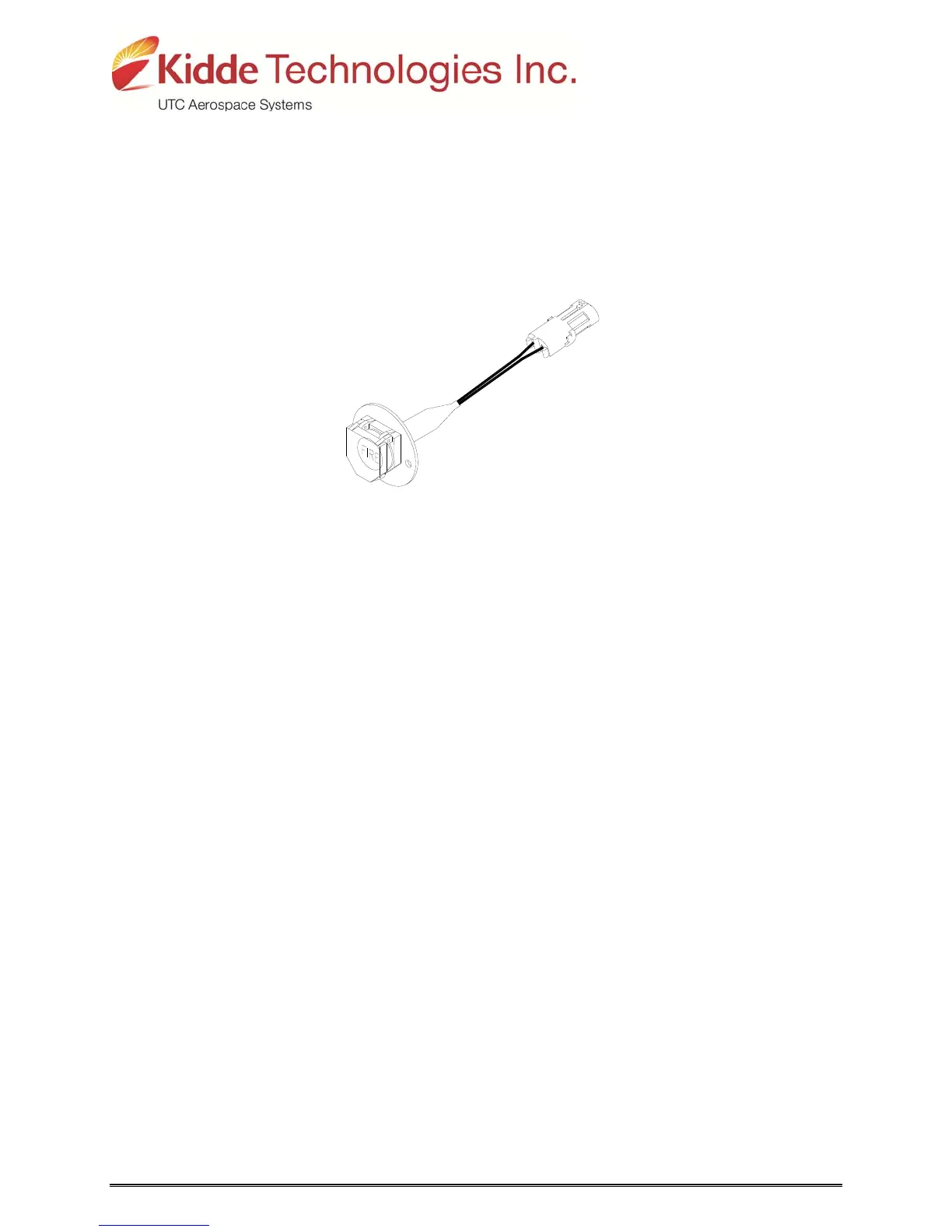

FIGURE 3 – MANUAL ACTIVATION SWITCH
(Depicted without Tamper Seal)
